LIFT LINE SERIES

BRIGHT BETA 10K

Name: BRIGHT BETA 10K
Brand: Bright North America
Availability: InStock

10,000 lb. overhead two-post lift with asymmetric arms and single-side lock release, built for daily shop use.

Top connection two post direct drive lift

10000 LB

WHERE TO BUY DOWNLOAD BROCHURE

View full details

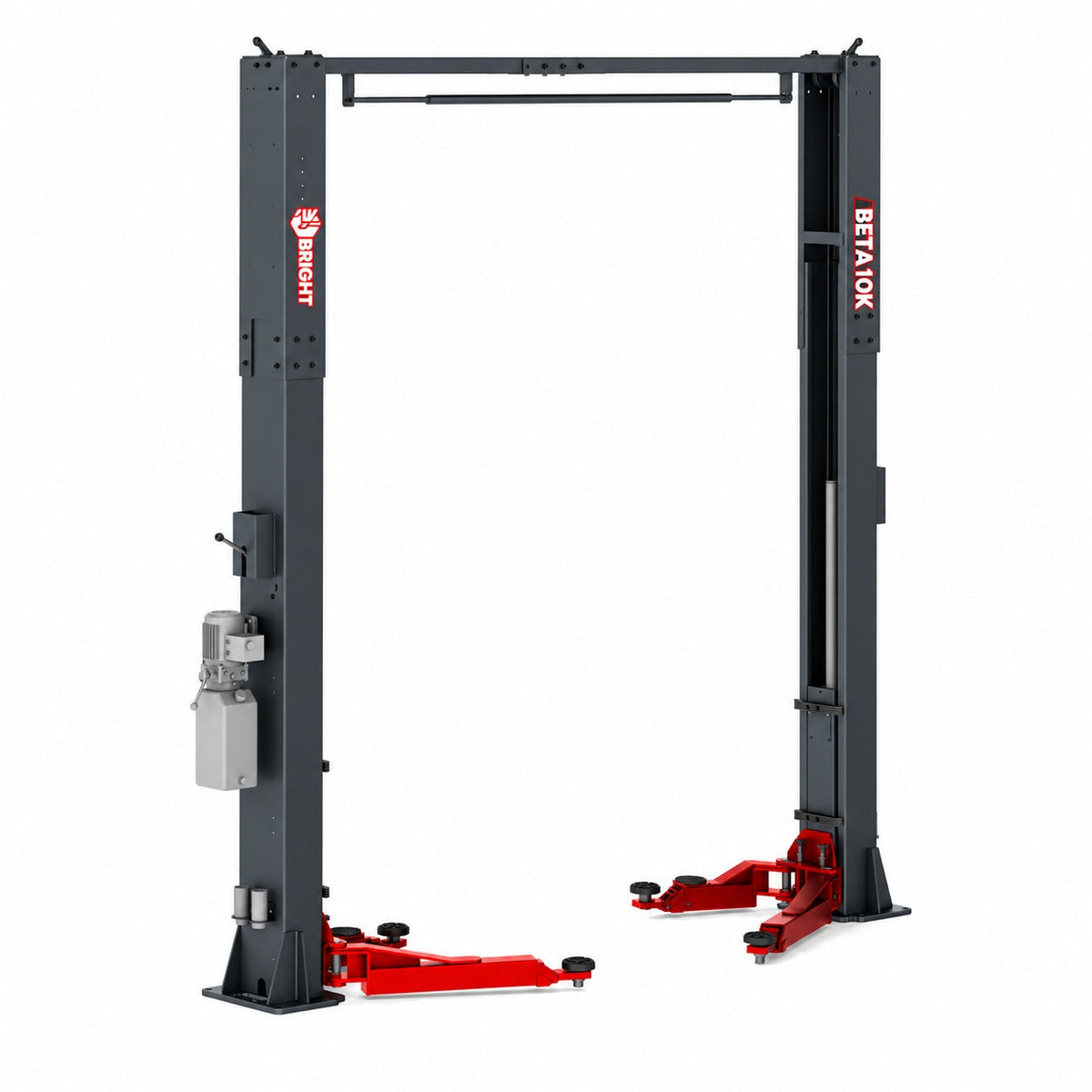

BRIGHT BETA 10K

The Bright Beta 10K is a 10,000 lb. overhead two-post lift built for shops that lift everything from compact cars to half-ton pickups every day. Its adjustable 145"–149" height and 106" of drive-through clearance leave room for taller vehicles.

Asymmetric 2+3 stage arms position the vehicle so doors open without hitting the columns, and a single-side lock release frees both locks from one column. Two direct-drive cylinders keep lifting smooth and even, while the extra-long carriage and reinforced arms resist flexing under heavy loads. An overhead height-limit switch stops the lift before a tall vehicle reaches the beam.

Large 4.5" pulleys reduce cable wear, and quick-change slider blocks keep maintenance simple. Contact an authorized Bright distributor to see the Beta 10K in person.

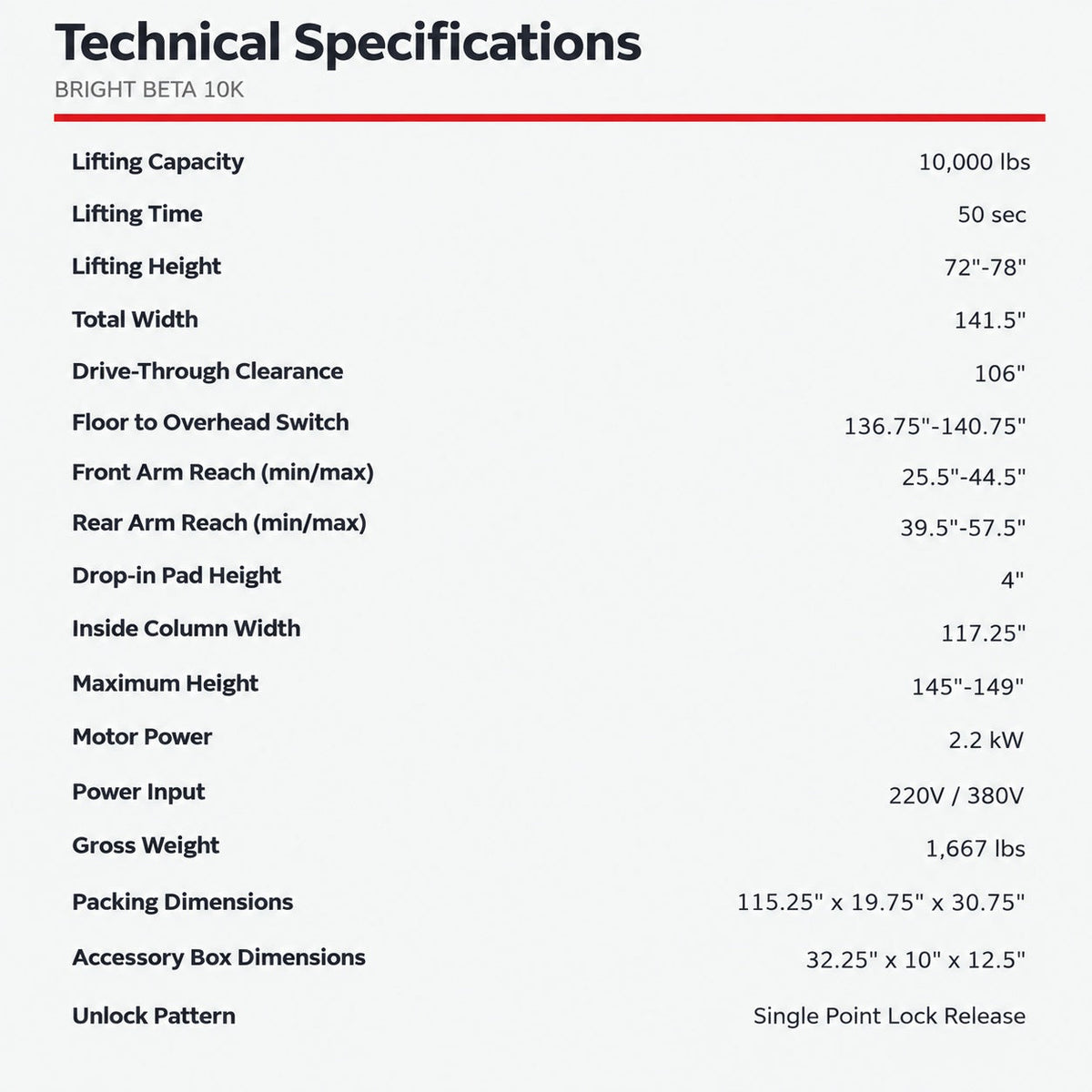

Technical Data

Lifting Capacity

10,000 lbs

Lifting Time

50 sec

Lifting Height

72"–78"

Drive-Through Clearance

106"

Front Arm Reach (Min/Max)

25.5"–44.5"

Rear Arm Reach (Min/Max)

39.5"–57.5"

Drop-In Pad Height

Total Width

141.5"

Floor to Overhead Switch

136.75"–140.75"

Inside Column Width

117.25"

Maximum Height

145"–149"

Motor Power

3 HP

Power Input

220V

Shipping Weight

1,667 lbs

Packing Dimensions

115.25" × 19.75" × 30.75"

Accessory Box Dimensions

32.25" × 10" × 12.5"

Unlock Pattern

Single-side lock release

Asymmetric 2+3 stage arms set the vehicle back so doors open easily.

Single-side lock release frees both locks from one column.

Overhead height-limit switch stops the lift before the roof hits the beam.

Room for tall vehicles, with adjustable 145"–149" height and 106" drive-through.
