LIFT LINE SERIES

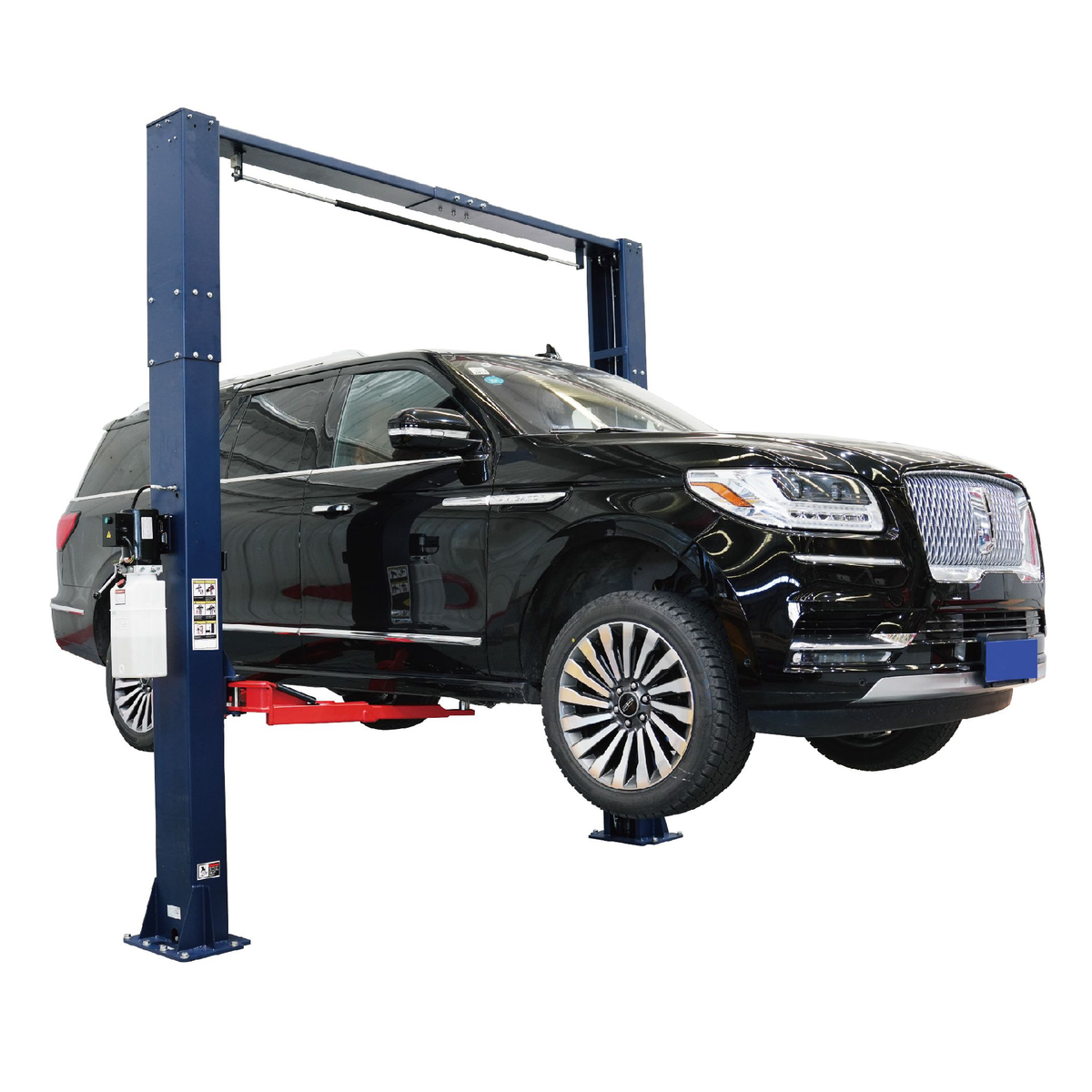

BRIGHT BETA-9C
BRIGHT BETA-9C
Top connection
two post chain drive lift
9000
LB
H 142" W 115.75"
2 COLUMNS POST LIFT HIGH PASSAGE 142" 9000lbs
BETA-9C
1

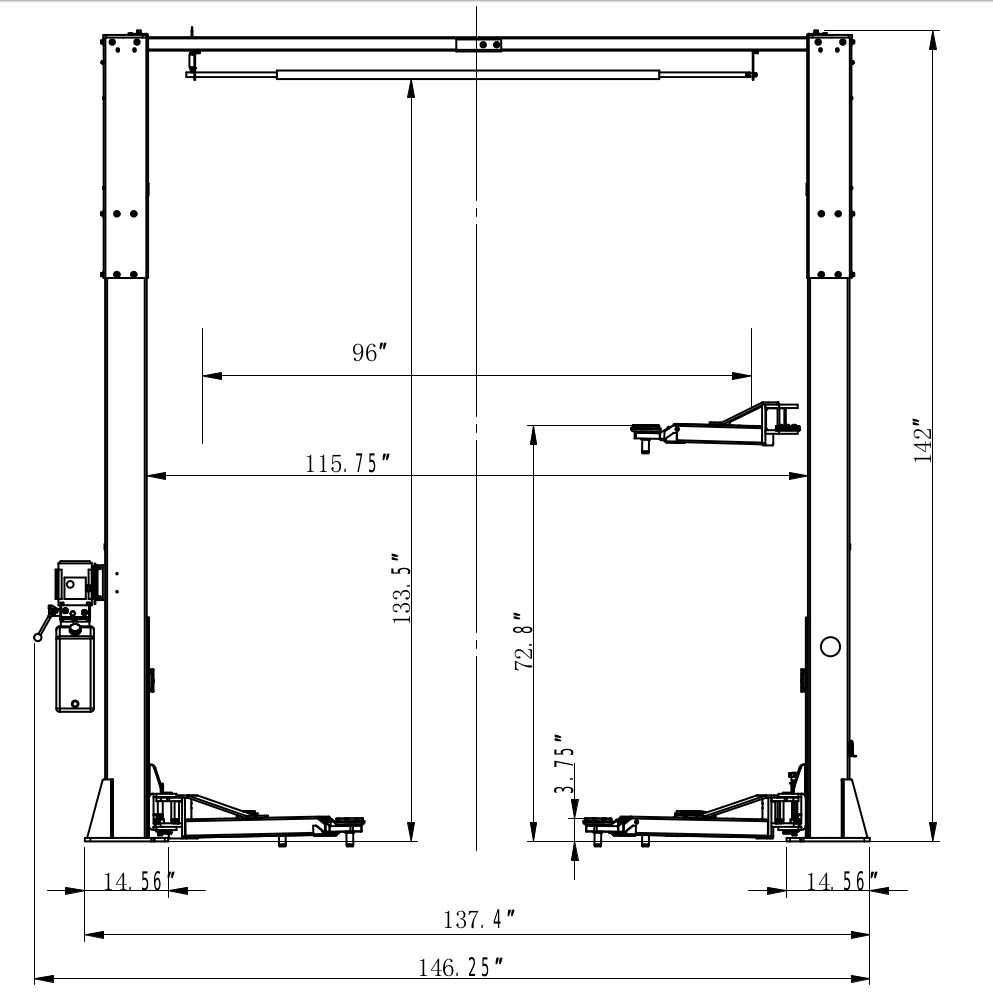

Line Drawing
Technical Data
Lifting capacity
9000LBS
Lifting time
50s
Lifting height
72.8"
Total Width
146.25"
Drive-Through Clearance
96"
Floor to Overhead Switch
133.5"

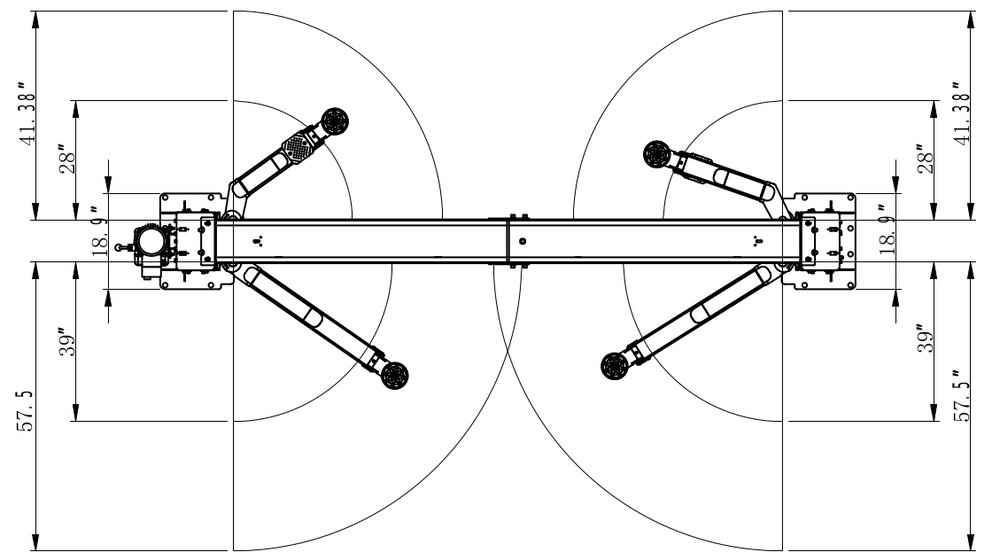

Front Arm Reach (min/max)
28"-41.38"
Rear Arm Reach (min/max)
39"-57.5"
Drop-in Pad Height
3.75"
Inside Column Width
115.75"
Maximum Height
142"
Motor Power
3HP
Power Input
220V
Gross Weight
1500lbs
Packing Dimensions
115"L×20"W×28.5"H
Accessory Box Dimensions
32.25"×10"×12.5"
Unlock pattern
Manual release from two side
High strength extra long carriage design, the overall 14MM plate bending
Lifting arm with strengthening design, prevent deformation
The slider block has quick change function, convenient for maintenance
With diameter 115mm steel rope pulley, preventing steel rope wear out, for more smooth operation
Equipped with the height limit Microswitch as standard
Asymmetric arm design for easier entry into the vehicle
