LIFT LINE SERIES

BRIGHT BETA 9K

Name: BRIGHT BETA 9K
Brand: Bright North America
Availability: InStock

9,000 lb. overhead two-post lift with asymmetric arms, single-side lock release, and 105" drive-through.

Top connection two post direct drive lift

9000 LB

WHERE TO BUY DOWNLOAD BROCHURE

View full details

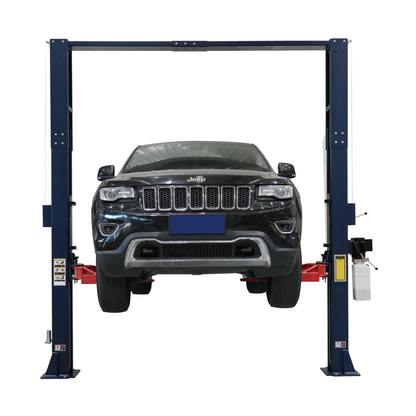

BRIGHT BETA 9K

The Bright Beta 9K is a 9,000 lb. overhead two-post lift that delivers professional features at a price that makes sense for smaller shops and serious home garages. Its adjustable 145"–149" height and 105" of drive-through clearance leave plenty of room to work.

Two direct-drive cylinders provide smooth, even lifting, and an extra-long carriage with reinforced arms stands up to daily use. Asymmetric 2+3 stage arms let technicians set vehicles back between the columns so doors open easily. A single-side lock release frees both locks from one column, and the overhead height-limit switch stops the lift before a tall vehicle reaches the beam.

Large 4.5" pulleys reduce cable wear, and quick-change slider blocks make maintenance simple. Contact an authorized Bright distributor to see the Beta 9K in person.

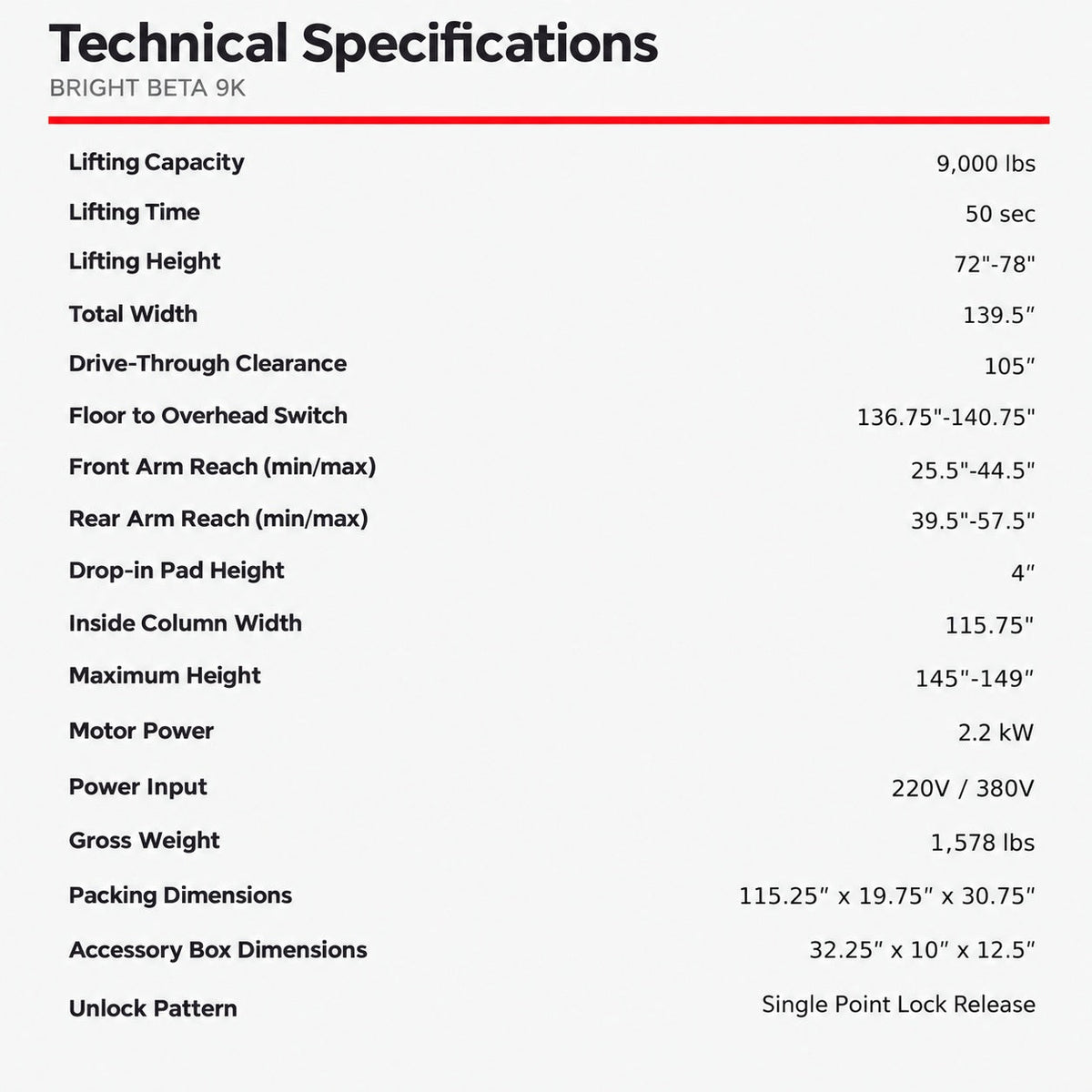

Technical Data

Lifting Capacity

9,000 lbs

Lifting Time

50 sec

Lifting Height

72"–78"

Drive-Through Clearance

105"

Front Arm Reach (Min/Max)

25.5"–44.5"

Rear Arm Reach (Min/Max)

39.5"–57.5"

Drop-In Pad Height

Total Width

139.5"

Floor to Overhead Switch

136.75"–140.75"

Inside Column Width

115.75"

Maximum Height

145"–149"

Motor Power

3 HP

Power Input

220V

Shipping Weight

1,578 lbs

Packing Dimensions

115.25" × 19.75" × 30.75"

Accessory Box Dimensions

32.25" × 10" × 12.5"

Unlock Pattern

Single-side lock release

Asymmetric 2+3 stage arms set the vehicle back so doors open easily.

Single-side lock release frees both locks from one column.

Overhead height-limit switch stops the lift before the roof hits the beam.

Pro features at a smart price: direct-drive cylinders and 105" drive-through clearance.
