BRIGHT KAPPA 8H
The Bright Kappa 8H is an extra tall, wide, and long 8,000 lb. four-post lift for parking, storage, and service. With 78" of clearance under the runways, a taller vehicle can park underneath.
86.5" between the columns and 185.5" runways make room for full-size trucks and SUVs on top. Commercial-grade runways provide a stable platform, and a built-in track accepts sliding bridge jacks and oil drip trays. A single-point lock release disengages all four column locks at once, backed by a cable-break safety lock system.
A mobile kit makes it easy to move the lift when the floor space is needed. Contact an authorized Bright distributor to see the Kappa 8H in person.

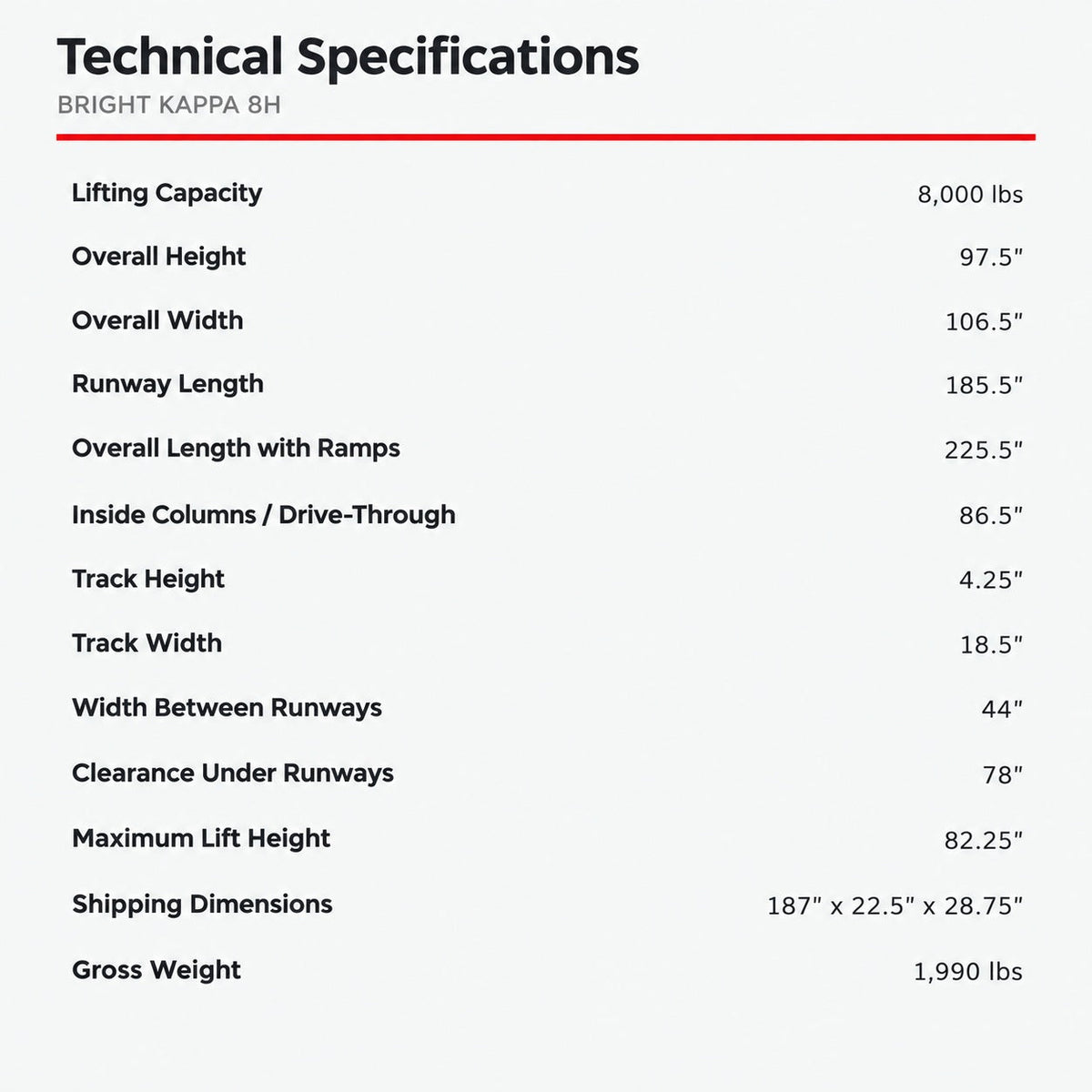

Technical Data
Lifting Capacity
8,000 lbs
Clearance Under Runways
78"
Max Lift Height
82.25"
Track Height
4.25"
Overall Height
97.5"
Overall Width
106.5"
Runway Length
185.5"
Overall Length (with Ramps)
225.5"
Inside Columns / Drive-Through
86.5"
Track Width
18.5"
Width Between Runways
44"
Shipping Dimensions
187" × 22.5" × 28.75"
Shipping Weight
1,990 lbs

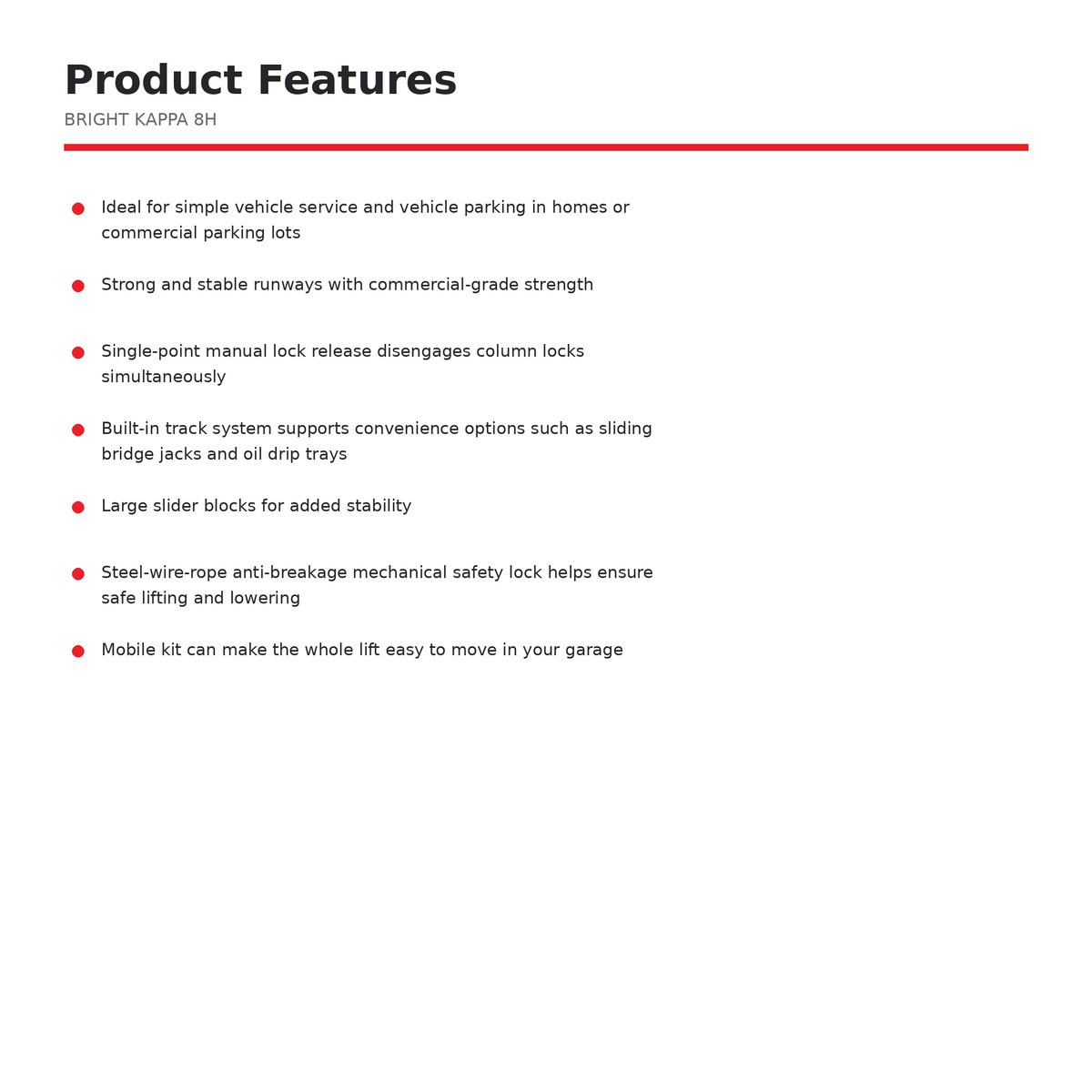

Room to park a taller vehicle underneath, with 78" of clearance under the runways.
Fits bigger vehicles, with 86.5" between columns and 185.5" runways.
Built-in track for sliding bridge jacks and oil drip trays.
Mobile kit and single-point lock release make it easy to move and operate.
