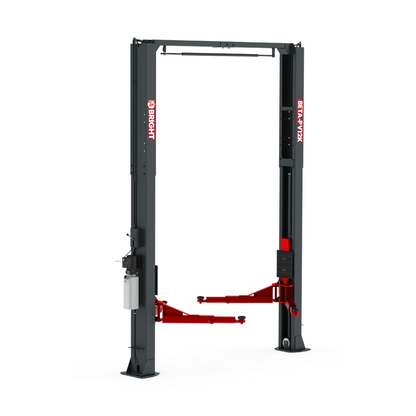

BRIGHT BETA 12K
The Bright Beta 12K is a 12,000 lb. overhead two-post lift for heavier vehicles, including full-size pickups, vans, and SUVs. A wide 123.7" between the columns and 110.5" of drive-through clearance give big vehicles room to fit.
Heavy-duty columns, carriages, and arms are built for demanding shop work, and anti-swing arm locks hold the arms in place once the vehicle is set. Single-step lift pads come with 2" and 3.9" extensions to reach high frame points on trucks and vans, and the one-side lock release keeps operation simple.
The overhead height adjusts to 149.9", 164.9", or 176.9" to fit the ceiling, and the lift raises vehicles to 78.4". Contact an authorized Bright distributor to see the Beta 12K in person.

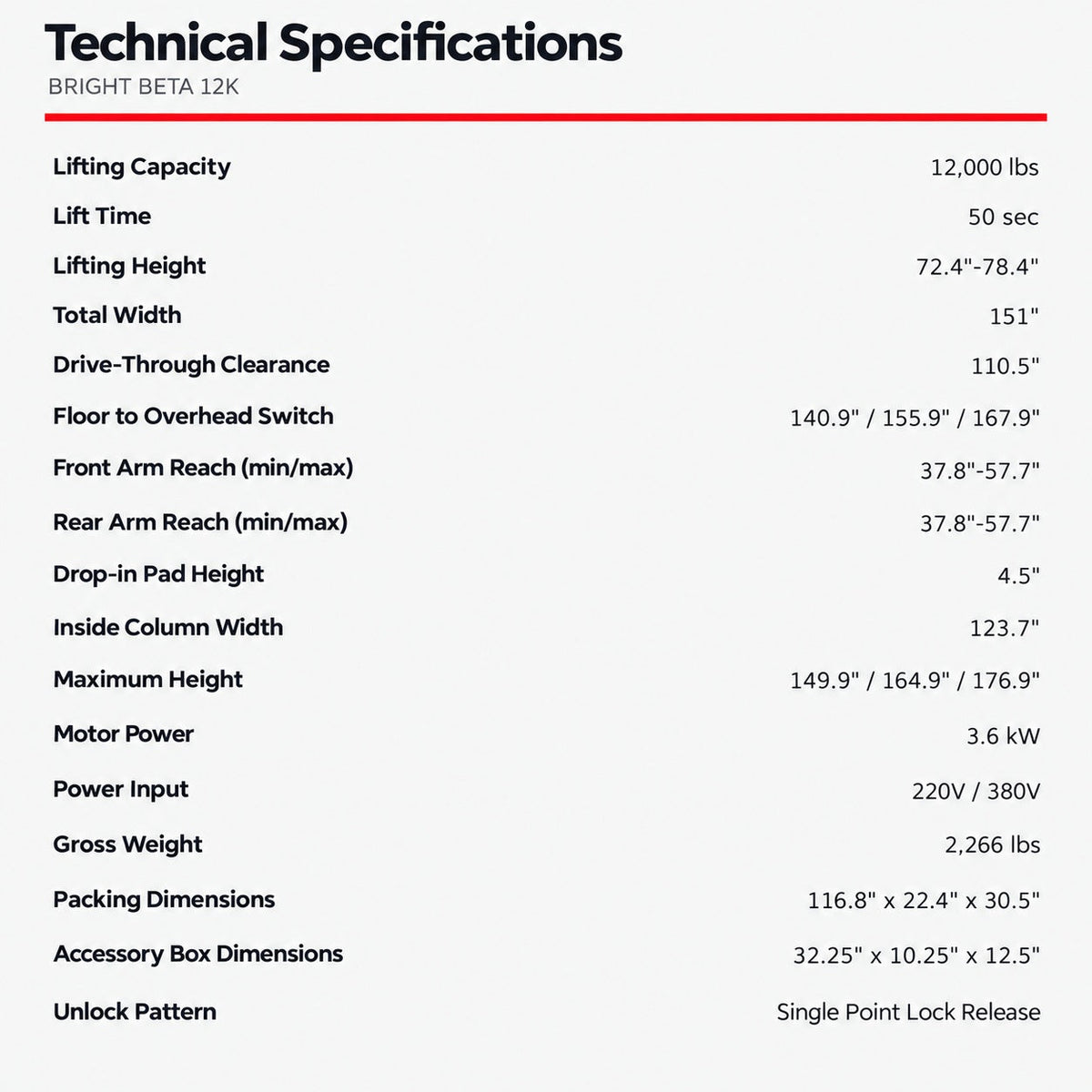

Technical Data
Lifting Capacity
12,000 lbs
Lift Time
50 sec
Lifting Height
72.4"–78.4"
Drive-Through Clearance
110.5"
Front Arm Reach (Min/Max)
37.8"–57.7"
Rear Arm Reach (Min/Max)
37.8"–57.7"
Drop-In Pad Height
4.5"

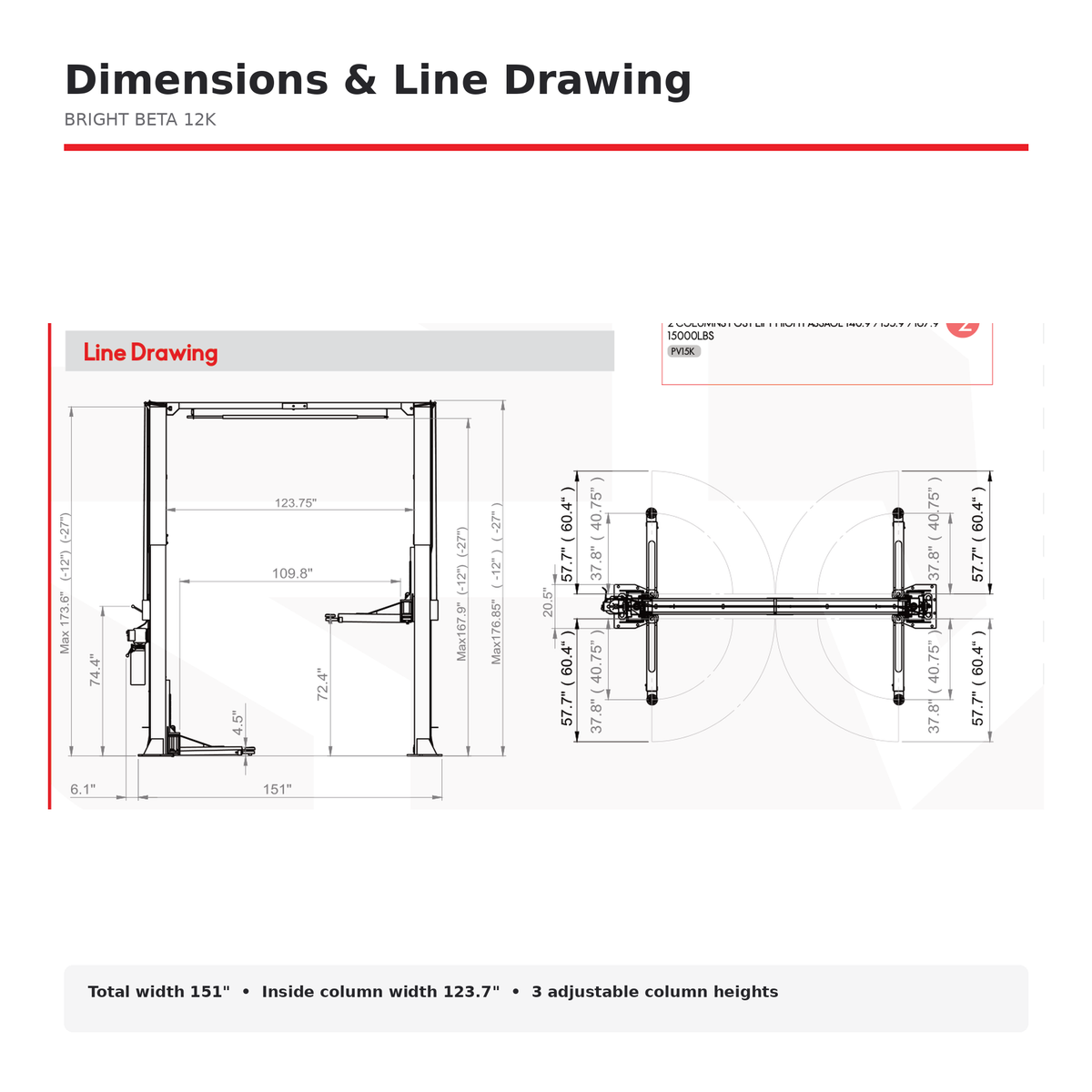

Total Width
151"
Inside Column Width
123.7"
Floor to Overhead Switch
140.9" / 155.9" / 167.9"
Maximum Height
149.9" / 164.9" / 176.9"
Motor Power
4.8 HP
Power Input
220V
Shipping Weight
2,266 lbs
Packing Dimensions
116.8" × 22.4" × 30.5"
Accessory Box Dimensions
32.25" × 10.25" × 12.5"
Unlock Pattern
Single-side lock release
12,000 lb. capacity built for full-size pickups, vans, and SUVs.
Wide 123.7" between columns with 110.5" drive-through for big vehicles.
Reaches high frame points with included 2" and 3.9" pad extensions.
Fits the ceiling, with adjustable overhead height up to 176.9".
