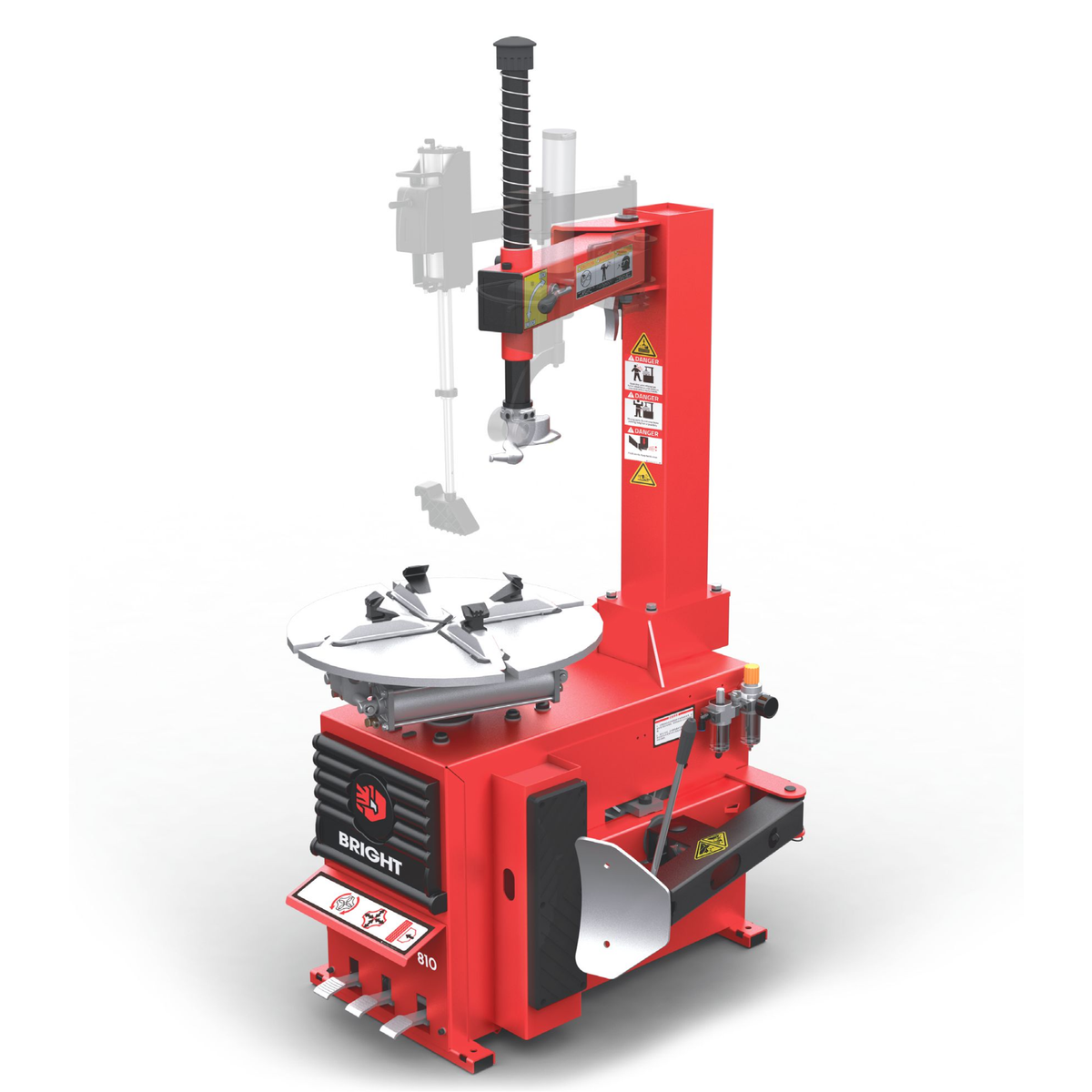

BRIGHT 810
Suitable
Optional
Unsuitable
TIRE CHANGER
BRIGHT 810
BRIGHT 810
As an ordinary tire changer, simple and practical design will make it
prevail all over the world, the new valve body enhances the durability of
the product.
prevail all over the world, the new valve body enhances the durability of
the product.
960 MM
12"=21"
10"-18"
3"-12"
8-10 bar
6,5 rpm

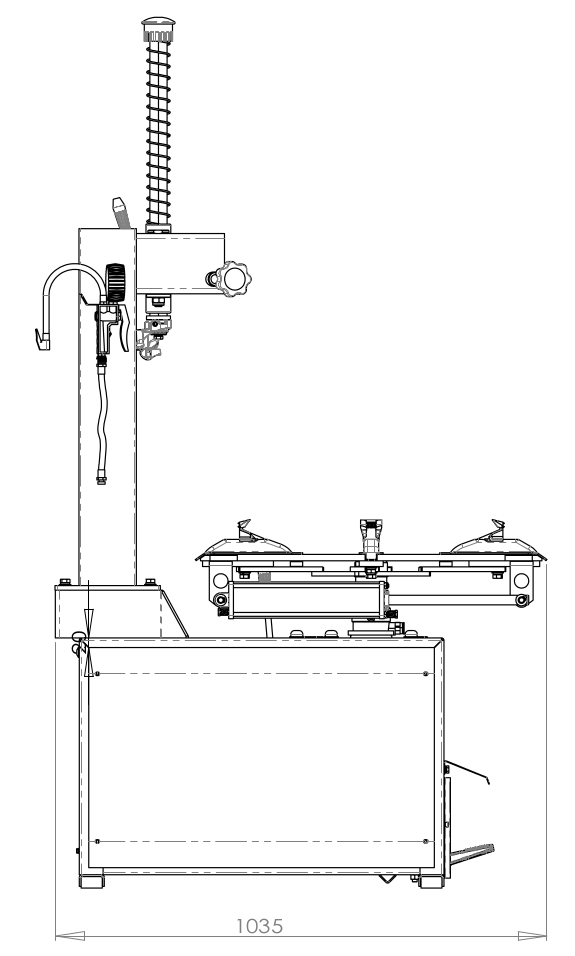

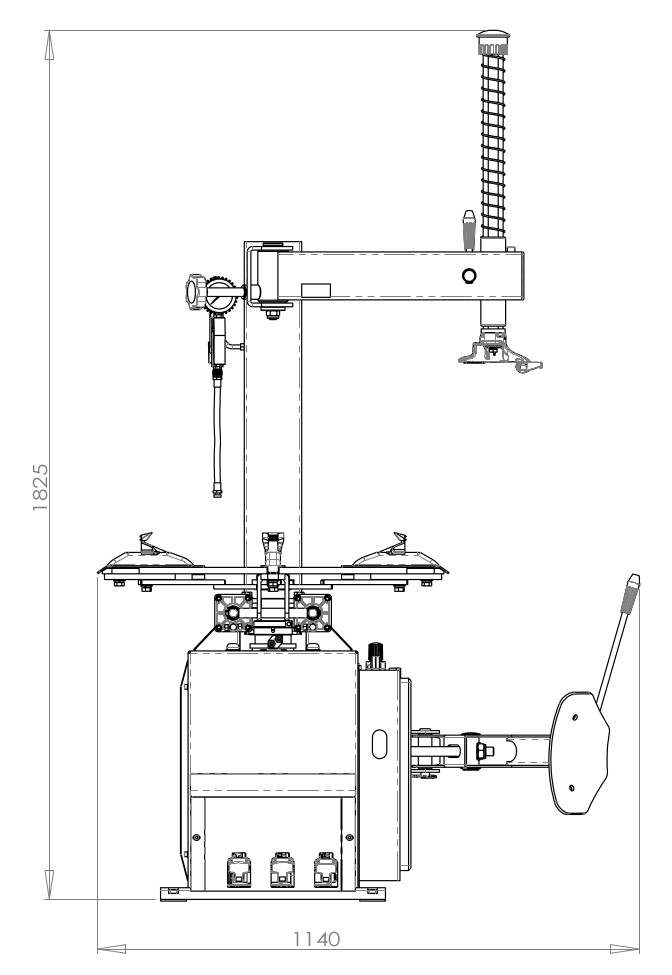

Line Drawing
BRIGHT 810
As an ordinary tire changer, simple and practical design will make
it prevail all over the world, the new valve body enhances the
durability of the product, focusing on car tyre changer for more
than 20 years, every component has been integrated with at least
20 years’ exploration. It can be seen to create value for customers
in every part of the world. Simple, practical, it can meet all the
needs from regular tire service
Technical Data
Outside clamping range
10” - 18” inch
Inside clamping range
12” - 21” inch
Rim width
3” - 12” inch
Max wheel diameter
960 mm
Working pressure
8 - 10 bar
Bead breaking force
2500 kg
Powers supply
110V/220V/380V
Motor Power
1.1/0.75 Kw
Rotation per minute
6.5rpm
Noise
＜70dB
Machine dimensions
1200×1200×1900 mm
Packing dimensions
980×810×960 mm
Net weight
179 kg
Gross weight
207 kg
Loading in 40 Ft. container
72 sets
Demounting head is made of special material, with lifetime warranty.
The parkerising cylinder, tyre pressure can reach to force 2000kg, it is easy to separate RCS tyres and run-flat tyres from the rim, avoid cylinder rust, enhancing the service life.
The parkerising cylinder, tyre pressure can reach to force 2000kg, it is easy to separate RCS tyres and run-flat tyres from the rim, avoid cylinder rust, enhancing the service life.
The Italian-design pedal assembly has ergonomic structure, sealing performance is stable, appearance updated, unified brand image.
The claws are made of special material, strong and durable.
Optional equipped with upper assist arm 230/232.
