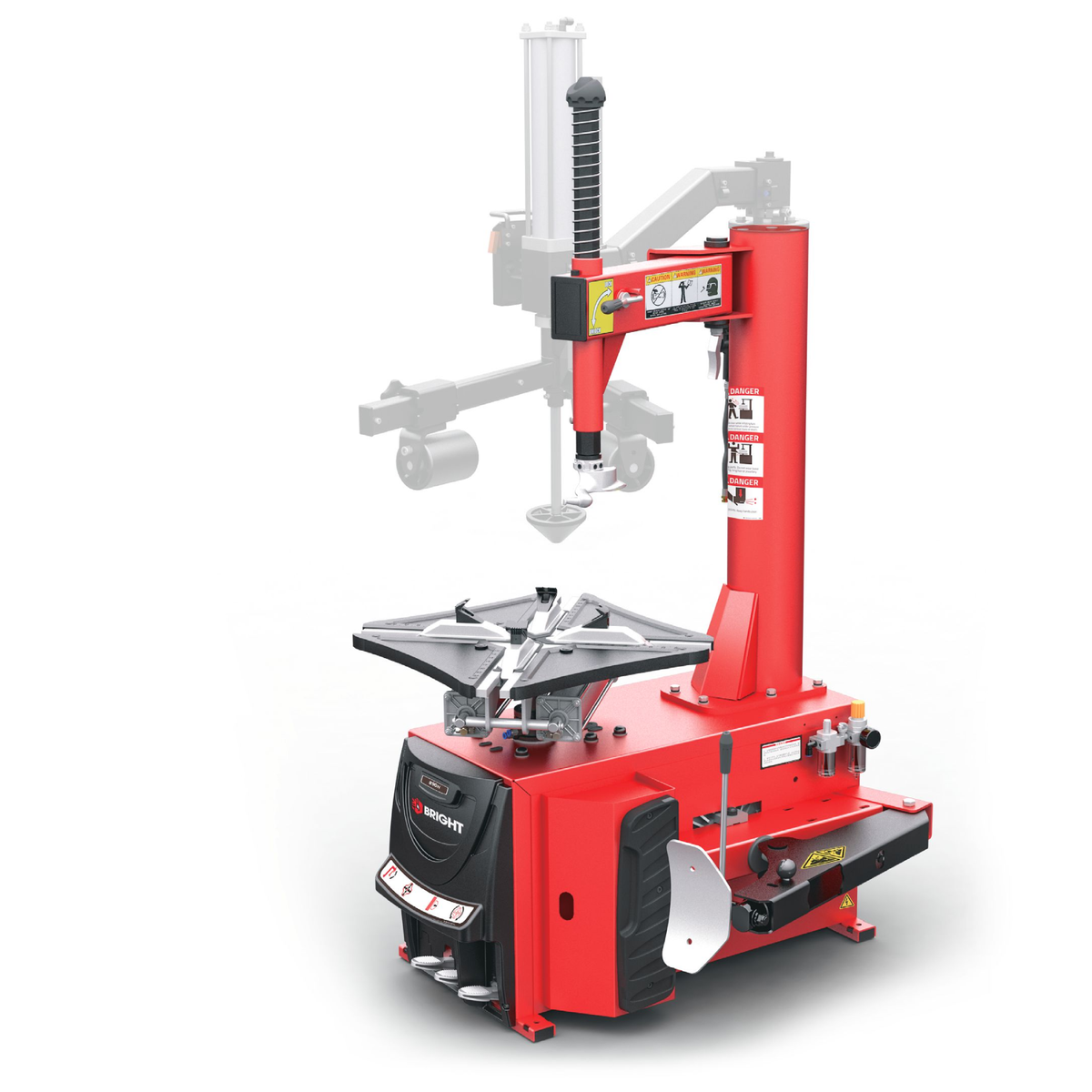

BRIGHT 890 N
Suitable
Optional
Unsuitable
TIRE CHANGER
BRIGHT 890 N
BRIGHT 890 N
Optional 231/240 auxiliary arm, to achieve rim center position and two point tire press
function
function
1250 MM
13-26”
11-24”
3" - 13"
8-10 bar
6,5 rpm
BRIGHT 890 N
The dominant position in the international market for 10 years, makes the
series of 890 enjoy high reputation in this line.According to the demand of
Chinese customers, constant tracking the development of rim, and keep
studying, the enhanced parts perfectly show its strength. Stability, durability
and comfort is the constant pursuit of this product.
Technical Data
Outside clamping range
11” - 24” inch
Inside clamping range
13” - 26” inch
Rim width
3” - 13” inch
Max wheel diameter
1250 mm
Working pressure
8 - 10 bar
Bead breaking force
2500 kg
Powers supply
110V/220V/380V
Motor Power
0.75/1.1Kw
Rotation per minute
6.5rpm
Noise
＜70dB
Machine dimensions
1350×1300×1950 mm
Packing dimensions
1150×920×1050 mm
Net weight
239 kg
Gross weight
269 kg
Loading in 40 Ft. container
48 sets
Demounting head is made of special material and lifetime warranty , the 41mm diameter hex bar can deal with all kinds of run flat and low profile tyres.
The bead breaker arm is upgraded and the force is increased by 30%.
Adopted special parkerising technique cylinder, avoid the cylinder rust , increasing service life.
Standardly equipped with 80mm small diameter cylinder in working 6,5 rpm table , the clamping force increases 58kg than the 75mm.The rim can be held firmly and assure no rim damage due to claw’s slippery. There is scale on protective cover to make clamping more easily and increase efficiency , avoid scratch between the rim and the turntable.
Standardly equipped with spacer , which meets the CE requirement and protects the operator.
The Italian-design pedal assembly has ergonomic structure, sealing performance is stable, appearance updated, unified brand image.
Equipped with 240 assist arm, rim can be centralized positioning , two position pressing the tyre.
Optionally equipped with lifter SR69, labor saving.
