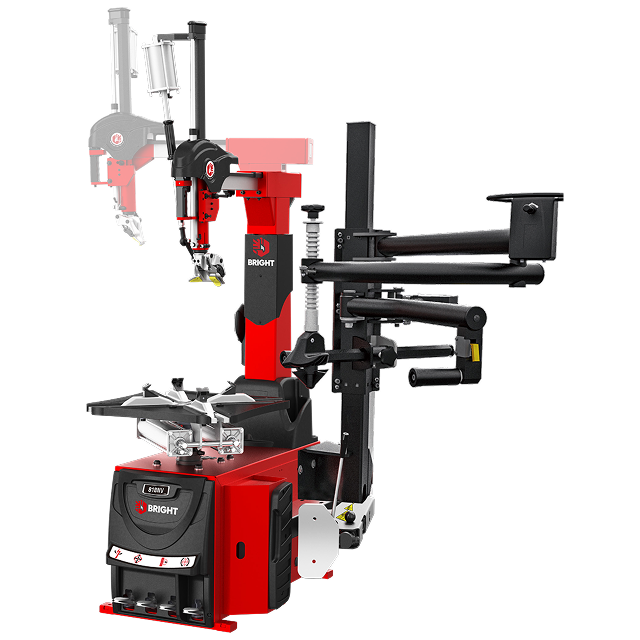

BRIGHT 818NV/390HP
Suitable
Optional
Unsuitable
TIRE CHANGER
BRIGHT 818NV/390HP
BRIGHT 818NV/390HP
Derived from the mature technology of SICE, Its main technical feature is the rotary elevation lateral swing function of the tool arm, with the advantage of fully utilizing limited space.
1100 MM
12 - 30"
--
03”-14”
8 - 10 bar
6,5 - 13 rpm
Leverless Technology
Run-Flat Ready
11"-26" External Clamp
13"-26" Internal Clamp
Heavy-Duty Construction
Professional Workshop Solution
Optional Accessories

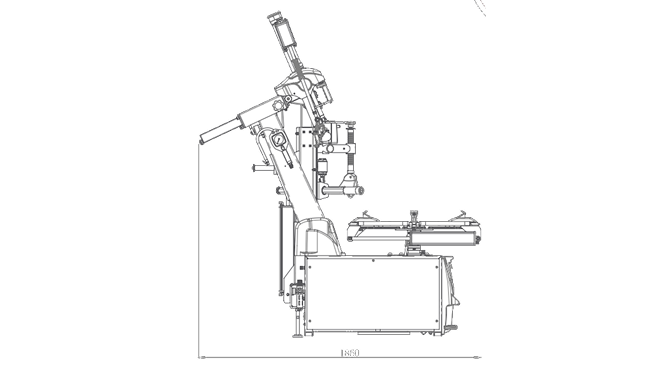

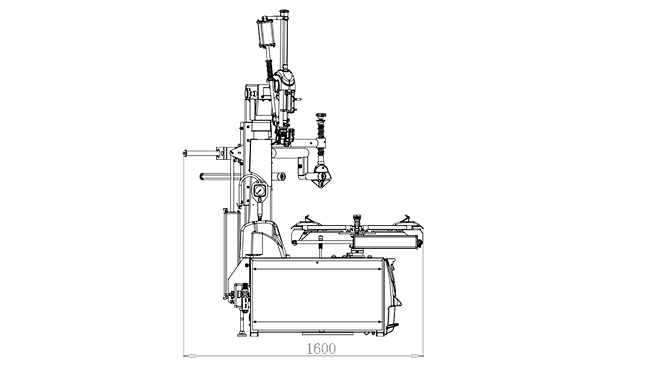

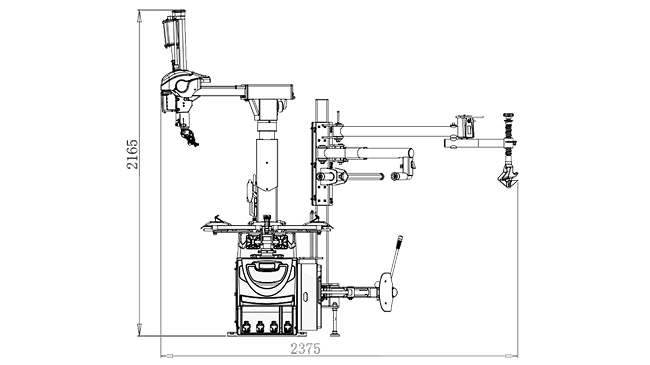

Line Drawing
BRIGHT 818NV/390HP
High cost performance enjoyment with handy and reliable experience
Technical Data
Name
Parameter (Accuracy)
Name
Parameter (Accuracy)
Outside Clamp
11” - 24” inch
Inside Clamp
13” - 26” inch
Rim width
3” - 14” inch
Max wheel diameter
1100 mm
Working pressure
8 - 10 bar
Bead breaking force
2800 kg
Powers supply
200V~240V/50/60Hz/1P
Motor Power
0.85Kw
Rotation per minute
0-13rpm
Noise
70dB
Machine dimensions
1570mm×1540mm×2110mm
Packing dimension
1350×1050×2000 mm
Net weight
395kg
Gross weight
430kg
Featuring the rotary elevation lateral swing function of the tool arm, with the advantage of fully utilizing limited space.
The column adopts a dual-rail design, which ensures even force distribution during use, thereby extending Enhanced Locking System, Resistant to Wear.
Standardly equipped with spacer, which meets the CE requirement and protects the operator during mounting and demounting.
The Italian-design pedal assembly has ergonomic structure, sealing performance is stable, appearance updated, unified brand image.
Standardly equipped with 200mm DIA air tank with variable torque adjustment bead breaking arm,direct output with powerful pressing force to shovel any RSC and low-profile tires.
ZD05 leverless bar device origins from Italian patent technology Tested by European market for so many years. It is suitable for all kinds of tire mounting and demounting.
