BRIGHT 889N/330/335
Suitable
Optional
Unsuitable
TIRE CHANGER

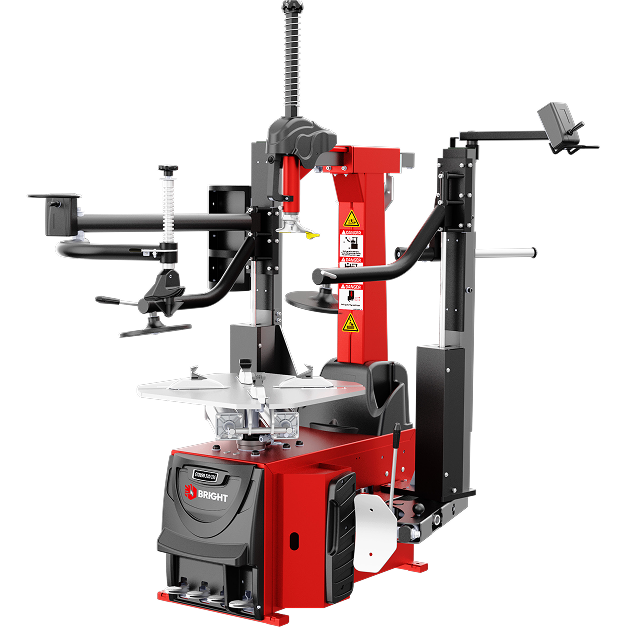

BRIGHT 889N/330/335
BRIGHT 889N/330/335
The third generation of 889N/330/335, exceeds itself once again. Meeting the higher standards in every aspects to ensure bringing the improvement performances and luxurious experience in mounting and demounting. Positive exploring the development of global large-sized tire. Improvement and exceeded again and again, fearless and outstanding. The large box body with the double assist arms show its solid.
1100 NM
15" - 28"
13" - 24"
03”-14”
8 - 10 bar
6,5 - 13 rpm
Optional Accessories

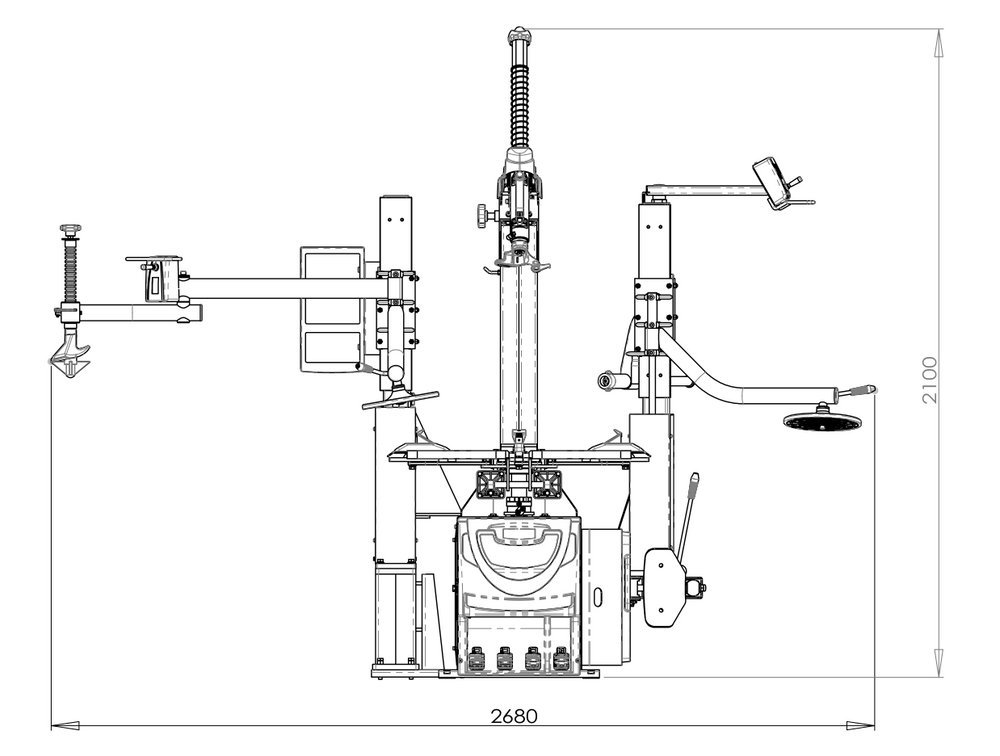

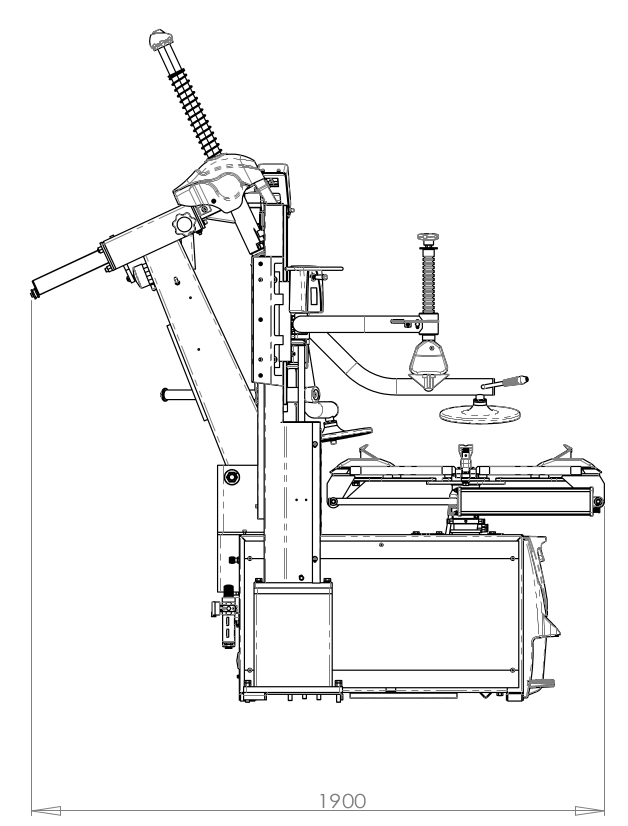

Line Drawing
BRIGHT 889N/330/335
The third generation of 889N/330/335, exceeds itself once again. Meeting the higher standards in every aspects to ensure bringing the improvement performances and luxurious experience in mounting and demounting.
Technical Data
Outside clamping range
13” - 24” inch
Inside clamping range
15” - 28” inch
Rim width
3” - 14” inch
Max wheel diameter
1100 mm
Working pressure
8 - 10 bar
Bead breaking force
2800 kg
Powers supply
110V/220V/380V
Motor Power
0.75Kw/1.1Kw
Rotation per minute
6.5/13rpm (Optional, must be 3Ph power)
Noise
＜70dB
Machine dimensions
2680×1900×2100 mm
Packing dimensions
1200×1170×1850 mm
Net weight
405 kg
Gross weight
495 kg
Loading in 40 Ft. container
10 sets
Standardly equipped with 200mm DIA air tank with variable torque adjustment bead breaking arm, direct output with powerful pressing force to shovel any RSC and run-flat tyres
Adopted 55mm DIA horizontal shaft with extended hex bar sleeve, robust mechanical structure in forceful combination.
Vertical column in 5mm double bending steel plate, reinforced intensity free from any deformation
Lengthened hex bar with extended bar torque, avoid deformation while provide additional protection to rims
Standardly equipped with two assist arms, it is easy to mount and demount RSC tyres , run-flat tyres and oversized tyres.
