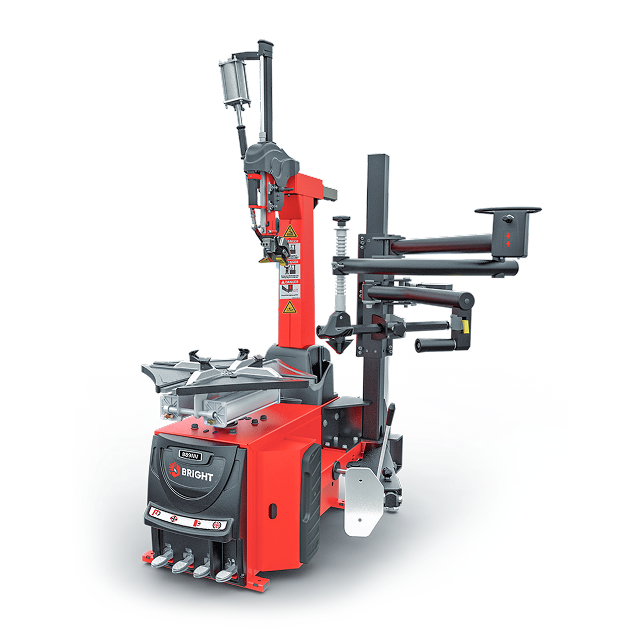

BRIGHT 887S/390
Suitable
Optional
Unsuitable
TIRE CHANGER
BRIGHT 887S/390
BRIGHT 887S/390
Competitive overall intensity kept the phase with top renowned brands. CE approval spare parts with testified ZD05 leverless system makes operations to Run-flat tires as an enjoyment. The capability to deal with regular and rough tires contribute 889NV as an almighty solution for car tire mounting/demounting job.
1100 MM
13-26”
11-24”
03”-14”
8 - 10 bar
6,5 - 13 rpm
Leverless Technology
Run-Flat Ready
11"-26" External Clamp
13"-26" Internal Clamp
Heavy-Duty Construction
Professional Workshop Solution
Optional Accessories

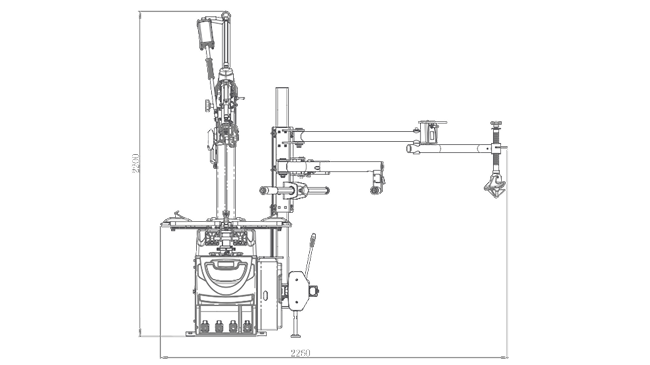

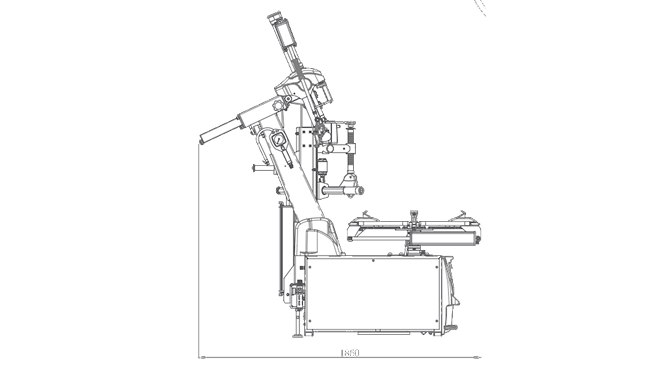

Line Drawing
BRIGHT 887S/390
With the development of automobiles, more and more explosion-proof tires and flat tires appear. In order to solve the problem of difficulty, laborious and easily damaged tires, 887S arises at the right moment.
Technical Data
Outside Clamp
11” - 24” inch
Inside Clamp
13” - 26” inch
Rim width
3” - 14” inch
Max wheel diameter
1100 mm
Working pressure
8 - 10 bar
Bead breaking force
2800 kg
Powers supply
110V/220V/380V
Motor Power
0.75Kw/1.1Kw
Rotation per minute
6.5/13rpm (Optional, must be 3Ph power)
Noise
＜70dB
Machine dimensions
1870×2100×2160 mm
Packing dimension
1400×1020×2000 mm
Net weight
259 kg
Gross weight
299 kg
Loading in 40 Ft. container
31 sets
ZD03 up and down by pneumatic control; easy operation and save both time and labor.
The clamp cylinder with φ80 diameter as standard increases the clamp power 58Kg than φ75 diameter cylinder to avoid damage the surface of rim due to clamp slip during operation.
The machine adopts the Φ200mm aluminum bead beaker cylinder as standard configuration having bead break power 2800Kg to bead break the low-profile, run-flat and various RSC tires.
The wearable washers as standard correspond to Europe standard to protect the personal safety when mounting the tire.
Reasonable structure pedal assembly with new pedal designed by italy engineer; update pedal appearance; unify brand image.
The 40A universal switch with bigger and thicker pure silver touching points can bear great load with a long using life.
double-bending technic and 5mm steel thicker pole ensure high intensity.
assist arm 390 as standard can press tire centrally using press block; operation easily and simply; improve the demounting and mounting speed.
