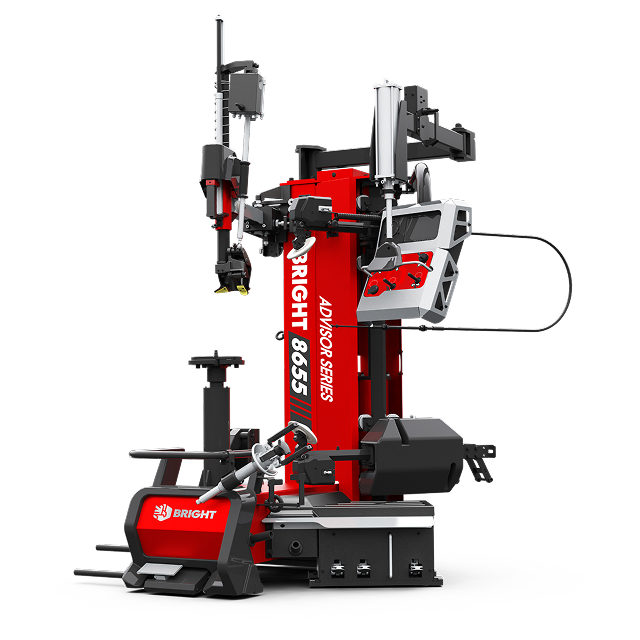

BRIGHT 8655
Suitable
Optional
Unsuitable
TIRE CHANGER
BRIGHT 8655
BRIGHT 8655
Assist in realizing the OPT optimization function, achieve complete tire lock-up,making it an excellent companion for high-precision dynamic balancing
1200 MM
13-30"
--
03”-14”
8-10 bar
6,5 - 13 rpm
15"
Leverless Technology
Run-Flat Ready
11"-26" External Clamp
13"-26" Internal Clamp
Heavy-Duty Construction
Professional Workshop Solution
Optional Accessories

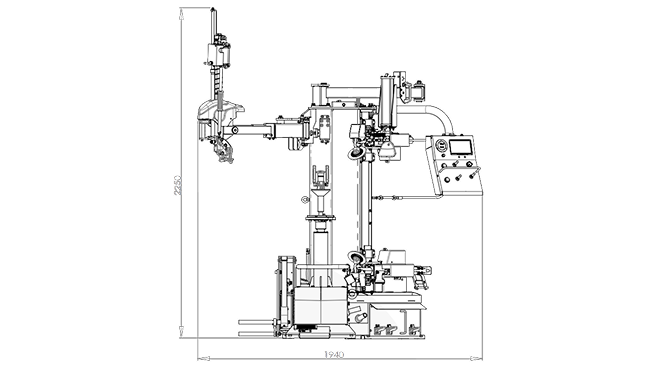

Line Drawing
BRIGHT 8655
Assist in realizing the OPT optimization function,achieve complete tire lock-up,making it an excellent companion for high-precision dynamic balancing.
Technical Data
Rim range
13” - 30”
Rim width
15”
Max wheel diameter
1200 mm
Work pressure
8 - 10 bar
Bead break force
7600 N
Voltage
200V~240V 50/60Hz 1p
Motor power
0.85kW
Rotation per minute
0~13rpm
Noise
＜70dB
Machine dimension
1940×1670×2250 mm
Packing dimensions
1600×1400×2020 mm
Net weight /Gross weight
440 kg/510 kg
ZD06 leverless kit as patented technology from Italy,improve work efficiency,with enhanced protection for tire bead and rim surface.
Dual bead breaker with controlled penetration , effectively engages the tire bead and rapidly separates the tire, even for difficult-to-remove tires.
Direct-drive frequency converter power unit, with a constant 8 - 10 bar 0 - 13 rpm torque output of 1200 N·m. The aluminum alloy worm gearbox is more wear-resistant and has a longer service life.
Equipped with upper assist arm, enhancing the efficiency in mounting and demounting tires.
The control layout integrates all the instructions into a single operating area,this can effectively reduce auxiliary working time and improve work efficiency.
Dual bead breaker with controlled penetration, offering higher precision and repeatability in terms of operating speed and the symmetry of the dual bead breaker , and featuring tire optimization(OPT)functions.
Assist in realizing the OPT optimization function,achieve complete tire lock-up,making it an excellent companion for high-precision dynamic balancing.
The wheel lifter can easily raise the tire to operate position, labor saving. A rubber protector has been added to safeguard the wheel from damage in any condition.
