BRIGHT 885 N
Suitable
Optional
Unsuitable
TIRE CHANGER
BRIGHT 885 N
BRIGHT 885 N
Safety being first is our designing concept! The protection of tire and rim , is not only a modern interpretation of the safe concept, but also much easier and more practical. Redefine the safe pursuit of tire services through modern design.
1120 MM
13" - 23"
11" - 20"
3" - 13"
8 - 10 bar
6,5 - 13 rpm
Optional Accessories

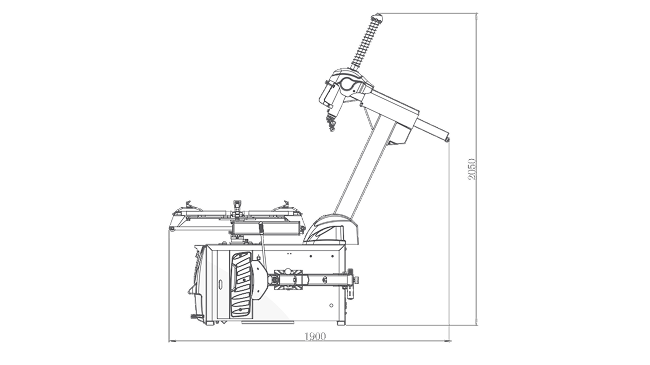

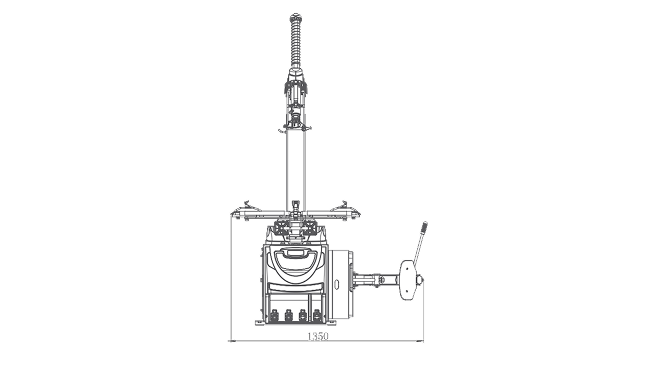

Line Drawing
BRIGHT 885 N
Appearance designed by the former designer of Lamborghini, larger working size, stronger bead breaking force, perfectly meet the customer requirement , with high proficiency.
Technical Data
Outside clamping range
11” - 24” inch
Inside clamping range
13” - 26” inch
Rim width
3” - 14” inch
Max wheel diameter
1100 mm
Working pressure
8 - 10 bar
Bead breaking force
2800 kg
Powers supply
110V/220V/380V
Motor Power
0.75Kw/1.1Kw
Rotation per minute
6.5/13rpm (Optional, must be 3Ph power)
Noise
＜70dB
Machine dimensions
1900×1400×2000 mm
Packing dimensions
1150×920×1000 mm
Net weight
290 kg
Gross weight
320 kg
Loading in 40 Ft. container
48 sets
Demounting head is made of special material, the 41mm diameter hex bar can deal with all kinds of run flat and low profile tyres’ mounting and demounting.
The Italian-design pedal assembly has ergonomic structure, sealing performance is stable, appearance updated, unified brand image.
The tyre changer adopted tilt back structure, the column can be tiltedback and forth , it is driven and locked by air cylinder.
Strengthened channel are welded at the front base of column, enhance the overall intensity, suitable to all kinds of tyres’ mounting and demounting.
Optional equipped with AL390 or AL328 assist arm which adopted tire pressing block for the rim centering, easy and convenient operate. Enhancing the efficiency in mounting and demounting.
Adopted special parkerising technique cylinder, avoid the cylinder rust , increasing service life.
Optional equipped with tire lifter SR69 , labor saving
Explore Related Tire Changers
-
TIRE CHANGER

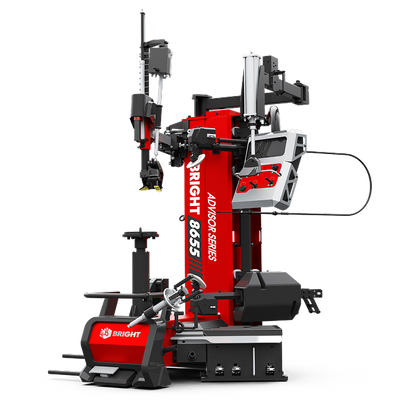

BRIGHT 8655
