BRIGHT 889 N
Suitable
Optional
Unsuitable
TIRE CHANGER

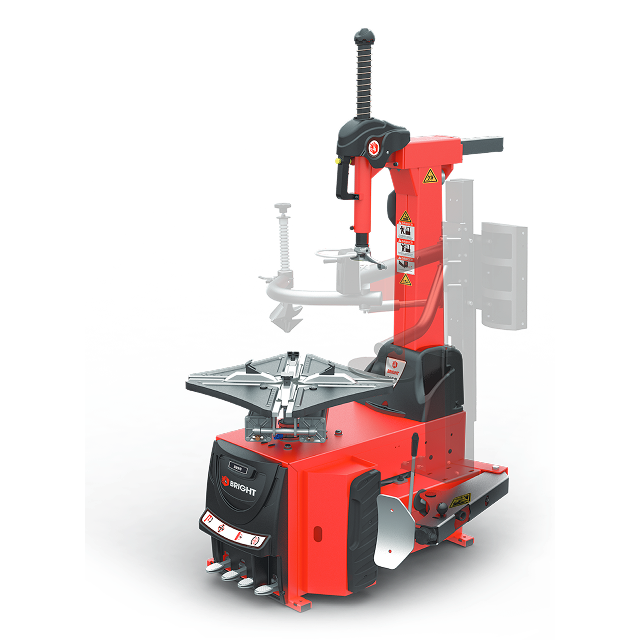

BRIGHT 889 N
BRIGHT 889 N
Safety being first is our designing concept! The protection of tire and rim , is not only a modern interpretation of the safe concept, but also much easier and more practical. Redefine the safe pursuit of tire services through modern design.
1100 NM
13-26”
11-24”
03”-14”
8 - 10 bar
6,5 - 13 rpm
Optional Accessories

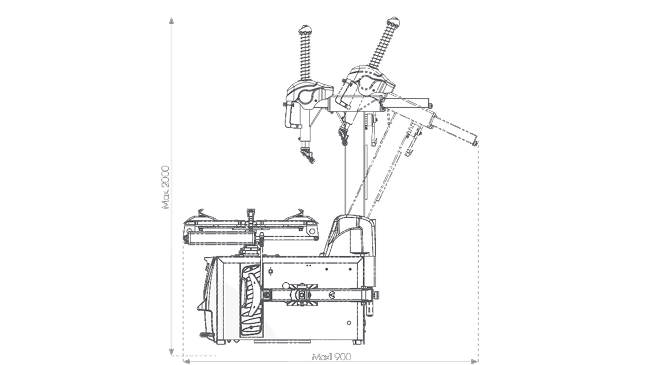

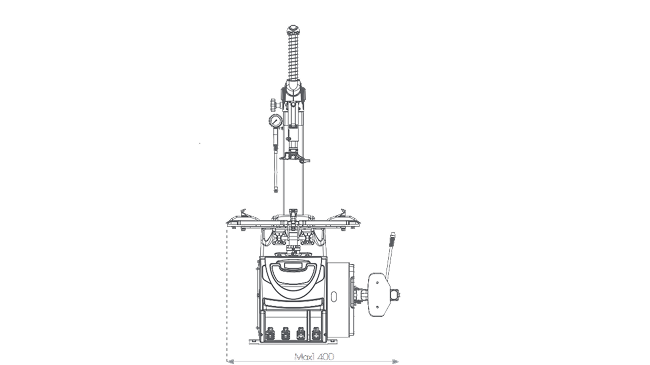

Line Drawing
BRIGHT 889 N
Following the basic pillar of high quality standard in the first place, maintaining the overall intensity compete with top renowned brands, and diversified optional accessories for customization to suit different demands
Technical Data
Outside clamping range
11” - 24” inch
Inside clamping range
13” - 26” inch
Rim width
3” - 14” inch
Max wheel diameter
1100 mm
Working pressure
8 - 10 bar
Bead breaking force
2800 kg
Powers supply
110V/220V/380V
Motor Power
0.75Kw/1.1Kw
Rotation per minute
6.5/13rpm (Optional, must be 3Ph power)
Noise
＜70dB
Machine dimensions
1900×1400×2000 mm
Packing dimensions
1150×920×1000 mm
Net weight
290 kg
Gross weight
320 kg
Loading in 40 Ft. container
48 sets
Standardly equipped with 80mm diameter small cylinder in working table , the clamping force increases 58kg than the 75mm. The rim can be held firmly and assure no rim damage .
Standardly equipped with spacer, which meets the CE 8 - 10 bar requirement and protects the operator during mounting and demounting.
The Italian-design pedal assembly has ergonomic structure, sealing performance is stable, appearance updated, unified brand image.
Double-bending column is made of steel plate with 5mm thickness, high robustness.
Adopted special parkerising technique cylinder, avoid the cylinder rust , increasing service life
Adopted diameter 55mm horizontal shaft , the lengthened hex bar sleeve makes the machine more intensive.
Optional AL328 assistant, the assistant directly adopts the press block to the medium press tire, easy to operate, Simple, improve the machine work speed
