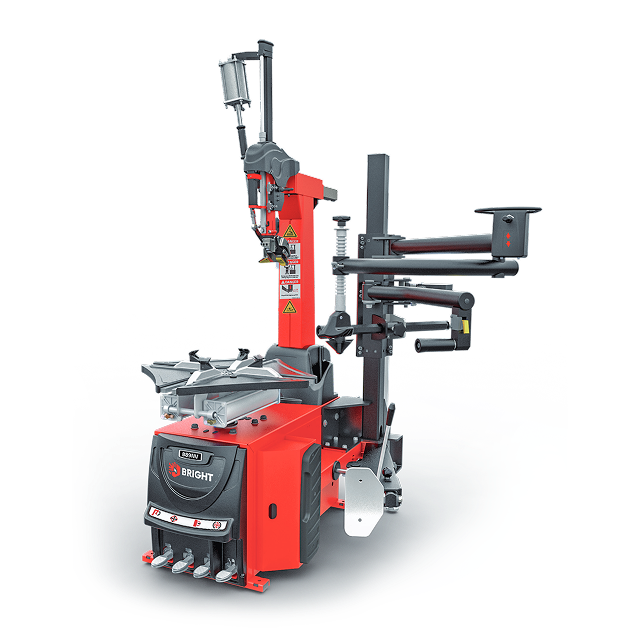

BRIGHT 889 NV/390HP
Suitable
Optional
Unsuitable
TIRE CHANGER
BRIGHT 889 NV/390HP
BRIGHT 889 NV/390HP
Competitive overall intensity kept the phase with top renowned brands. CE approval spare parts with testified ZD05 leverless system makes operations to Run-flat tires as an enjoyment. The capability to deal with regular and rough tires contribute 889NV as an almighty solution for car tire mounting/demounting job.
1100 MM
12 - 30"
--
03”-14”
8 - 10 bar
6,5 - 13 rpm
Leverless Technology
Run-Flat Ready
11"-26" External Clamp
13"-26" Internal Clamp
Heavy-Duty Construction
Professional Workshop Solution
Optional Accessories

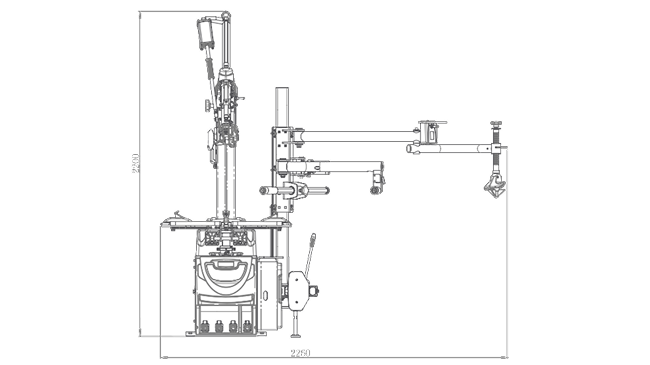

Line Drawing
BRIGHT 889 NV/390HP
Competitive overall intensity kept the phase with top renowned brands, matured leverless kit testified by European market, makes operations to Run-flat tires as an enjoyment.
Technical Data
Outside Clamp
11” - 24” inch
Inside Clamp
13” - 26” inch
Rim width
3” - 14” inch
Max wheel diameter
1100 mm
Working pressure
8 - 10 bar
Bead breaking force
2800 kg
Powers supply
110V/220V/380V
Motor Power
0.75Kw/1.1Kw
Rotation per minute
6.5/13rpm (Optional, must be 3Ph power)
Noise
＜70dB
Machine dimensions
1860×2260×2200 mm
Packing dimension
1350×1050×2000 mm
Net weight
405kg
Gross weight
495kg
Loading in 40 Ft. container
16 sets
Latest ZD05 leverless system adopted with smooth hand control valve, patented technology from Italy, testified in European market through years with capability to perform mounting/ demounting operations toward a wide range of tire types with ease.
Standardly equipped with 200mm DIA air tank with variable 8 - 10 bar torque adjustment bead breaking arm, direct output with powerful pressing force to shovel any RSC and run-flat tyres.
Adopted 55mm DIA horizontal shaft with extended hex bar sleeve, robust mechanical structure in forceful combination.
Vertical column in 5mm double bending steel plate, reinforced intensity free from any deformation
Lengthened hex bar with extended bar torque, avoid deformation while provide additional protection to rims.
Optionally equipped with SR69 tire lifter
