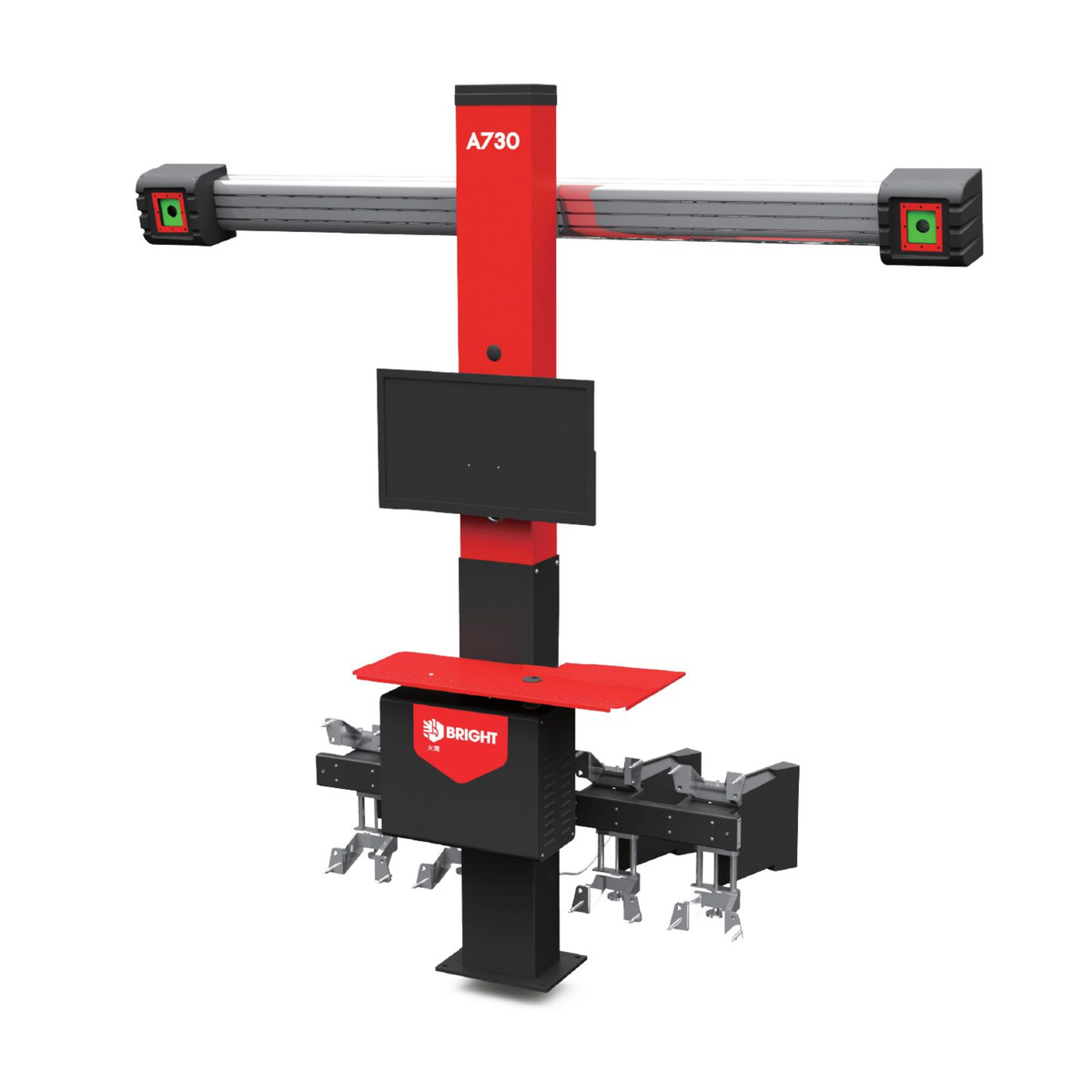

BRIGHT A730
Suitable
Optional
Unsuitable
Technical Data
Name
Parameter (Accuracy)
Name
Parameter (Accuracy)
Voltage
110~230V AC
Phase Number
Single-phase
Frequency
0-60HZ
Power
500W
Operating Temperature
-40°C
Storage and Transportation Temperature
-10-60°C
Light Intensity
>500LUX
Humidity
20-80%
Installation Distance
1800-3200mm
Camera Measurement Range
6000mm
Total Toe
±20° (±0.05°)
Individual
±10° (±0.02°)
Camber
±10° (±0.05°)
Caster
±30° (±0.05°)
Kingpin Inclination
±30° (±0.05°)
Thrust
±10° (±0.03°)
Symmetry Deviation
±10° (±0.03°)
Gross Weight
302kg
Net Weight
186kg
Genuine WIN10 authorization data is stable and not lost. 1.3 Megapixels HD cameras.
Film process technology target board.
Italian professional intelligent software undergoes two data updates per year.
High configuration brand PC, original windows system, quality is guaranteed.
Fixed Beam.
Maximum measurement range: 6 meters.
