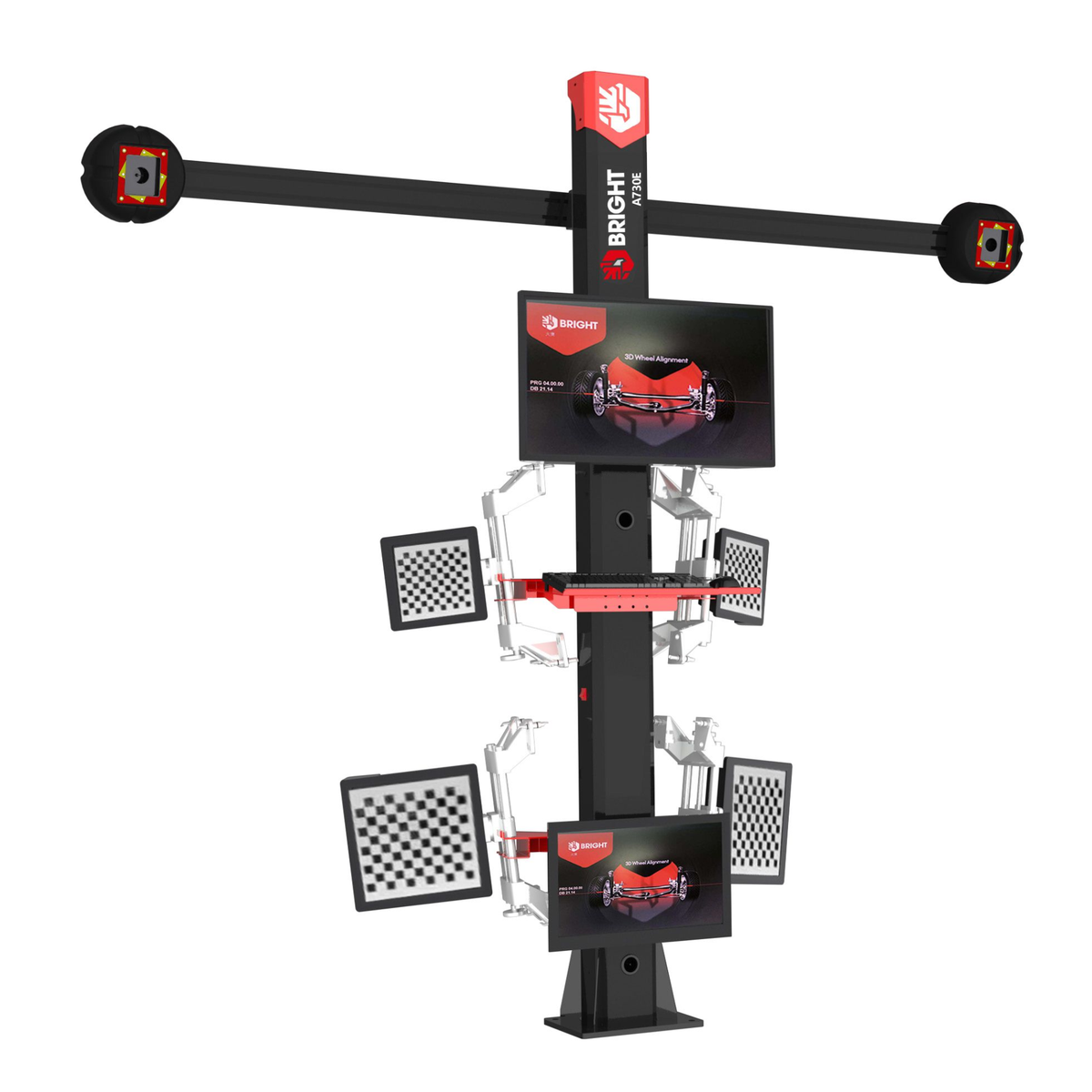

BRIGHT A730 E
Suitable
Optional
Unsuitable
Technical Data
Name
Parameter (Accuracy)
Name
Parameter (Accuracy)
Voltage
110~230V AC
Phase Number
Single-phase
Frequency
50-60HZ
Power
500W
Operating Temperature
0-40°C
Storage and Transportation Temperature
-10-60°C
Light Intensity
>500LUX
Humidity
20-80%
Installation Distance
1800-3200mm
Camera Measurement Range
6000mm
Total Toe
±20° (±0.05°)
Individual
±10° (±0.02°)
Camber
±10° (±0.05°)
Caster
±30° (±0.05°)
Kingpin Inclination
±30° (±0.05°)
Thrust
±10° (±0.03°)
Symmetry Deviation
±10° (±0.03°)
Gross Weight
280kg
Net Weight
262kg
Genuine WIN10 authorization data is stable and not lost.
1.3 Megapixels HD cameras.
Film process technology target board.
Italian professional intelligent software undergoes two data updates per year.
MINI computer saves space in the workshop.
Fixed Beam.
Maximum measurement range: 6 meters.
