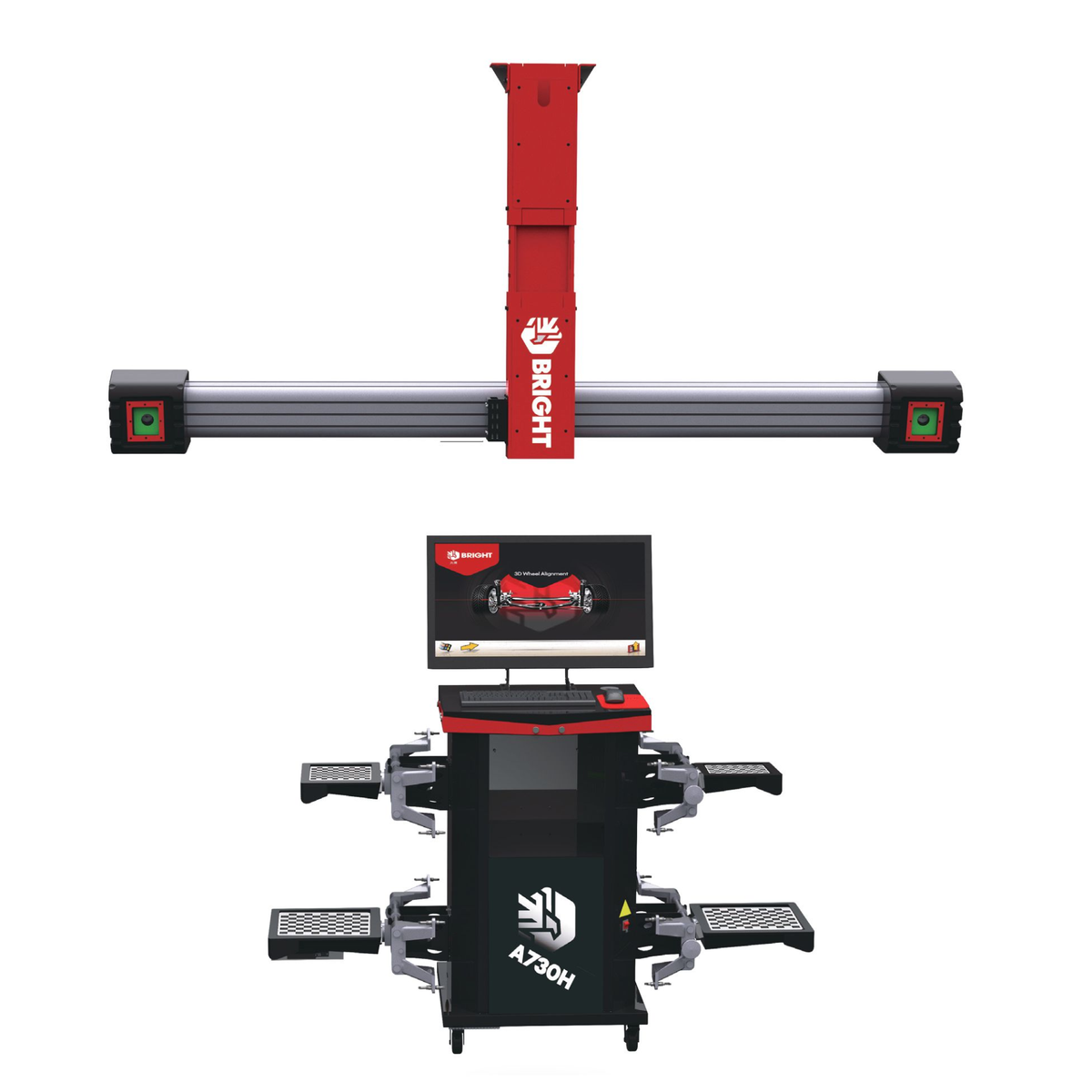

BRIGHT A730 H
Suitable
Optional
Unsuitable
Technical Data
Name
Parameter (Accuracy)
Name
Parameter (Accuracy)
Voltage
110~230V AC
Phase Number
Single-phase
Frequency
50-60HZ
Power
500W
Operating Temperature
0-40°C
Storage and Transportation Temperature
-10-60°C
Light Intensity
>500LUX
Humidity
20-80%
Installation Distance
1800-3200mm
Camera Measurement Range
6000mm
Total Toe
±20° (±0.05°)
Individual
±10° (±0.02°)
Camber
±10° (±0.05°)
Caster
±30° (±0.05°)
Kingpin Inclination
±30° (±0.05°)
Thrust
±10° (±0.03°)
Symmetry Deviation
±10° (±0.03°)
The design is inspired by the customer needs, meets the Technical data requirements of special store-through and low roof. Incorporate the BRIGHT keep creating value into the product.
Standard version, column adjustable range 0-420mm
Italian professional intelligent software, clear interface, Optional Accessories convenient operation.
"In the display interface with various light options, is not restricted by the sun light during the work".
"About 68000-75000 international vehiche datas, covering 99.99% models".
