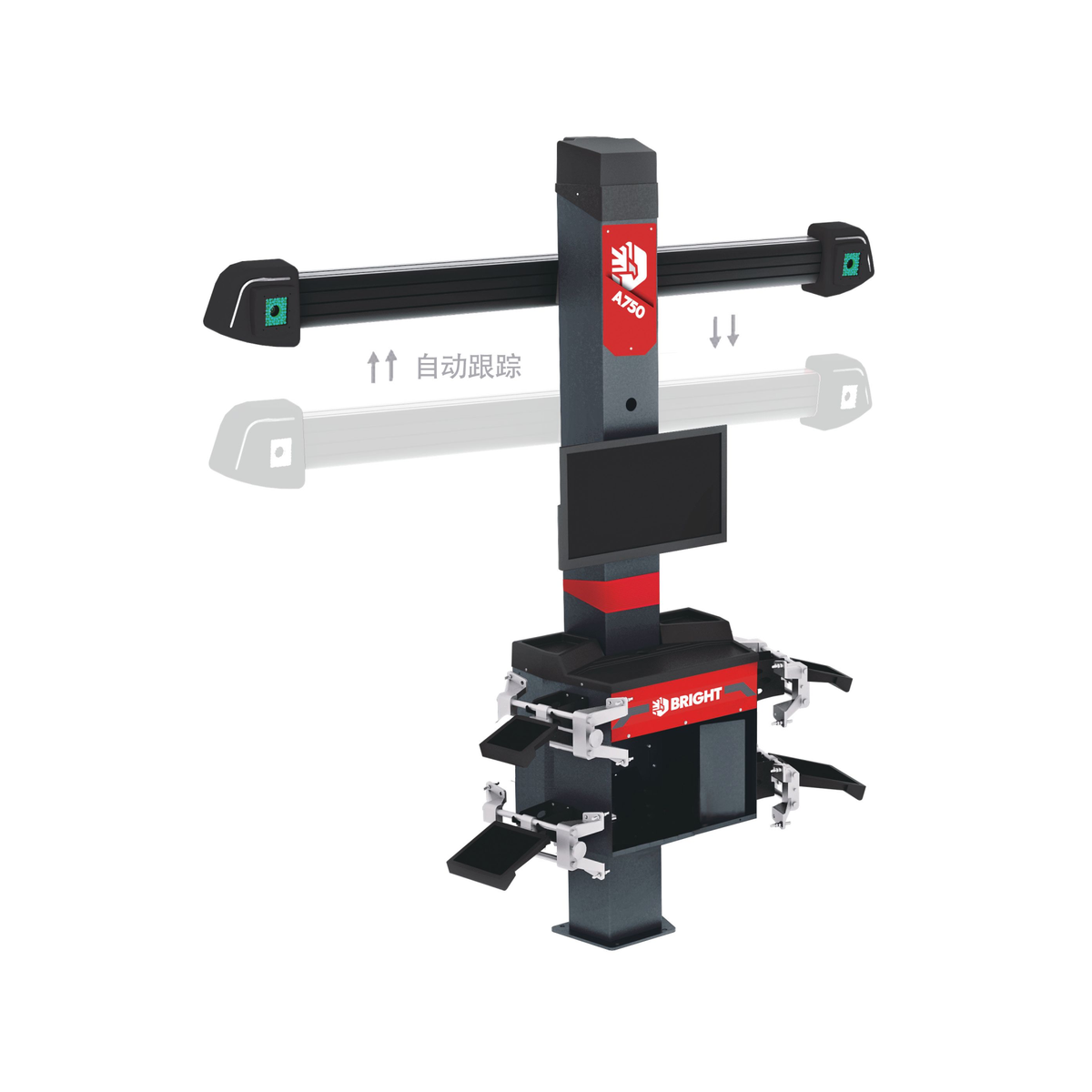

BRIGHT A750
Suitable
Optional
Unsuitable
Technical Data
Name
Parameter (Accuracy)
Name
Parameter (Accuracy)
Voltage
110~230V AC
Phase Number
Single-phase
Frequency
50-60HZ
Power
500W
Operating Temperature
0-40°C
Storage and Transportation Temperature
-10-60°C
Light Intensity
>500LUX
Humidity
20-80%
Installation Distance
1800-3200mm
Camera Measurement Range
8000mm
Total Toe
±20° (±0.05°)
Individual Toe
±10° (±0.02°)
Camber Angle
±10° (±0.05°)
Caster Angle
±30° (±0.05°)
Kingpin Inclination Angle
±30° (±0.05°)
Thrust Angle
±10° (±0.03°)
Symmetry Deviation
±10° (±0.03°)
Gross Weight
350kg
Net Weight
317kg
Adopts software for automatic tracking and control of lifting columns.
The camera automatically identifies and locates the 21.5-inch display Optional Accessories target disc to adjust the beam height, with a lifting range of 530mm~2300mm.
Industrial-grade camera with 6.3-megapixel resolution and Sony chip.
Equipped with fully automatic exposure function, enhancing anti-light interference capability by 20%.
32-inch high-definition TV.
Newly upgraded 3D-PLUS software, adding new car model LOGO options, dedicated search frames, full data display and individual data zoom-in display.
Remote database upgrade. Lifetime free upgrade for the Chinese single-language database.
Target targets with new engraving technology, improving processing accuracy by 80% and extending service life by 50%.
ASUS desktop computer with 1TB hard disk and Windows 10 Extension gripper 15° ROC compensation -Italian Patent Suspension tuning guidance Calibration tools IoT Enterprise LTSC system.
Aluminum alloy fixtures with a clamping range of 11~24 inches.
Upgradeable to Smart-ROC function: 15° cart angle, A750 61 Suitable Optional Unsuitable k k shortening cart distance, improving cart efficiency and measurement accuracy.
Upgradeable fixture extension jaws, applicable to 11-26 inches.
