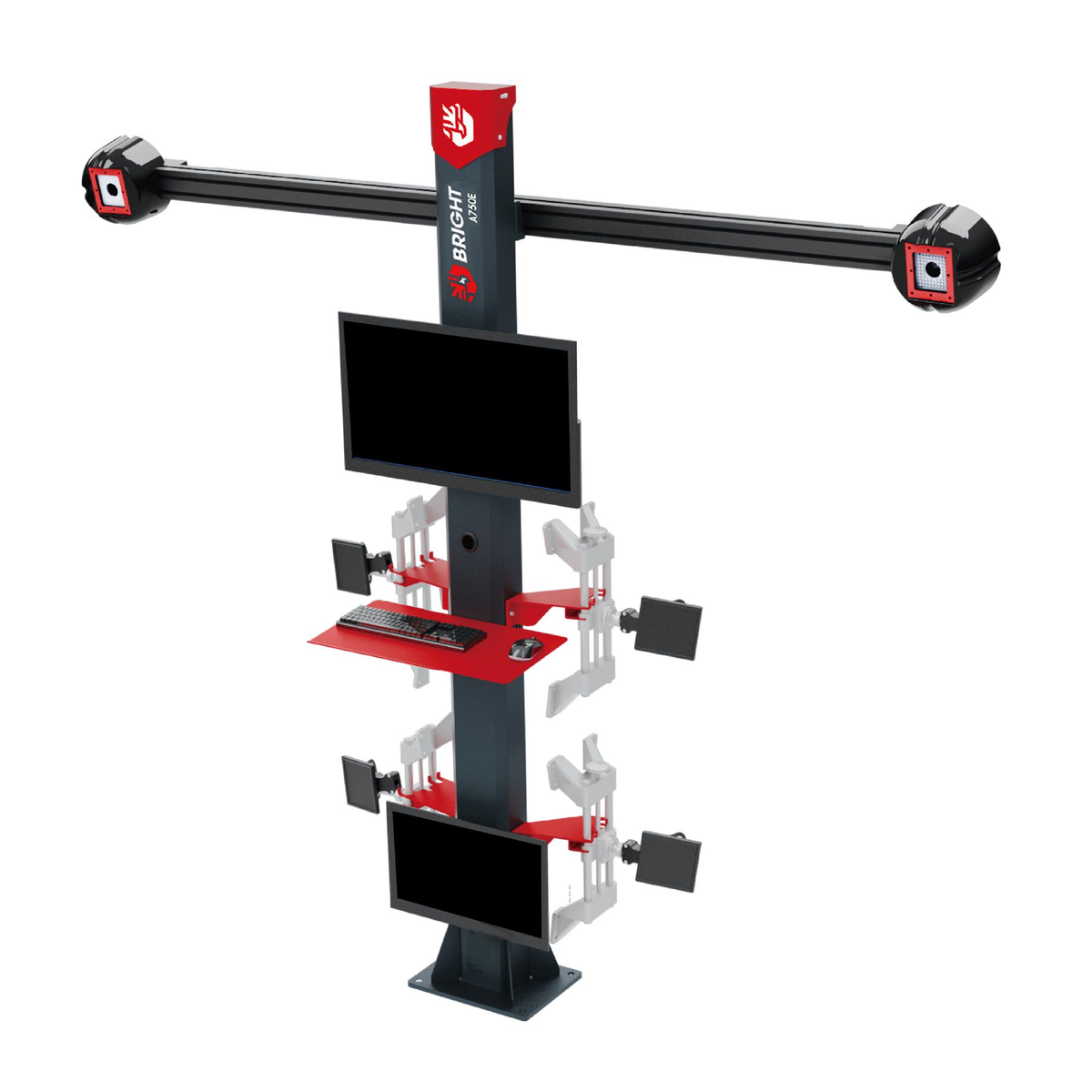

BRIGHT A750E-E
Suitable
Optional
Unsuitable
Technical Data
Name
Parameter (Accuracy)
Name
Parameter (Accuracy)
Voltage
110~230V AC
Phase Number
Single-phase
Frequency
50-60HZ
Power
500W
Operating Temperature
0-40°C
Storage and Transportation Temperature
-10-60°C
Light Intensity
>500LUX
Humidity
20-80%
Installation Distance
1800-3200mm
Camera Measurement Range
8000mm
Total Toe
±20° (±0.05°)
Individual Toe
±10° (±0.02°)
Camber Angle
±10° (±0.05°)
Caster Angle
±30° (±0.05°)
Kingpin Inclination Angle
±30° (±0.05°)
Thrust Angle
±10° (±0.03°)
Symmetry Deviation
±10° (±0.03°)
Gross Weight
350kg
Net Weight
317kg
The lifting column is controlled by software for automatic Optional Accessories tracking, and the camera automatically identifies and locates the target plate to adjust the beam height, with a lifting range of 530mm ~ 2300mm.
6.3-megapixel industrial-grade camera; the camera is equipped with a fully automatic exposure function, and its anti-light interference capability is improved by 20%.
32-inch high-definition monitor from the well-known brand Philips, with a resolution of 1920x1080.
Newly upgraded 3D-PLUS software, with added vehicle model LOGO options, a dedicated search frame, full data display, and separate data zoom-in display.
Remote database upgrade; 36 national languages are provided as standard. 6- Target with new engraving technology; its processing accuracy is improved by 80%, and its service life is extended by 50%.
ASUS mini computer, equipped with 16G memory, an Intel Extension gripper 15° ROC compensation -Italian Patent Suspension tuning guidance Calibration tools processor, and an officially licensed Windows 10 system. Aluminum alloy fixture, with a supporting and clamping range of 11 ~ 24 inches.
Upgradeable to the Smart-ROC function; with a 15° cart angle, it shortens the cart distance, improves cart efficiency, and enhances measurement accuracy.
Upgradeable fixture extension claws, applicable to a range of 11 - 26 inches.
