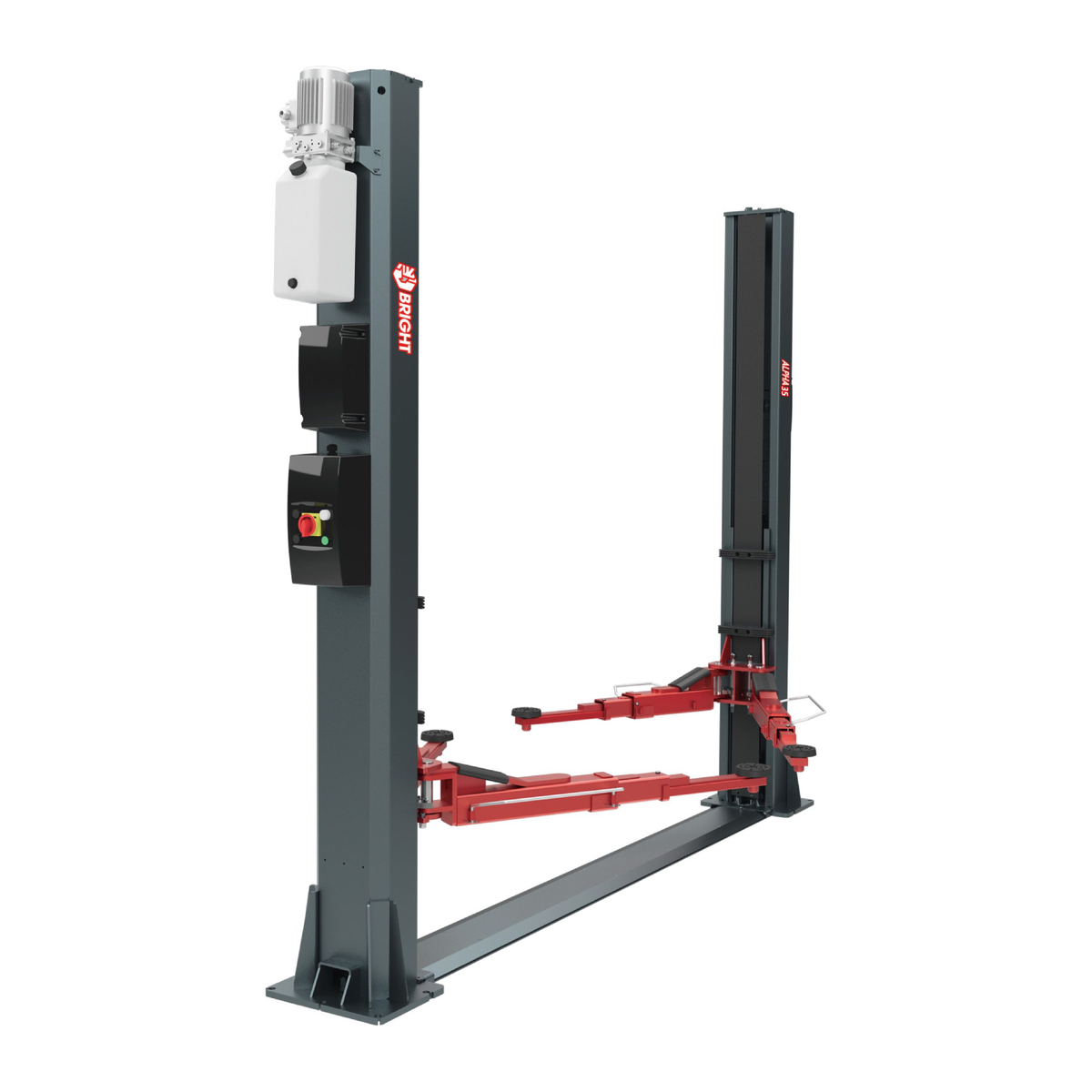

BRIGHT ALPHA 35/35M
BRIGHT ALPHA 35/35M
Two post lift with bottom connection
3500
KG
H 2840mm W 2810mm
2POST LIFT 3.5T MANUAL RELEASE
ALPHA 35
1
H 2840mm W 2810mm
2POST LIFT 3.5T MANUAL RELEASE
ALPHA 35M
2

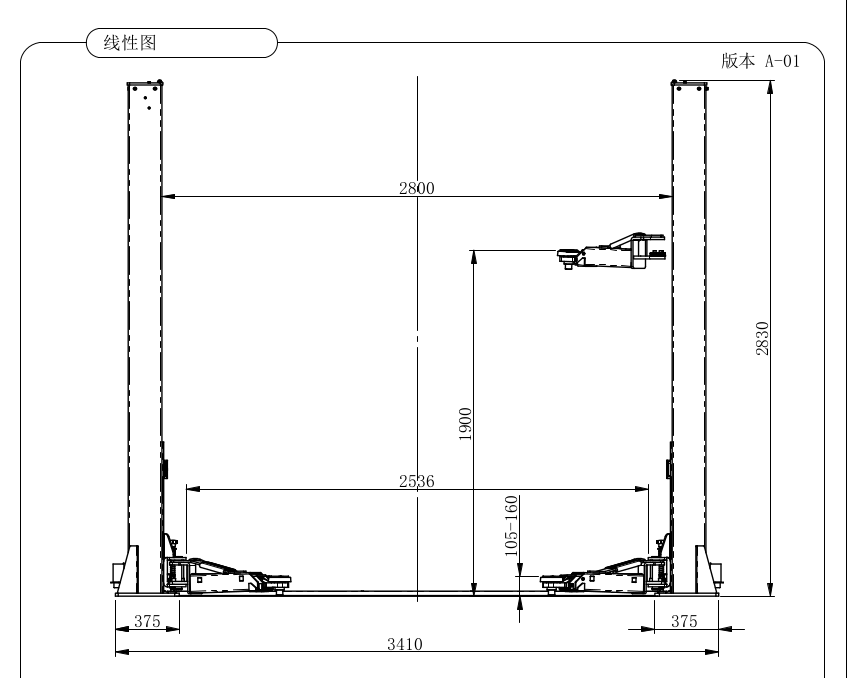

Line Drawing
BRIGHT ALPHA 35/35M
ELECTRIC RELEASE/MANUAL RELEASE
Technical Data
| 35 | 35M | |
|---|---|---|
| Lifting capacity | 3500kg | 3500kg |
| Lifting time | 50s | 50s |
| Descent time | 50s | 50s |
| Motor power | 3Kw | 2.6Kw |
| Lifting height | 2000mm | 2000mm |
| Minimum height | 100mm | 95mm |
| Total width | 3560mm | 3671mm |
| Gross weight | 749Kg | 751Kg |
| Package size (main body) | 2866*842*510mm | 2902*842*593mm |
Nylon slide pads, long life-used, Maintenance free for its lifetime. The diameter of the cylinder craft is 50mm,3-year warranty.
Environment-friendly and low noise design. The column adopts an 8-fold bending structure and built-in reinforcement to maximize the column strength.
Base plate thickness is 16/20mm; Vulcanized rubber pad has longer life. Equipped with switch protection for chain.
Each lift passes the test of 115% dynamic load and 150% static load, safe and reliable.
Bright’s lift is equipped with product liability insurance
