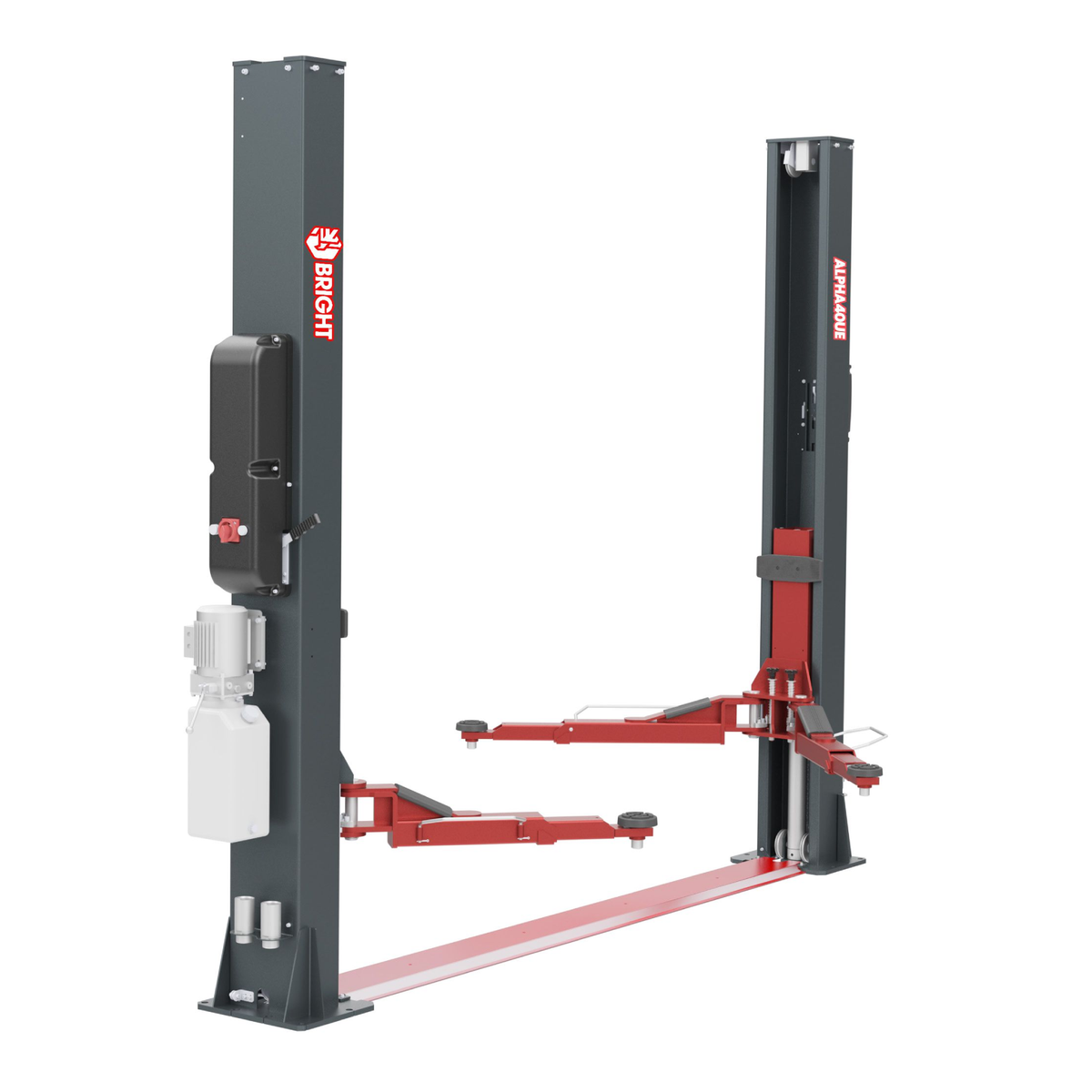

BRIGHT ALPHA 40E/40UE
BRIGHT ALPHA 40E/40UE
Base connection two post
chain drive lift
4000
KG
H 2830mm W 2800mm
1 2POST LIFT 4T BLATERAL MANUAL UNBLOCK
ALPHA 40E
1
H 2818mm W 2800mm
1 2POST LIFT 4T BLATERAL MANUAL UNBLOCK
ALPHA 40UE
2
BRIGHT ALPHA 40E/40UE
MANUAL RELEASE VERSION
Technical Data
| 40E | 40UE | |
|---|---|---|
| Lifting capacity | 4000kg | 4000kg |
| Lift time | 40s | 40s |
| Lift Height | 1900mm | 1900mm |
| Min. Height | 98mm | 98mm |
| Overall Height | 2830mm | 2818mm |
| Post Distance | 2800mm | 2800mm |
| Overall Width | 3310mm | 3310mm |
| Motor Power | 2.2KW | 2.2KW |
| Power Input | 220V/380V | 220V/380V |
| Gross Weight | 615KG | 630KG |
| Packing Dimensions | 2900*460*700mm | 2900*460*700mm |
| Accessory Box Dimensions | 780*280*310mm | 780*280*310mm |
| Locking method | Bilateral Manual Unlock | Unilateral Manual Unlock |
5mm Plate thickness post ensuring high intensity
16mm Base plate stabilizes foundation
High strength carriage design, the overall 14MM plate bending
Reinforced lifting arm prevent from deformation
28MM base connection height for smooth vehicle passage
115MM pulley reduce steel wire wearing, stabilize movement
Preserved two way mounting holes, the pump stationcan beinstalled in two orientations on demand
