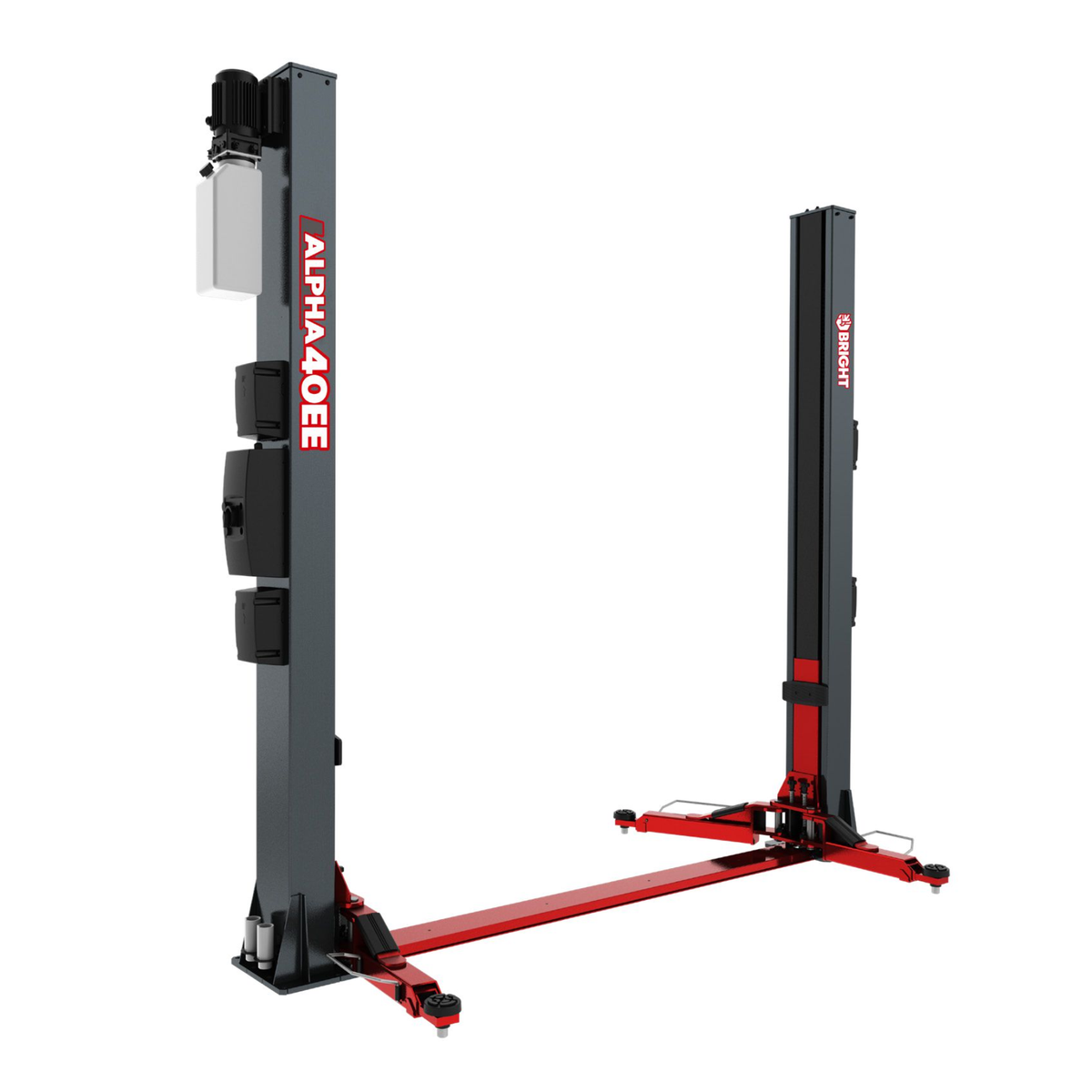

BRIGHT ALPHA 40EE
BRIGHT ALPHA 40EE
Base connection two post
chain drive lift
4000
KG
H 2818mm W 2800mm
2POST LIFT 4T BLATERAL MANUAL UNBLOCK
ALPHA 40EE
1
BRIGHT ALPHA 40EE
ELECTRIC RELEASE VERSION
Technical Data
Lifting capacity
4000kg
Lift time
40s
Lift Height
1900mm
Min. Height
98mm
Overall Height
2818mm
Post Distance
2800mm
Overall Width
3310mm
Motor Power
2.2KW
Power Input
220V/380V
Gross Weight
665KG
Packing Dimensions
2900*460*700mm
Accessory Box Dimensions
780*280*310mm
operating control system with 24V safety voltage
Column with 5mm steel plate to ensure strength
column bottom foot plate with 16mm to ensure the oundation is stable
High strength carriage design, the overall 14MM plate bending
Lifting arm with strengthening design, prevent deformation
The floor connection plate height is only 28mm, convenient to drive over it
With diameter 115mm steel rope pulley, preventing steel rope wear out, for more smooth operation
Equipped with foot guardrail as standard
