BRIGHT ALPHA 9F
BRIGHT ALPHA 9F
Base connection two post
chain drive lift
9000
LB

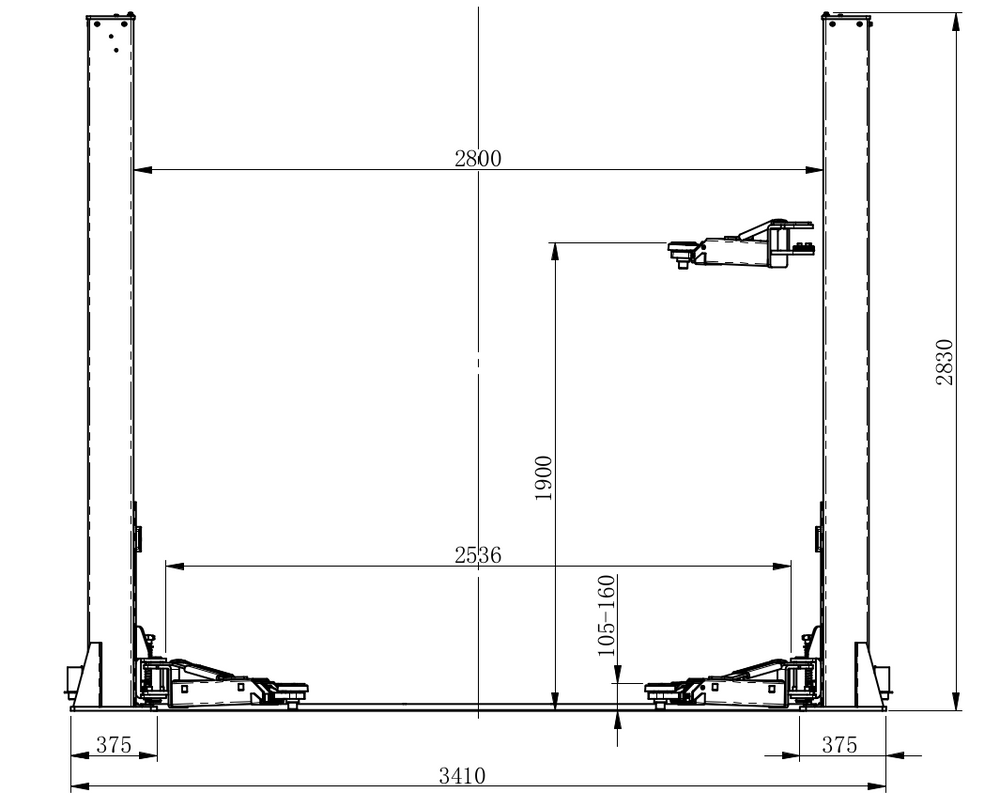

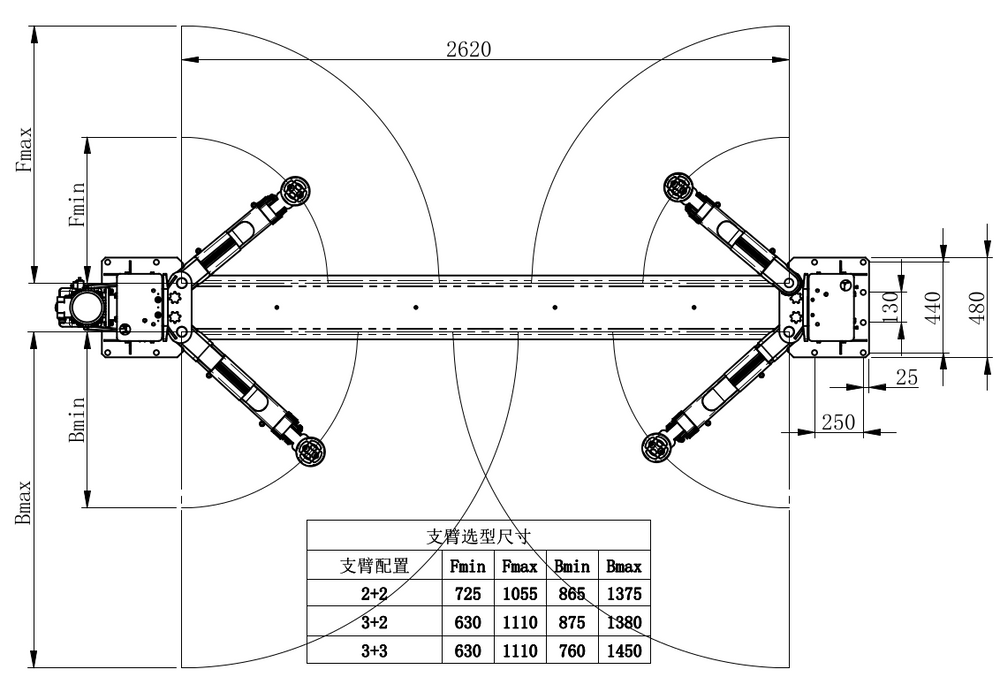

Line Drawing
BRIGHT ALPHA 9F
MANUAL RELEASE VERSION !
Technical Data
Lifting capacity
9000LBS
Lift time
50s
Max lifting Height
74.8"
Total Width
134.25"
Drive-Through Clearance
99.85"
Floor to Overhead Switch
28.5"-41.5"
Rear Arm Reach (min/max)
34"-54.1"
Drop-in Pad Height
4.15"
Inside Column Width
110.25"
Maximum Height
111.4"
Motor Power
3HP
Power Input
220V
Gross Weight
1500lbs
Packing Dimensions
113.6"L × 19.9"W × 30.7"H
Accessory Box Dimensions
31.5" × 9.85" × 13"
Unlock pattern
Manual release from two side
5mm Plate thickness post ensuring high intensity
16mm Base plate stabilizes foundation
High strength carriage design, the overall 14MM plate bending
Reinforced lifting arm prevent from deformation
28MM base connection height for smooth vehicle passage
115MM pulley reduce steel wire wearing, stabilize movement
Preserved two way mounting holes, the pump stationcan beinstalled in two orientations on demand
