LIFT LINE SERIES

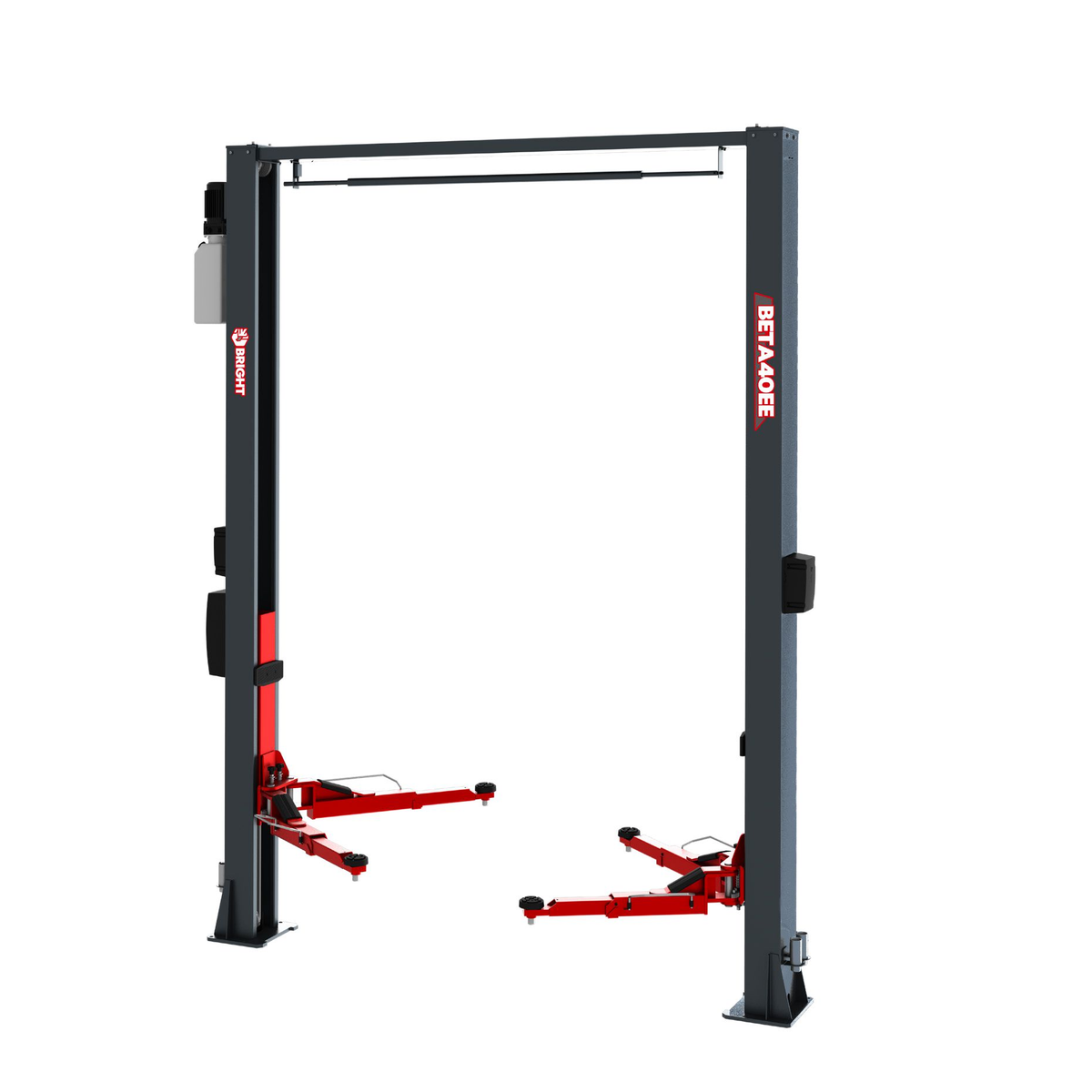

BRIGHT BETA 40EE
BRIGHT BETA 40EE
Top connection
two post chain drive lift
4000
KG
H 3700mm W 2800mm
ELECTRIC UNLOCKING TWO POST LIFT 4T
BETA 40EE
1
Technical Data
Lifting capacity
4000kg
Lift Time
40s
Lift Height
1900mm
Min. Height
98mm
Overall Height
3700mm
Post Distance
2800mm
Overall Width
3310mm
Motor Power
2.2kW
Power Input
220V/380V
Gross Weight
704kg
Packing Dimensions
3765×460×700mm
Accessory Box Dimensions
800×300×325mm
Locking Method
Electric unlocking
5mm Plate thickness post ensuring high intensity
16mm Base plate stabilizes foundation
Reinforced lifting arm prevent from deformation
115MM pulley reduce steel wire wearing, stabilize movement
24V electronic control, CE compliant, safe and reliable
