LIFT LINE SERIES

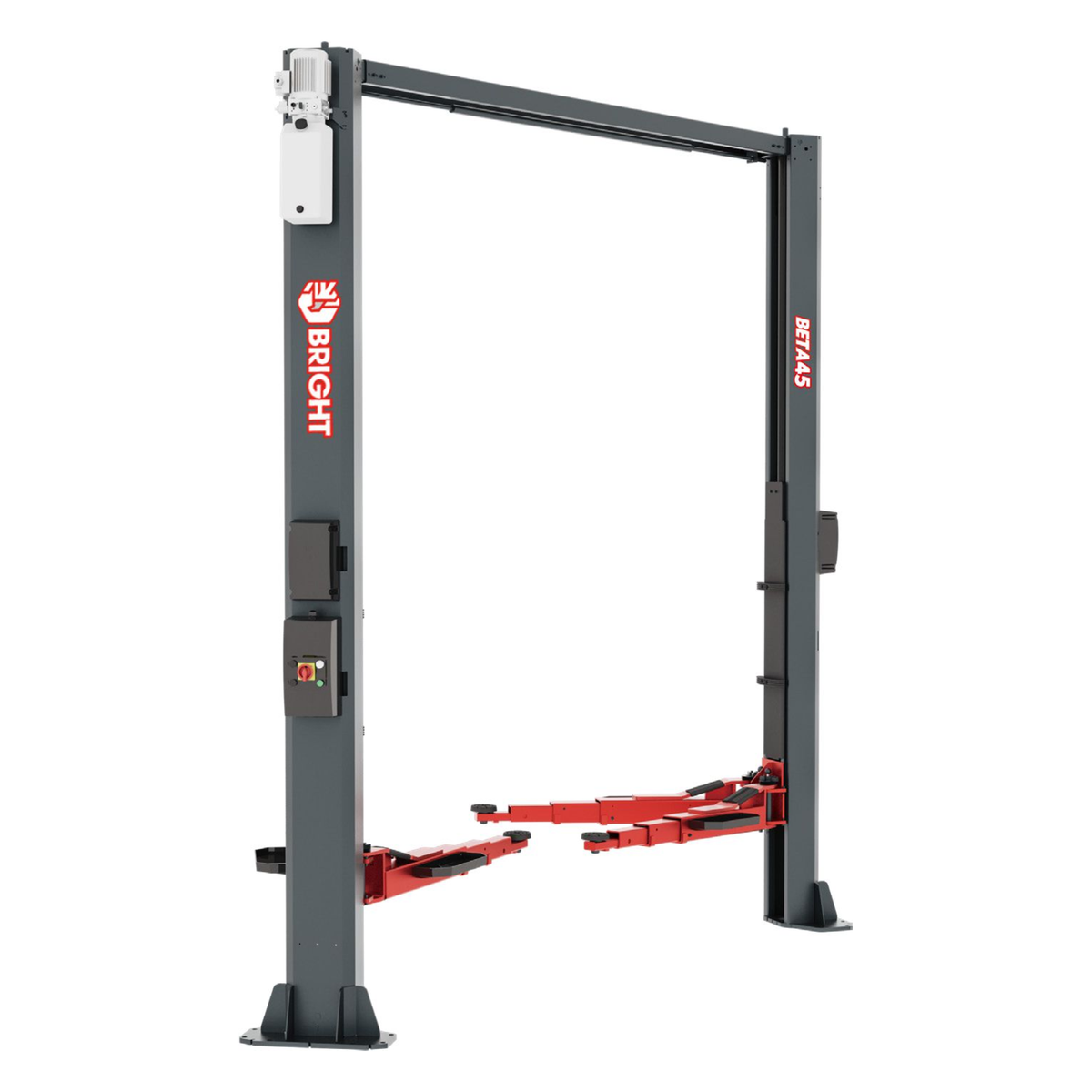

BRIGHT BETA 45/45S
BRIGHT BETA 45/45S
Two post lift top connection
4500
KG
H 4050mm W 3258/3125mm
2 COLUMNS POST LIFT HIGH PESSAGE 4050mm 4.5T
BETA 45
1
H 3700mm W 3258/3125mm
2 COLUMNS POST LIFT HIGH PESSAGE 3700mm 4.5T
BETA 45S
2
Technical Data
| 45 | 45S | |
|---|---|---|
| Lifting capacity | 4500kg | 4500kg |
| Lifting time | 50s | 45s |
| Lowering time | 50s | 45s |
| Motor power | 3Kw | 3Kw |
| Lifting height | 2050mm | 1870mm |
| Minimum height | 115mm | 115mm |
| Total width | 3987/4039mm | 3987/4039mm |
| Total weight | 984Kg | 949Kg |
| Package size (main body) | 3989*1091*520mm | 3627*1091*520mm |
Provides both symmetric and asymmetric mounting modes for greater flexibility
Nylon slide pads, long life-used, Maintenance free for its lifetime
Environment-friendly and low noise design. Equipped with 600mm column extension frame and 1200mm column extension frame.
Two different column extensions for different space options. The column adopts an 8-fold bending structure and built-in reinforcement to maximize the column strength.
Base plate thickness is 20mm, Support arm thickness is 6/8mm.
Parachute valve inside the cylinder ensures user safety. Vulcanized rubber pad has long life.
Each lift passes the test of 115% dynamic load and 150% static load,safe and reliable.
Bright’s lift is equipped with product liability insurance
