LIFT LINE SERIES
BRIGHT BETA 45UE-DWH/45UE-DW/45UE-DWS
BRIGHT BETA 45UE-DWH/45UE-DW/45UE-DWS

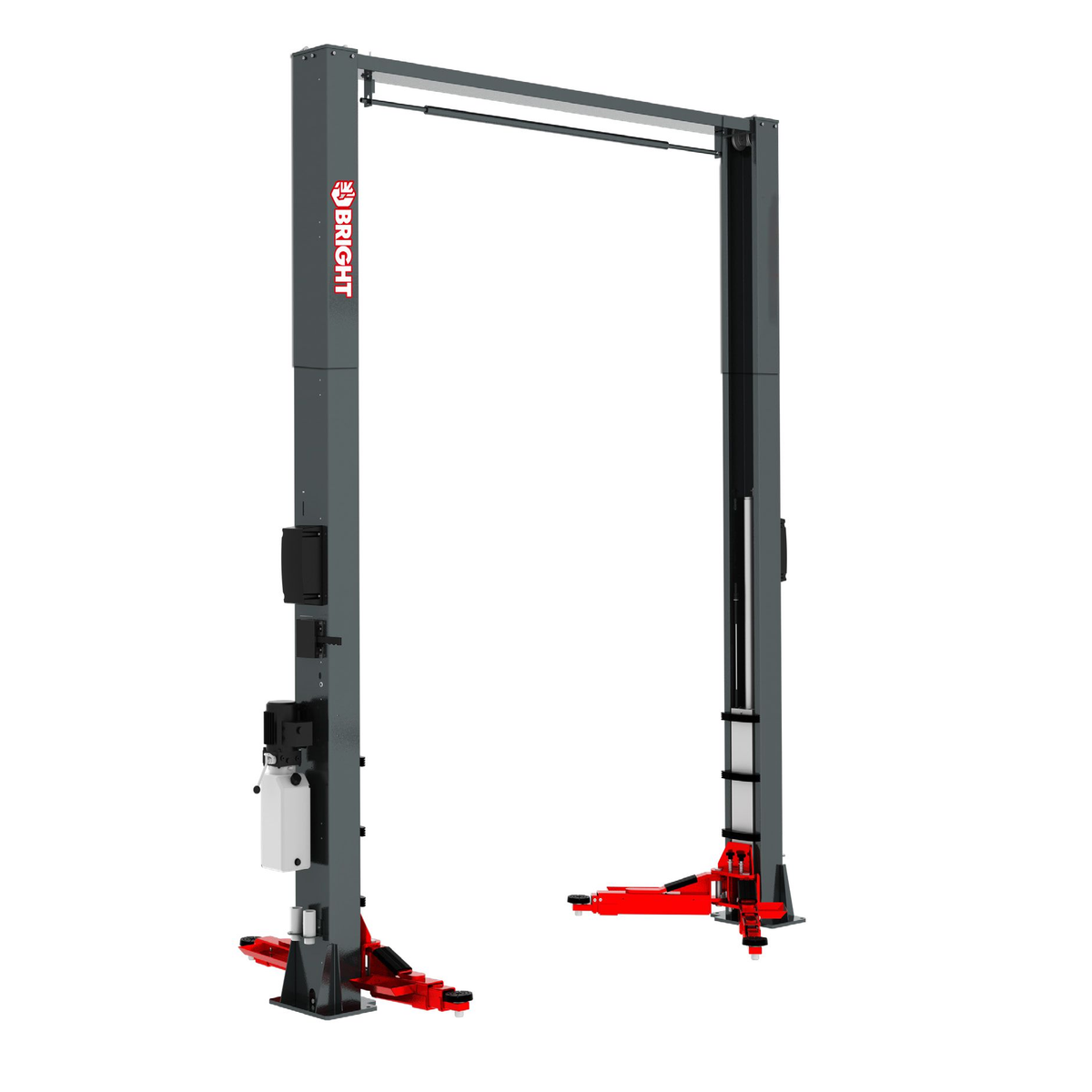

Top connection
two post direct drive lift
4500
KG
H 4030mm W 2900mm
2 COLUMNS POST LIFT HIGH PASSAGE 4030mm 4.5T
BETA 45UE-DWH
1
H 3940mm W 2900mm
2 COLUMNS POST LIFT HIGH PASSAGE 3940mm 4.5T
BETA 45UE-DW
2
H 3800mm/3600mm W 2900mm
2 COLUMNS POST LIFT HIGH PASSAGE 3800/3600 mm 4.5T
BETA 45UE-DWS
3
Technical Data
| 45UE-DWH | 45UE-DW | 45UE-DWS | |
|---|---|---|---|
| Lifting capacity | 4500kg | 4500kg | 4500kg |
| Lift Time | 40s | 40s | 40s |
| Lift Height | 1900mm | 1900mm | 1900mm |
| Min. Height | 105mm | 105mm | 105mm |
| Overall Height | 4030mm | 3940mm | 3800/3600mm |
| Width between columns | 2900mm | 2900mm | 2900mm |
| Total width | 3410mm | 3410mm | 3410mm |
| Motor Power | 2.2KW | 2.2KW | 2.2KW |
| Power Input | 220V/380V | 220V/380V | 220V/380V |
| Gross Weight | 870KG | 870KG | 870KG |
| Packing Dimensions | 2945*460*760mm | 2945*460*760mm | 2945*460*760mm |
| Accessory Box Dimensions | 790*280*310mm | 790*280*310mm | 790*280*310mm |
| Unlock pattern | Manual release from one side |
Column with 5.75mm steel plate to ensure strength
Column bottom foot plate with 20mm to ensure the foundation is stable
High strength extra long carriage design, the overall 14MM plate bending
Lifting arm with strengthening design, prevent deformation
The high strength fine teeth locking mechanism, more closely meshing
With diameter 115mm steel rope pulley, preventing steel rope wear out, for more smooth operation
