LIFT LINE SERIES

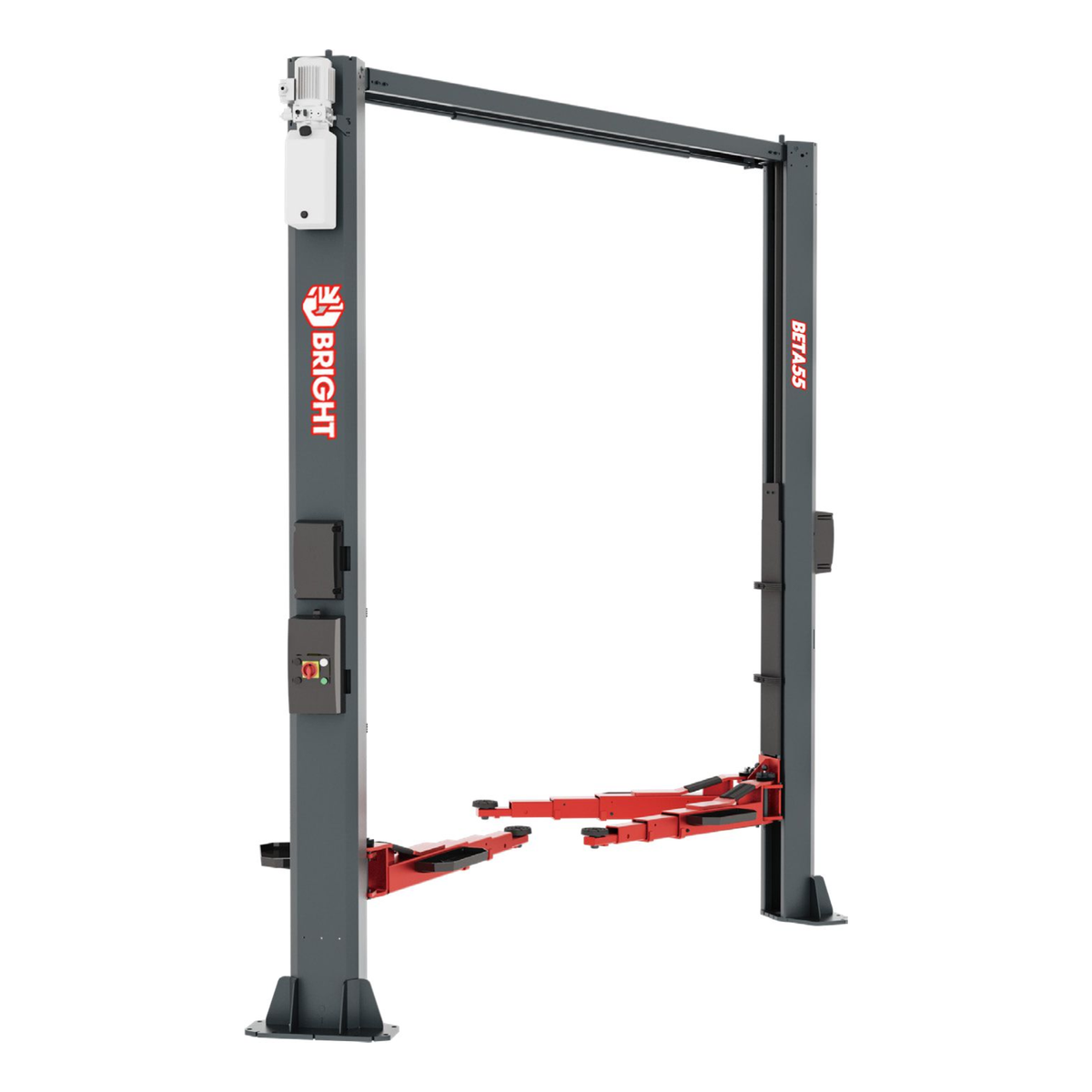

BRIGHT BETA 55/55S
BRIGHT BETA 55/55S
Two post lift top connection
5500
KG
H 4050mm W 3258/3125mm
2 COLUMNS POST LIFT HIGH PESSAGE 4050mm 5.5T
BETA 55
1
H 3700mm W 3258/3125mm
2 COLUMNS POST LIFT HIGH PASSAGE 3700mm 5.5T
BETA 55S
2
Technical Data
| 55 | 55S | |
|---|---|---|
| Lifting capacity | 5500kg | 5500kg |
| Lifting time | 50s | 45s |
| Lowering time | 50s | 45s |
| Motor power | 3Kw | 3Kw |
| Lifting height | 2050mm | 1870mm |
| Minimum height | 115mm | 115mm |
| Total width | 4053/4180mm | 4053/4180mm |
| Total weight | 1068Kg | 1033Kg |
| Package size (main body) | 3988*1174*550mm | 3627*1174*550mm |
Provides both symmetric and asymmetric mounting modes for greater flexibility
Nylon slide pads, long life-used, Maintenance free for its lifetime
Environment-friendly and low noise design. Equipped with 600mm column extension frame and 1200mm column extension frame.
Two different column extensions for different space options. The column adopts an 8-fold bending structure and built-in reinforcement to maximize the column strength.
Base plate thickness is 20mm, Support arm thickness is 6/8mm.
Parachute valve inside the cylinder ensures user safety. Vulcanized rubber pad has long life.
Each lift passes the test of 115% dynamic load and 150% static load,safe and reliable.
Bright’s lift is equipped with product liability insurance
