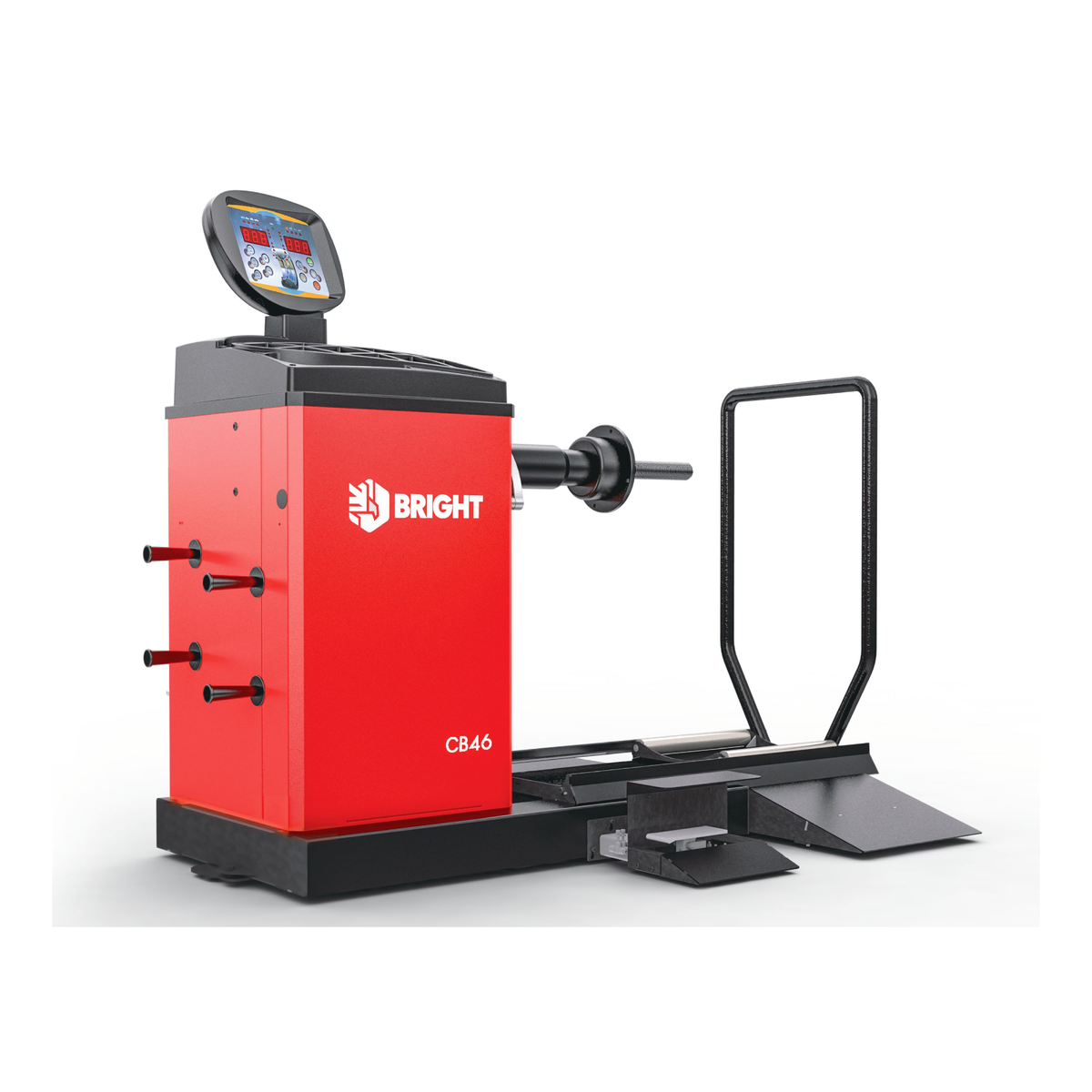

BRIGHT CB46
Suitable
Optional
Unsuitable
TRUCK WHEEL BALANCER SERIES
BRIGHT CB46
BRIGHT CB46
It is the first in China to integrate variable frequency technology into tire balance
to meet the full size of existing tires
to meet the full size of existing tires
1200 MM
1"-28"
200 kg
2"-20"
car 9 sec truck 20 sec
Frequency conversion technology
BRIGHT CB46
Compatible with car and truck balance. Frequency
conversion processing system, 100 percent accurate
positioning. Two values automatic input. Smart switch "STD"
and "ALS2" 6 o 'clock laser light indicator stick lead. Ultra-low
noise class 8 motor
Technical Data
Rim diameter
1” - 28”
Max wheel weight
200 kg
Max wheel diameter
1200 mm
Rim width
2” - 20”
Precision
±1g (car) / ±10g (truck)
Motor Power
0.37 kW
Power supply
100/230V 1ph
Rotation
80 rpm / 120 rpm
Balancing time
9s (car) / 20s (truck)
Second test
≤5g
Machine dimensions
1600×1100×1480 mm
Packing dimensions
1700×1100×1240 mm
Net weight
285 kg
Gross weight
318 kg
Qty in 40FT
14 sets
Italian software, easy to operate
With truck and car switching function
Two values automatic input
The frequency converter drives the motor
Standard lifting device
Intelligent switch dynamic STD/ Alu Alloy ALS2
With six o 'clock laser indicating function
