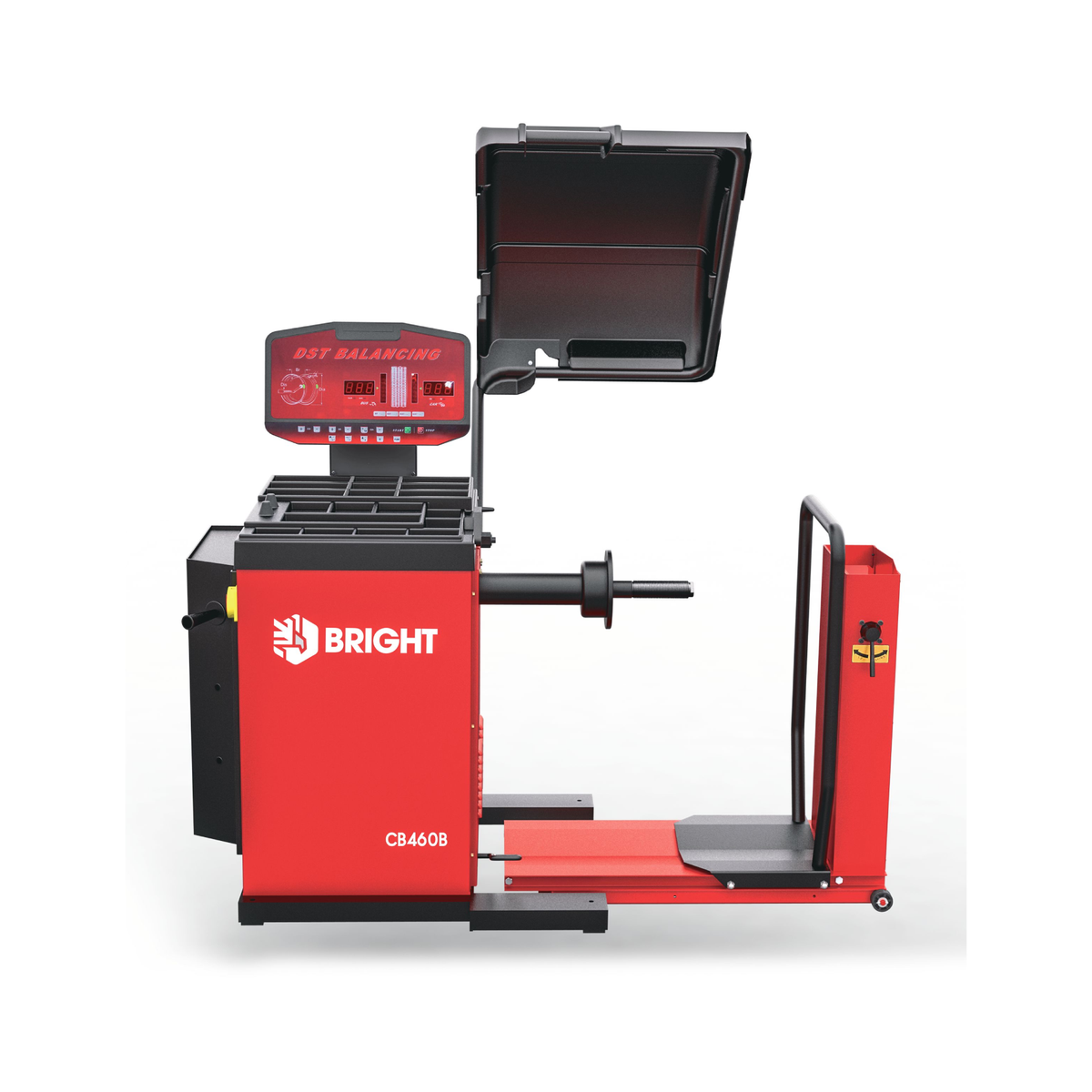

BRIGHT CB460 B
Suitable
Optional
Unsuitable
TRUCK WHEEL BALANCER SERIES
BRIGHT CB460 B
BRIGHT CB460 B
Strong and powerful modeling, for the bus tire balance has excellent performance, larger
operation panel, clear operation instructions, fast hand
operation panel, clear operation instructions, fast hand
1200 MM
10"-24"
200 kg
1,5" -20"
car 9 sec truck 20 sec
car 200 rpm truck 100 rpm

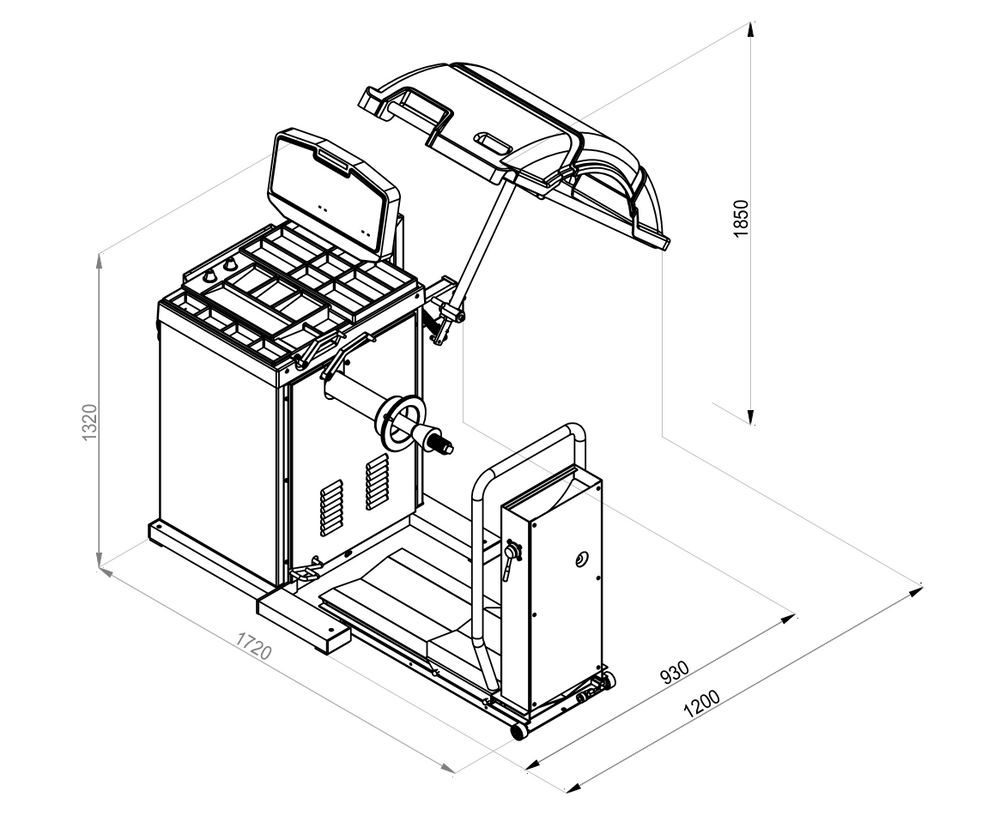

Line Drawing
Technical Data
Rim diameter
10” - 24”
Max wheel weight
200 kg
Max wheel diameter
1200 mm
Rim width
1.5” - 20”
Precision
±1g (car) / ±10g (truck)
Motor Power
0.55 kW
Power supply
100/230V/380V 1ph
Rotation
200 rpm (car) / 100 rpm (truck)
Balancing time
9s (car) / 20s (truck)
Second test
≤5g
Machine dimensions
1330×1280×1320 mm
Packing dimensions
1300×990×1150 mm
Net weight
220 kg
Gross weight
270 kg
Qty in 40FT
42 sets
With complete independent intellectual property rights Increase the digital tube display data
With truck and car switching function
Optional base 5 or base 10 with 3 aluminum alloy modes and static modes
With foot brake
Convert between inch and mm with wheel lifter
High definition digital tube display
