BRIGHT CB75/CB75 S
Suitable
Optional
Unsuitable
WHEEL BALANCER SERIES
BRIGHT CB75/CB75 S
BRIGHT CB75/CB75 S
Challenge the extreme precision, satisfy the
balancing request for all the tires with different
sizes.
balancing request for all the tires with different
sizes.
1118 MM
1"-28"
70 kg
1,5" -20"
7 sec
140 rpm

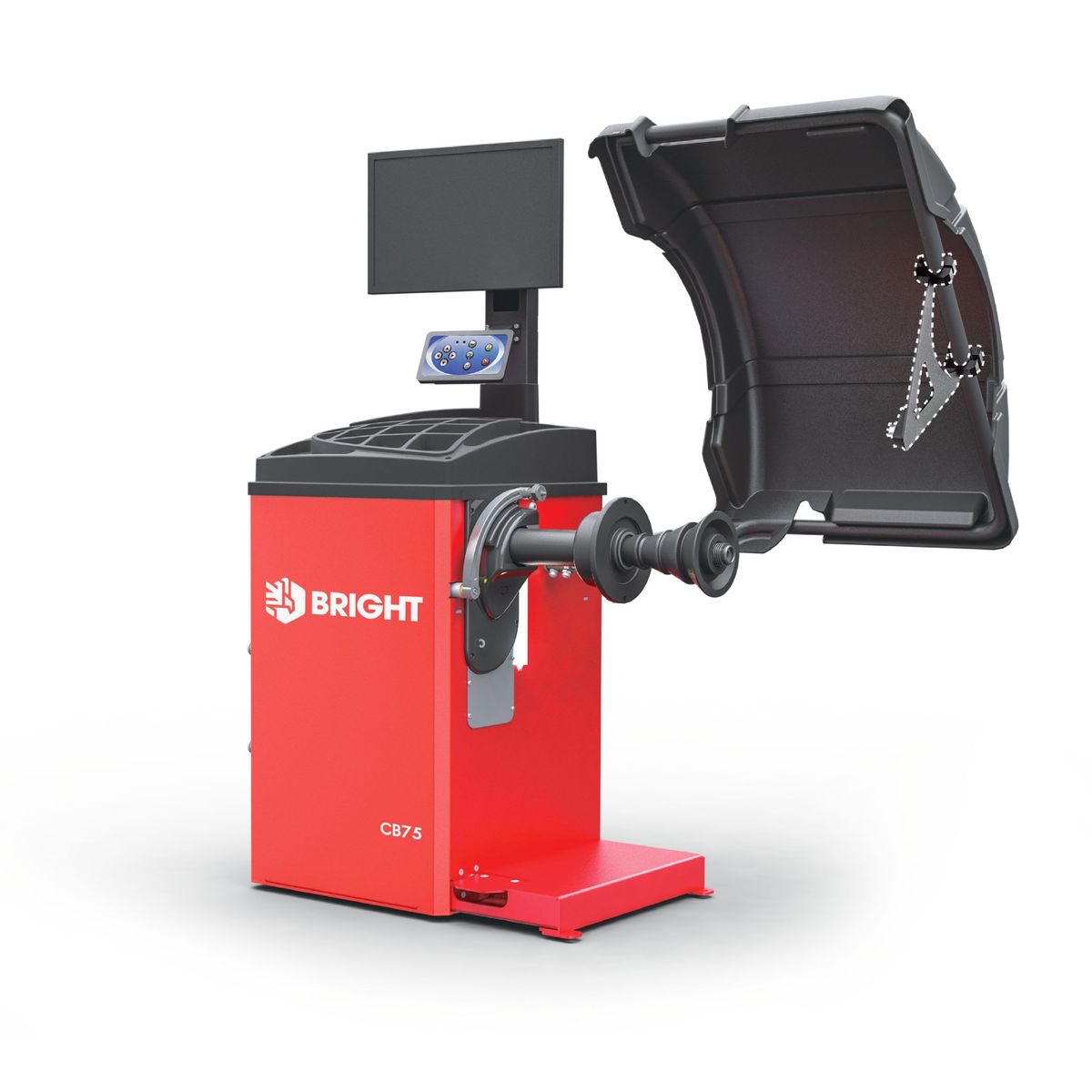

BRIGHT CB75/CB75 S
Small body with huge function, large 19 inch LCD monitor
with lively image, two values automatically input, pedal brake
function which ensure the position more accurate. Laser light
indicates at six o’clock position to stick the weight, conform to
ergonomics. Classics comes from discovery.
Technical Data
Rim diameter
1” - 28” inch
Max wheel weight
70 kg
Max wheel diameter
1118 mm
Rim width
1.5” - 20” inch
Precision
±1g
Motor Power
90W
Power supply
100/230V 1ph
Rotation per minute
140rpm
Balancing time
7s
Second time mounting test
≤5g
Machine dimensions
1300×980×1490 mm
Packing dimension
990×760×1160 mm
Net weight
130 kg
Gross weight
168 kg
Loading in 40 Ft. container
72 sets
The machine has Italian software, user-friendly.
Automatic acquisition of diameter, distance . The machine has 7 sec 5 ALU balancing programs and 2 ALU smart balancing programs.
The machine also has optimization function and weight split function.
The diameter of balancing shaft is 40mm so it can work with standard accessories.
The machine has motorcycle balancing programs, it can balance various motorcycle wheels.
The calibration is easy to proceed, the machine can quickly get back its precision.
The machines can be optionally equipped with motorcycle adaptor.
The machine is equipped with 19" LCD monitor.
The machine will go into stand-by when it is not being used for a certain time.
LED illuminator for easy and clear operation.
Six o’clock weight placement mode, with laser indicating line, fast and convenient.
