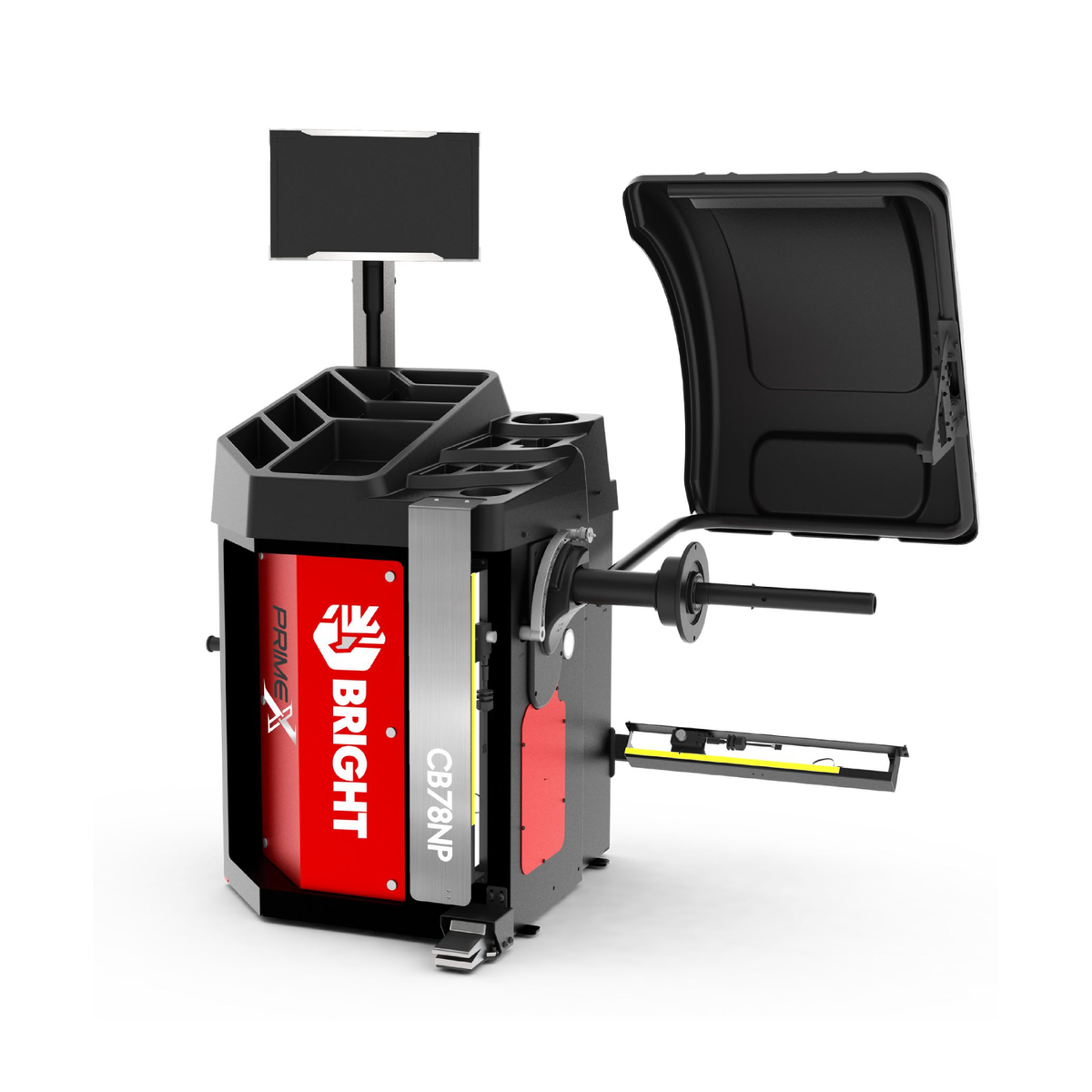

BRIGHT CB78NP/CB78P/CB78S
Suitable
Optional
Unsuitable
WHEEL BALANCER SERIES
BRIGHT CB78NP/CB78P/CB78S
BRIGHT CB78NP/CB78P/CB78S
Non-contact sonar intelligent balancer, frequency conversion technology era is thus
divided.
divided.
1118 MM
1"-28"
70 kg
1,5" -20"
7 sec
Frequency conversion technology
BRIGHT CB78NP/CB78P/CB78S
Equipped with frequency conversion processing system,
100% accurate
positioning. Three sonar non-contact
70 kg
diagnostic tire performance as well as automatic tire width
measurement, ultra low noise level eight motor
| CB78NP | CB78P | CB78S | |
|---|---|---|---|
| Aesthetics design | Fresh Appearance | Original Appearance | Original Appearance |
| Pneumatic shaft | Standard | Optional | Optional |
| Tire performance diagnostic | Yes | Yes | No |
| Sonar detection | three | three | one |
Technical Data
Rim diameter
1” - 28”
Max wheel weight
70 kg
Max wheel diameter
1118 mm
Rim width
1.5” - 20”
Precision
±1g
Motor Power
0.37kW
Power supply
100/230V 1ph
Rotation
140rpm
Balancing time
7s
Second test
≤5g
Machine dimensions
1390×980×1470 mm
Packing dimensions
1400×880×1170 mm
Net weight
154 kg
Gross weight
192 kg
Qty in 40FT
32 sets
Italian software, simple operation
Automatic input of various tire data, including custom aluminum tire patterns, unbalance optimization (opt), and balanced lead blocks
The spindle joint surface and locking thread are treated by ultrasonic quenching
Motorcycle mode unique design, combined withvarious of fixture.
With sonar sensor, accurate measurement tire width It has transverse and longitudinal sonar sensors to measure the movement curve of the tire tread on the front and side
19 inch touch display design, with universal adjustment support, can operate the machine from any Angle
energy saving mode
Inverter drive motor, low sound, accurate positioning LED light
Intelligent switch dynamic STD/ Aluminum Alloy ALS2
Six o 'clock laser indicating function
Pneumatic locking shaft, provide comfortable operation and high working efficiency.
