LIFT LINE SERIES

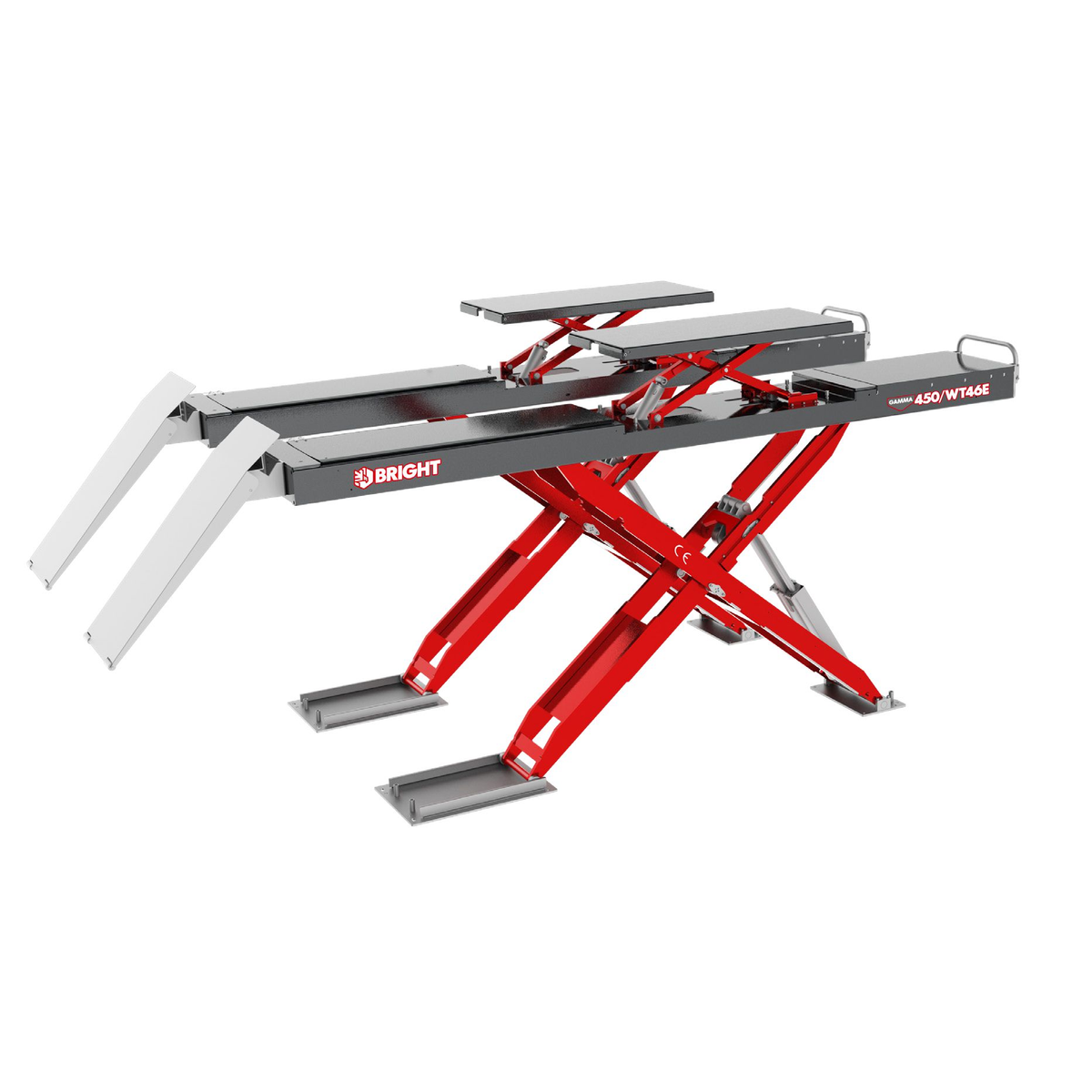

BRIGHT GAMMA 450/WT46(48)E
BRIGHT GAMMA 450/WT46(48)E
Ultra-thin
wheel alignment scissor lift
4500
KG
Technical Data
Main lifting capacity
4500 kg
Lift table lifting capacity
3000 kg
Lifting Height
2070 mm
Minimum height
230 mm
Lifting height of lift table
400 mm
Platform length
4600 (4800) mm
Total length
6110 (6310) mm
Platform width
680 mm
Platform spacing
900 mm
Motor power
3.5 kW
system pressure
250 pa
Gross Weight
2880 (2940) KG
Ultra-thin design ，surface installation and the lift volume can reach 4500KG
The support arm plate structure adopts 16Mn steel plate to lift stably
The lifting height is up to 2070MM, which is more ergonomics
the 680MM widen platform, and the overall plane design on the platform makes it more stable to get on platform
Intelligent computer version control operation is more convenient
Optional secondary descent function
Hydraulic control adopts one-key leveling patent design
Emergency manual unlocking function as standard
24V safe operating voltage
Double-side pulling can be selected for the secondary lifting platform
Selecting infrared synchronous detection device to effectively prevent uneven
platform After 120% dynamic load test and 150% static load test
