LIFT LINE SERIES

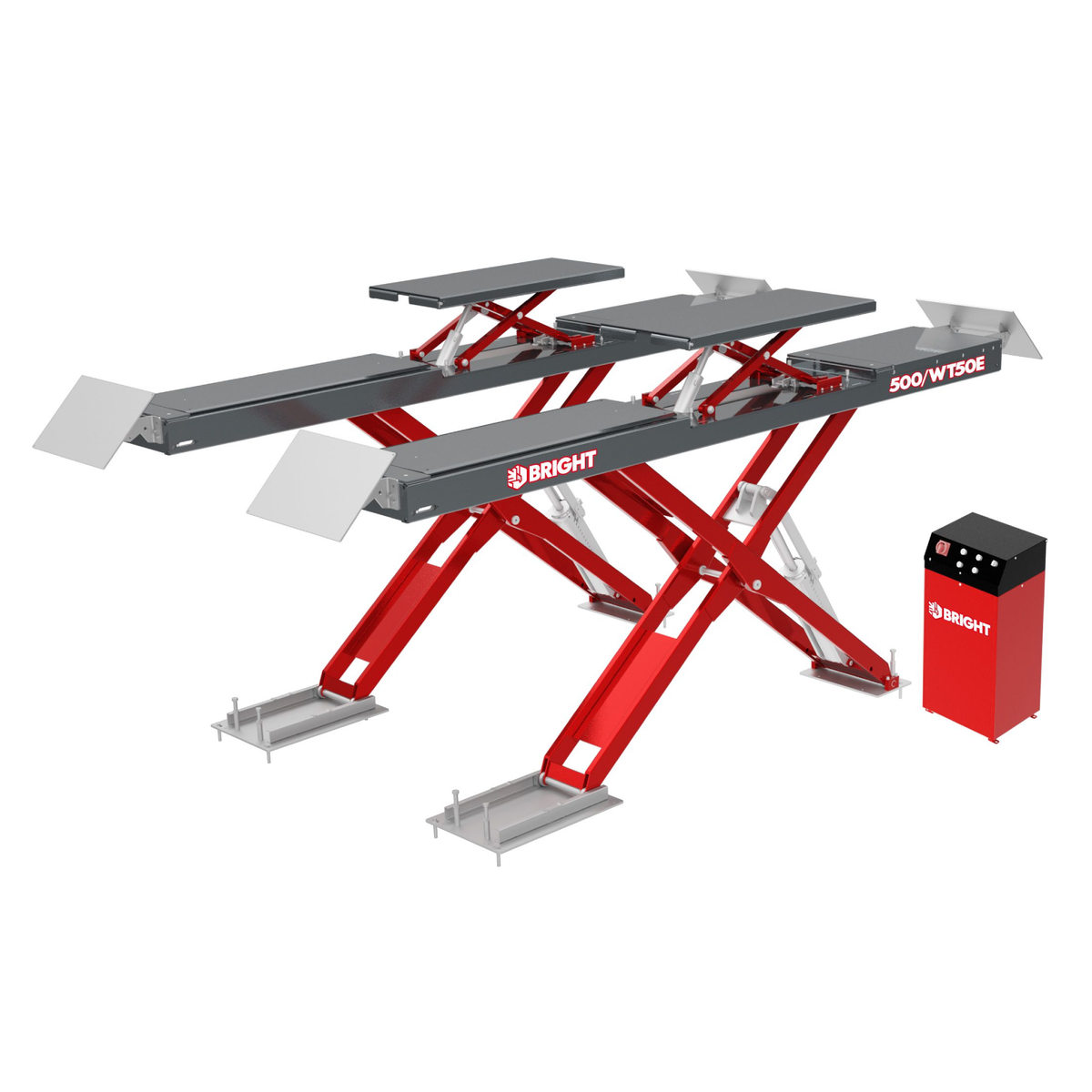

BRIGHT LAMBDA 500/WT50E(52E) LAMBDA 500/W50E
BRIGHT LAMBDA 500/WT50E(52E) LAMBDA 500/W50E
Underground
wheel alignment scissor lift
5000
KG
L 5000/5200mm W 680mm
UNDERGROUND WHEEL ALIGNMENT SCISSOR 5T WITH LIFTING TABLE
500/WT50E(52E)
1
L 5000mm W 680mm
UNDERGROUND WHEEL ALIGNMENT SCISSOR 5T WITH JACKING BEAM
500/W50E
2

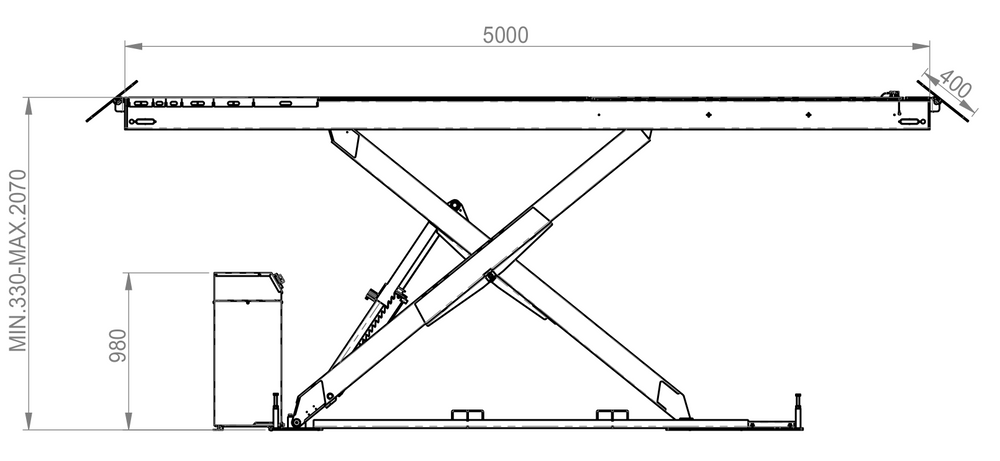

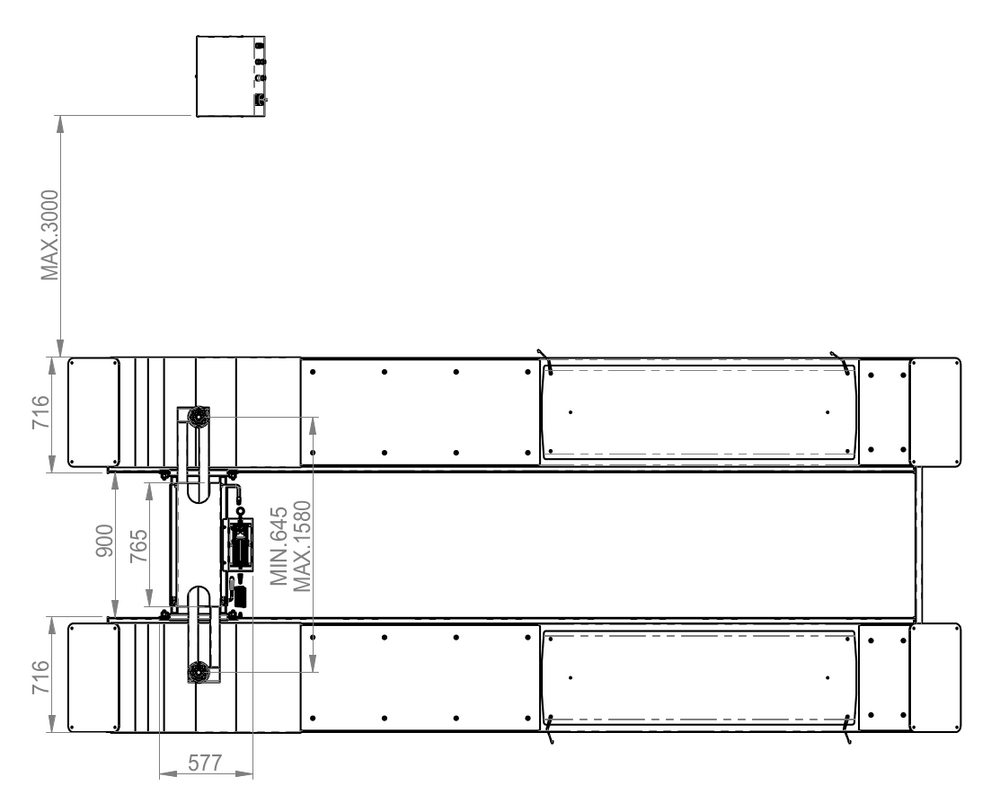

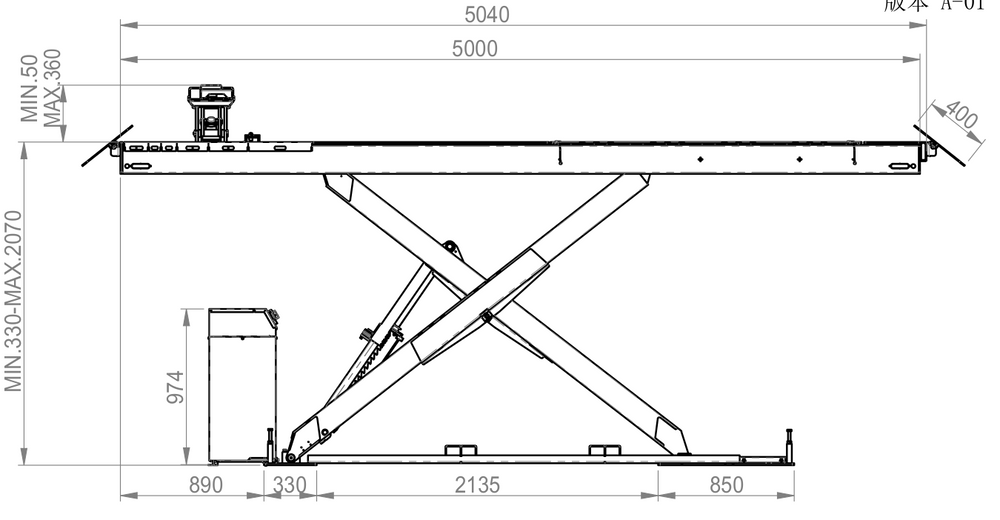

Line Drawing
Technical Data
| 500/WT50E(52E) | 500/W50E | |
|---|---|---|
| Main lifting capacity | 5000kg | 5000kg |
| Lift table lifting capacity | 3000kg | 3000kg |
| Lifting height | 2050mm | 2050mm |
| Minimum height | 330mm | 300mm |
| Platform length | 5000(5200)mm | 5000mm |
| Platform width | 680mm | 680mm |
| Platform spacing | 900mm | 900mm |
| Lifting height of lift table | 400mm | |
| Motor power | 3.5KW | 3.5KW |
| System pressure | 250pa | 250pa |
| Gross weight | 2930(2990)KG | 2930KG |
Underground installation，rated lift capacity can reach 5000 kg
The support arm pipe use 16Mn material thickened pipe wall ,stably lift
The lifting height is up to 2050MM, which is more user-friendly
Widen the 680MM platform. The upper platform is designed for the overall plane. It is more stable to get on the lift
Hydraulic system adopts one-key leveling patent design
Height upper limit switch is standard arrangement
Intelligent computer version control operation is more convenient
Realization of four-wheel positioning function by lengthening side sliding plate made of 16Mn material
Emergency manual unlocking function is standard arrangement
24V safe operating voltage
Platform optional secondary descent function
Passed 120% dynamic load test and 150% static load test
