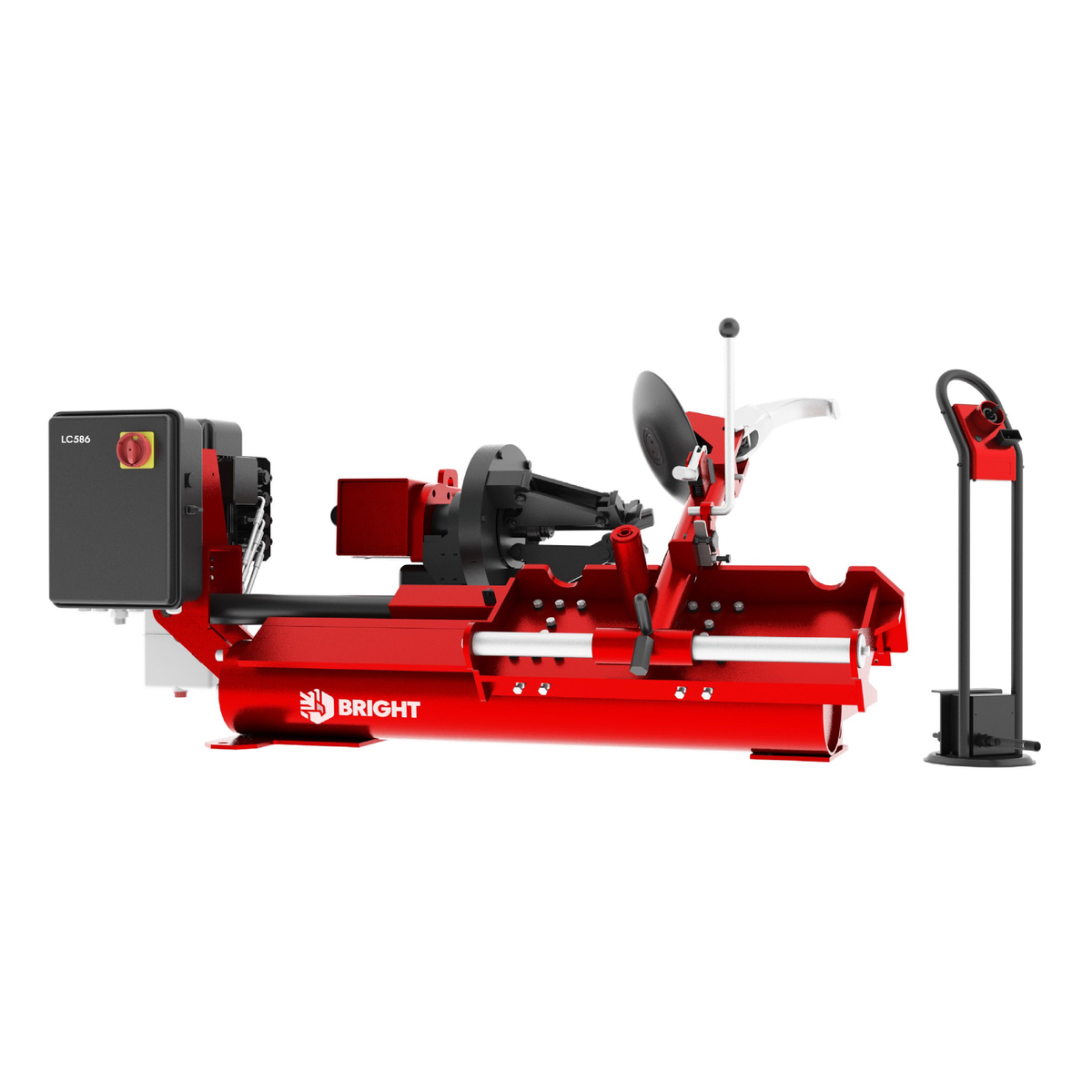

BRIGHT LC586
BRIGHT LC586
1600 MM
14" - 26"
800 MM
BRIGHT LC586
Concentrate on truck tire service for 15 years, non-stop
improving and updating, Now it becomes professional
equipment for truck and bus tires.
Technical Data
Rim size
14” - 26”
Maximum wheel diameter
1600 mm
Rim width
800 mm
Minimum diameter
Φ125 mm
Maximum wheel weight
1000 kg
Pump station power
1.5 kW
Power voltage
220V 50–60Hz 1P
Spindle speed
5.5 r/min
Pump station, electronic control box separate structure to reduce the volume of packaging, convenient transportation.
The pumping station has the inching function , saving energy consumption.
tool arm grooves designing , suitable for changing multiple widths of tire.
Adopting hydraulic control system, reliable clamping, smooth movement.
The spindle rotation is driven by hydraulic motor gears, avoiding the traditional belt transmission slippage phenomenon.
Reserve a place for the accessory.
E-level protection standard is adopted for electric cabinet.
