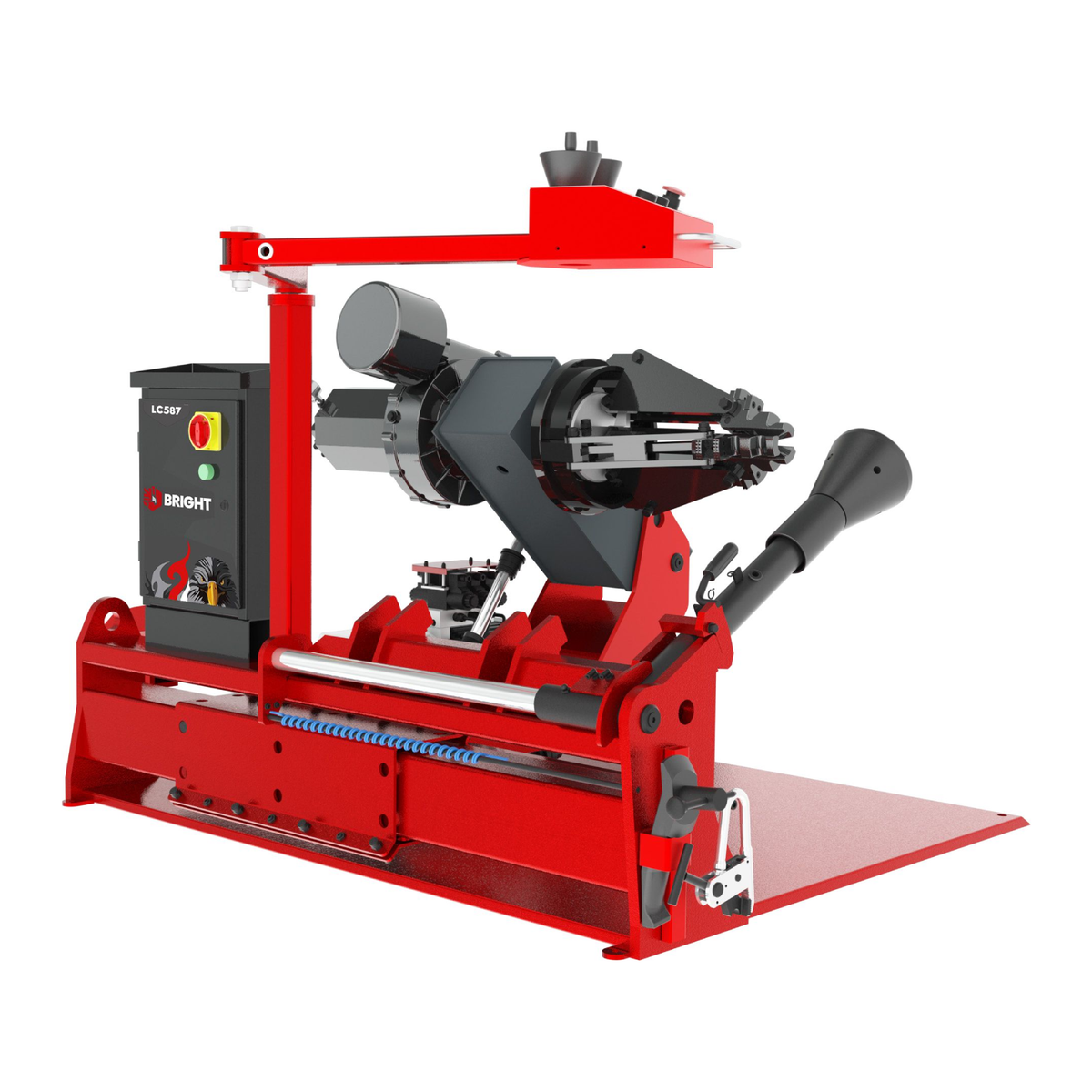

BRIGHT LC587
BRIGHT LC587
The world's first continuously variable transmission system, with
constant torque output function, always provide strong motivation;
For the first time, the automatic wheel lubrication system is
brought into the truck tire service field, so that the lubrication is
always service for the machine
Continuous innovation and research and development, into the
cold mechanical structure of the soul of science and technology,
130 - 150 bar
Let the operator feel more convenient technology.
constant torque output function, always provide strong motivation;
For the first time, the automatic wheel lubrication system is
brought into the truck tire service field, so that the lubrication is
always service for the machine
Continuous innovation and research and development, into the
cold mechanical structure of the soul of science and technology,
130 - 150 bar
Let the operator feel more convenient technology.
1600 MM
14" - 26"
1000 MM
130 - 150 bar
BRIGHT LC587
Concentrate on truck tire service for 15 years, non-stop
improving and updating, Now it becomes professional
equipment for truck and bus tires.
Technical Data
Rim diameter
14” - 26”
Rim width
1000 mm
Max wheel diameter
1600 mm
Max wheel weight
1000 kg
Working pressure
130 - 150 bar
Pump station motor power
1.5 kW
Spindle motor power
1.2 kW
Rotation per minute
0 ~ 9 rpm
Voltage
220V / 50 / 60Hz / 1P
Noise
75 dB
Net weight
680 kg
With continuously variable transmission system, constant torque output 2800N.m, strong power, improve work efficiency;
Movable spindle structure, shorten the moving distance of the support plate, and reduce 12% with the same grade products floor area
Hydraulic control system, reliable clamp, stable movement
Hanging console, portable, in the process of operation can achieve a full range of view
Check and prevent the danger caused by misoperation
Minimum center hole φ90mm, suitable for all kinds of truck rims
With automatic wheel lubrication system, easy to operate, improve work efficiency
