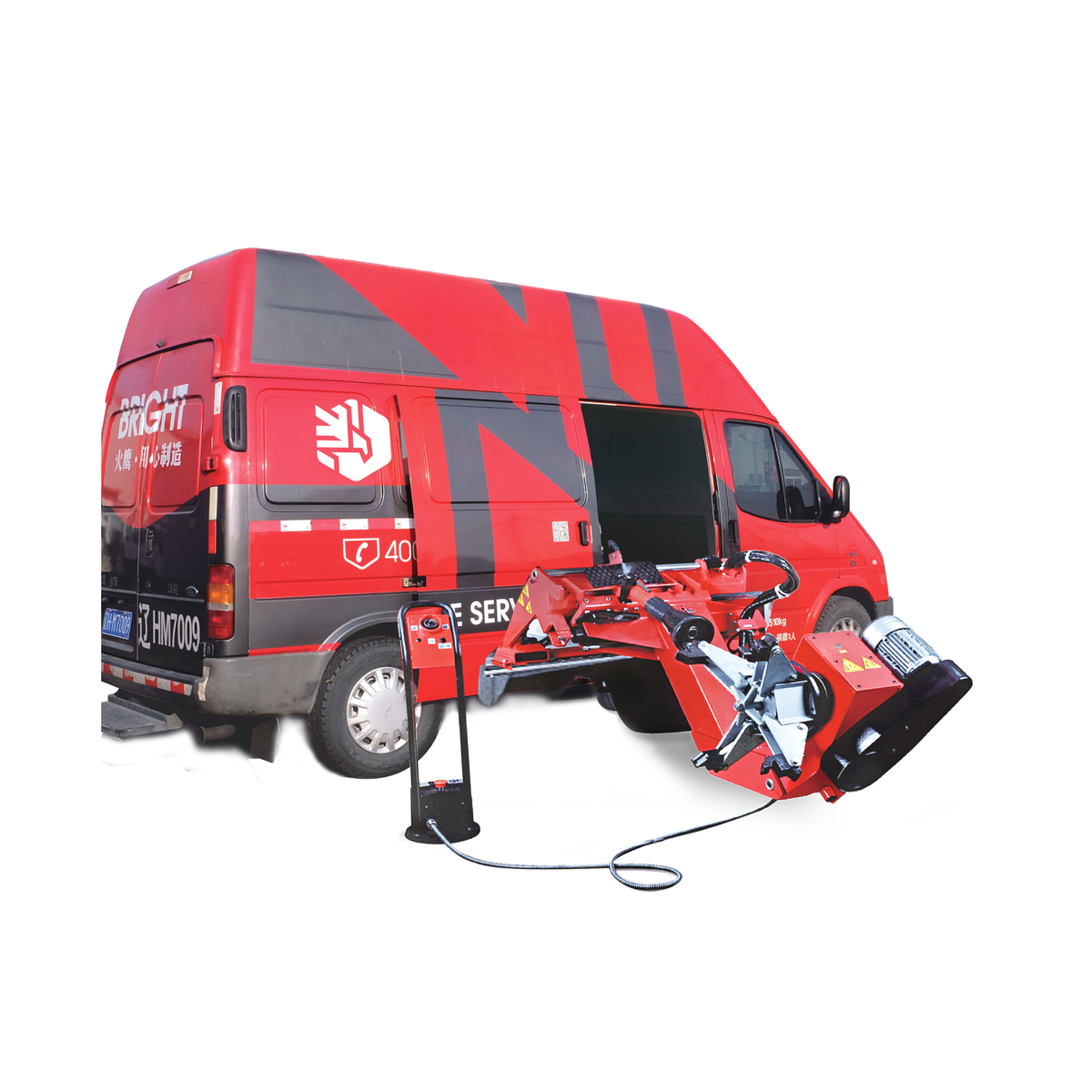

BRIGHT LC589/MT26 - Mobile truck solutions
BRIGHT LC589/MT26 - Mobile truck solutions
1400 MM
13-26”
600 MM
130 - 150 bar
BRIGHT LC589/MT26 - Mobile truck solutions
The new model of physical shop plus mobile shop, much easier to obtain more
customers’ information and potential customers from the new channel, we firmly believe
that the mobile service will change the pattern of market, and also makes people live
happier and travel easier.
Private customized project
- T1－mobile solution
(According to the structure of the truck, provide you with the whole tire service solution of truck that can be used in the vehicle) - T2－container style solution
(Can be hoisted in the truck's mobile shop)
- T3－Customized solutions
(Based on your requirements, we ask the designing team to give you the solution you need.)
Technical Data
Rim diameter
13” - 26” inch
Rim width
600 mm
Max. wheel diameter
1400 mm
Hydraulic system working pressure
130 - 150 bar
Hydraulic Station motor Power
1.1kW/380V/50HZ/3PH
Main Shaft motor Power
1.1kW/380V/50HZ/3PH
Noise
≤75dB
Packing dimension
1690×1140×1650 mm (MT589), 1800×1140×1900 mm (MT26)
Net weight/Gross weight
510/550 kg
Loading in 20/40 foot container
7/14 sets
Small size and light weight(520kg)makes the van can load more repair tools and tires.
The tool can retract back into(19 seconds) and extend out (23seconds)of the van to make the effective of mounting and demounting of tire same to the workshop.
The small pedal chassis designed by Italy, with good structure and spotting function, which can be parked at any position and convenient for clamping the wheel rim
Equipped with emergency manual pump to ensure it can be pull back without power supply. It has dead lock device, all valves have different color. Whole emergency operation can be done by only one person.
Three position on bead breaker arm, convenient to choose suitable position.
