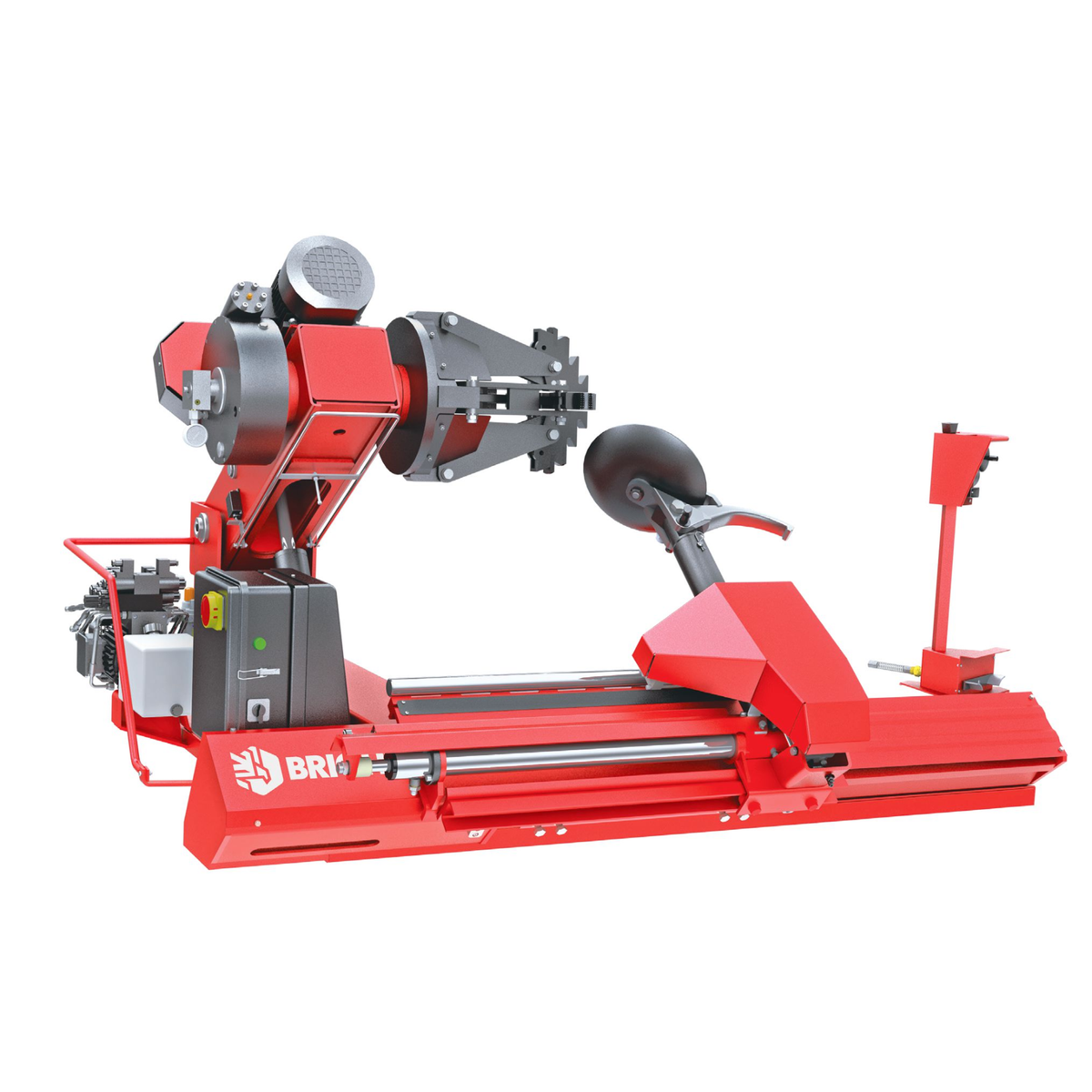

BRIGHT LC590
BRIGHT LC590
2200 MM
14" - 56"
1100 MM
130 - 150 bar
Meet CE requirement, totally safe during operation.
Meet CE requirement, totally safe during operation.
BRIGHT LC590
Enjoy automatic tyre changing process , extra large size,
makes the service easy. High horsepower driven source
and stronger transmission system, the powerful assistant
for the professional tire manufacturer.
Technical Data
Rim Diameter
14” - 46” inch
Rim range with extension
46 - 56” inch
Rim width
1100 mm
Max wheel diameter
2200 mm
Hydraulic Power
130 - 150 bar
Hydraulic Station Motor Power
1.5kW 380V/3PH 50HZ
Main Shaft Motor Power
2.4/3.0kW/380V/50HZ/3P
Noise
＜75dB
Packing dimension
2280 × 2070 × 1070 mm
Net Weight / Gross Weight
987 / 1252 kg
Loading in 20/40 Ft. container
4 / 10 sets
Meet CE requirement, totally safe during operation.
The lifting arm oil tank is equipped with double safety protection which improves the safety of operation.
Fully automatic tire changer adopts pneumatic and hydraulic power control system to improve working efficiency, labor saving.
The hydraulic pump station adopts imported components with stable performance.
The gearbox is made of aluminum alloy die casting, with light weight, beautiful appearance, high intensity and good sealing performance.
Movable operating unit can be fully observed during operation to prevent danger from misoperation.
Dual speed main shaft motor can improve the working efficiency.
