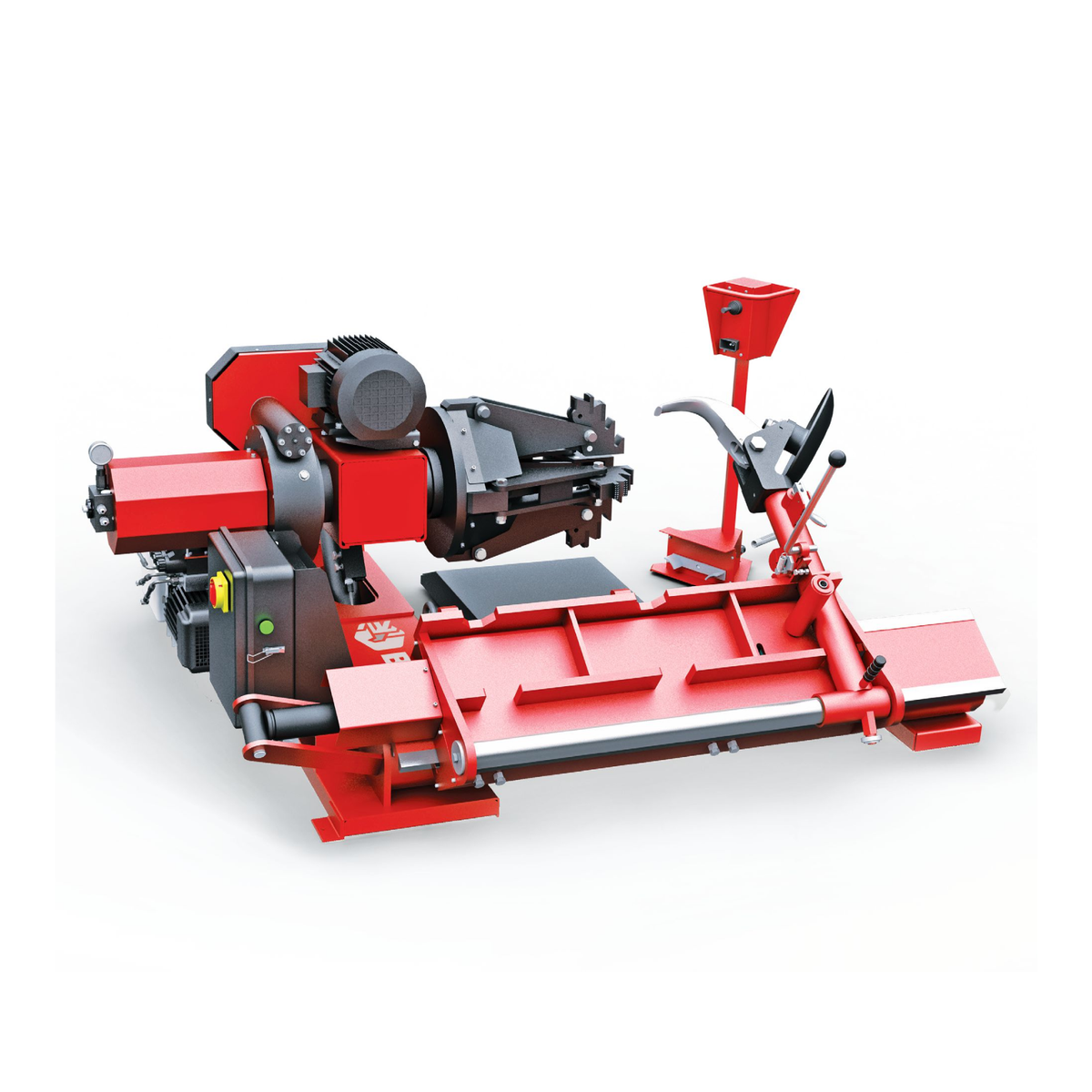

BRIGHT LC590 D
BRIGHT LC590 D
Simple configuration, firm and durable design, continue the
high-performance feature of 590 series, simplified operation mode,
increase the interaction between the operator and product, which
make the operator clearly feel the pleasant to conquer the monster.
high-performance feature of 590 series, simplified operation mode,
increase the interaction between the operator and product, which
make the operator clearly feel the pleasant to conquer the monster.
2200 MM
14" - 56"
1100 MM
130 - 150 bar
BRIGHT LC590 D
High horsepower driven source, stronger transmission
system, the powerful assistant for the professional tire
manufacturer
Technical Data
Rim Diameter
14” - 46” inch
Rim range with extension
46” - 56” inch
Rim width
1100 mm
Max wheel diameter
2200 mm
Hydraulic Power
130 - 150 bar
Hydraulic Station Motor Power
1.5KW 380V/50HZ/3P
Main Shaft Motor Power
2.4KW 380V/50HZ/3P
Noise
＜75dB
Packing dimensions
2280 × 2070 × 1070 mm
Net Weight/Gross Weight
891/1152 kg
Loading in 20/40 Ft. container
4/10 sets
Adopt hydraulic control system , rim clamping reliable ,moving stable. Hydraulic station adopted imported components, with stable performance
Meet CE requirement, totally safe during operation.
The lifting arm oil cylinder is center support, bear averaged pressure.
Movable operating station can be fully observed during operation to prevent danger by misoperation.
The gearbox is made of aluminum alloy die casting, with light weight, beautiful appearance, high intensity and good sealing performance.
The electric cabinet adopted CE level protection standard.
Lifting arm and the base are made of strengthened and thickened metal, with high intensity.
