BRIGHT M806 B
Suitable
Optional
Unsuitable
MOTORCYCLES GARAGE SERIES
BRIGHT M806 B
BRIGHT M806 B
Serving for high-emission motorcycle at least 20
years, suitable for motorcycle tires with large-size
brake pads.
years, suitable for motorcycle tires with large-size
brake pads.
960 MM
--
6"-24"
3"-12"
8-10 bar
6,5 rpm

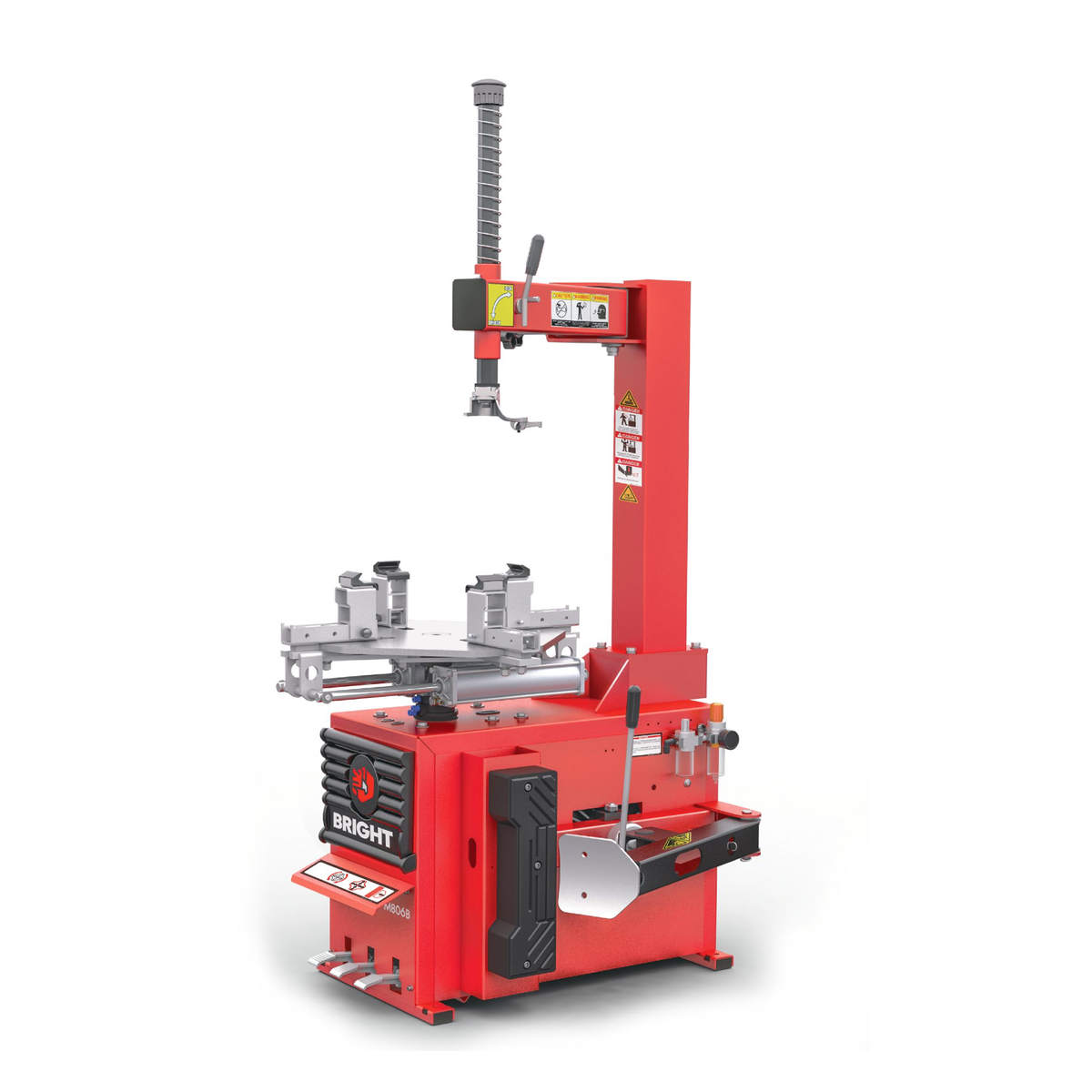

BRIGHT M806 B
Serving for high-emission motorcycle at least 20 years, It keeps
development and innovation. Specialized demount head, special
machine body and clamps which suitable for motorcycle tyres
with large-size brake pads. Now it has been used in Harley-Davids-
on shops, DUCATI shops and Honda motorcycle shops.
Technical Data
Outside clamping range
6” - 24” inch
Rim width
3” - 12” inch
Max wheel diameter
960 mm
Working pressure
8 - 10 bar
Bead breaking force
2500 kg
Powers supply
110V/220V/380V
Motor Power
1.1/0.75Kw
Rotation per minute
6.5rpm
Noise
<70dB
Machine dimensions
1100×1200×1950 mm
Packing dimensions
980×810×870 mm
Net weight
179 kg
Gross weight
212 kg
Loading in 40 Ft. container
72 sets
Demounting head is made of special material, with lifetime warranty.
Standardly equipped with small and normal motorcycle demounting heads, which can meet the requirement of scooter tyres and normal motorcycle tyres.
The Italian-designed small pedal , the clamp can be stopped at any position so it is convenient to clamp the rim.
Drawer type pedal assembly is easy to disassemble when it needs to be serviced or repaired.
The bead breaker system is delicate designed to make operation more reliable. The rubber pad becomes thicker to ensure it is possible to demount motorcycle tyres with brake pads.
Optional equipped with upper assist arm 230
