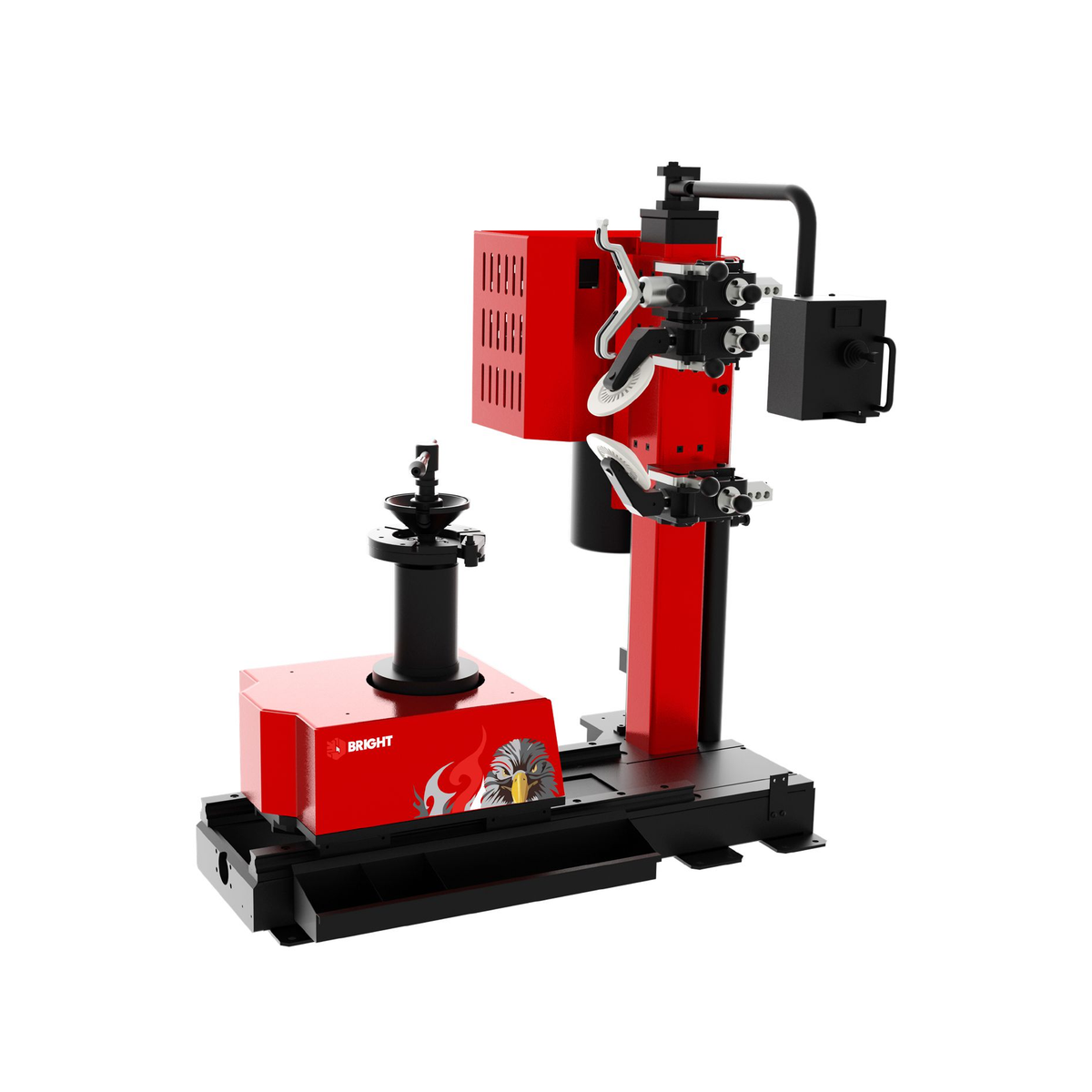

BRIGHT MH23
Suitable
Optional
Unsuitable
BRIGHT MH23
BRIGHT MH23
850 MM
12" - 23"
3"-12"
1100 MM
1" - 28"
70 kg
1,5" -20"
Technical Data
Rim diameter
10" - 25"
Tire width
3" - 12"
Maximum wheel diameter
900 mm
Working pressure
2 MPa - 15 MPa
Spindle power
800 W
Lifting speed
6 - 8 s
Rotating speed
7.5 - 14 r/min
Voltage
DC 48V
Weight
255 kg
Outline dimensions
1024 × 768 × 1114 mm
The world's first vehicle-mounted crowbar-free tire changer
crowbar-free tire changer saving time, labor and many applications
DC battery drives energy saving and environmental rotection
Equipped with pneumatic auxiliary arm, it is easy to operate and can meet the requirements of flat and explosion-proof tires
The hydraulic cylinder is used to drive the tire removal effectively, and the tire and rim are not damaged
Vehicle-mounted hydraulic tire expander, patented technology, safe and reliable
