LIFT LINE SERIES

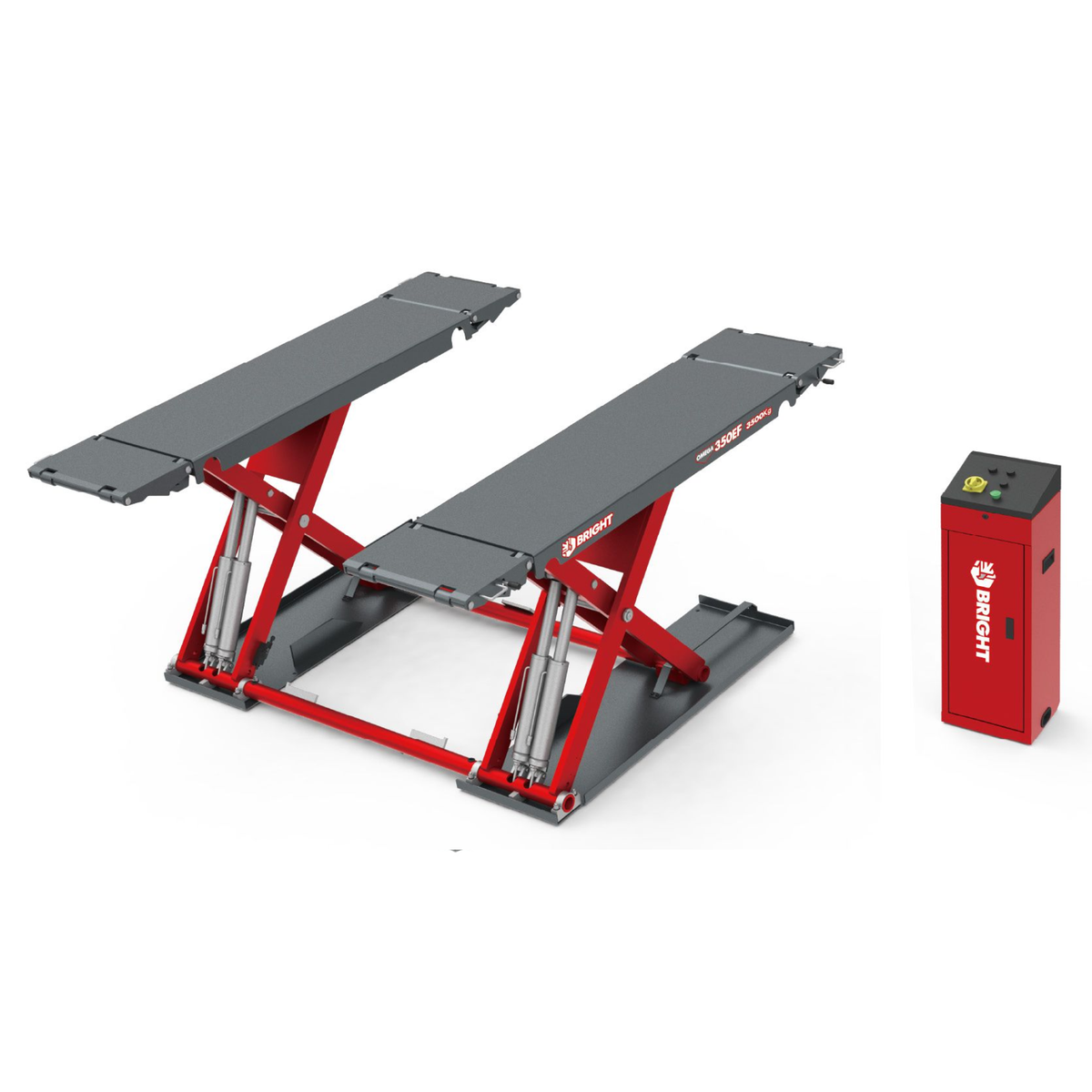

BRIGHT OMEGA 350EF
BRIGHT OMEGA 350EF
Low profile
scissor lift
3500
KG
L 2010mm W 480mm
MOBILE MID-RISE SCISSOR LIFT 3.5T DUAL INDEPENDENT CYLINDER DRIVEN WITHOUT MECHANICAL LOCK
OMEGA 350EF
1
Technical Data
Lifting capacity
3500kg
Total platform width
2058mm
Lifting time
40s
Motor power
2.2kW
Lifting height
980mm
Power requirements
220V/380V
Minimum height
110mm
Gross weight
690kg
Platform length
1400mm
Platform width
480mm
Package size
2000×1600×215mm
Accessory size
1105×380×533mm
Mobility accessories enable labor saving transition for the lift ;
1940MM widened platform suitable drive on for multiple vehicle types extended flaps to support long wheel base vehicles ;
All joint bearings are featured with grease point for lubrication promotes smooth operation.
Standard anti-roll feature prevent lift rolling over, optional foot guards;
