LIFT LINE SERIES

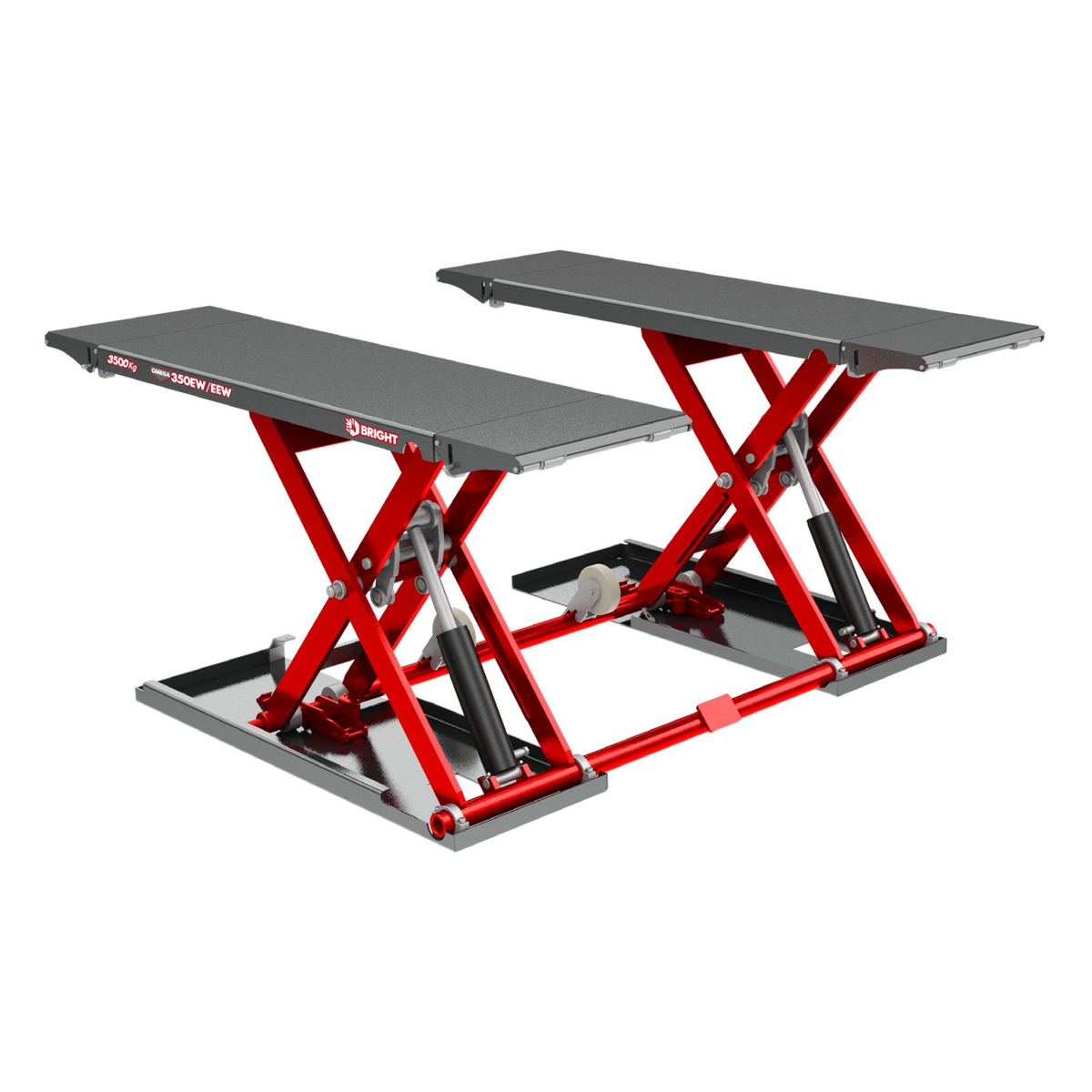

BRIGHT OMEGA 350EW/350EEW
BRIGHT OMEGA 350EW/350EEW
Low profile
scissor lift
3500
KG
L 2000mm W 530mm
MOBILE MID-RISE SCISSOR LIFT 3T EQUIPPED WITH TWO SIDE MECHANICAL SAFETY LOCK ELECTRIC UNLOCKING
OMEGA 350EW
1
L 2000mm W 530mm
MOBILE MID-RISE SCISSOR LIFT 3T EQUIPPED WITH TWO SIDE MECHANICAL SAFETY LOCK PNEUMATIC UNLOCKING
OMEGA 350EEW
2

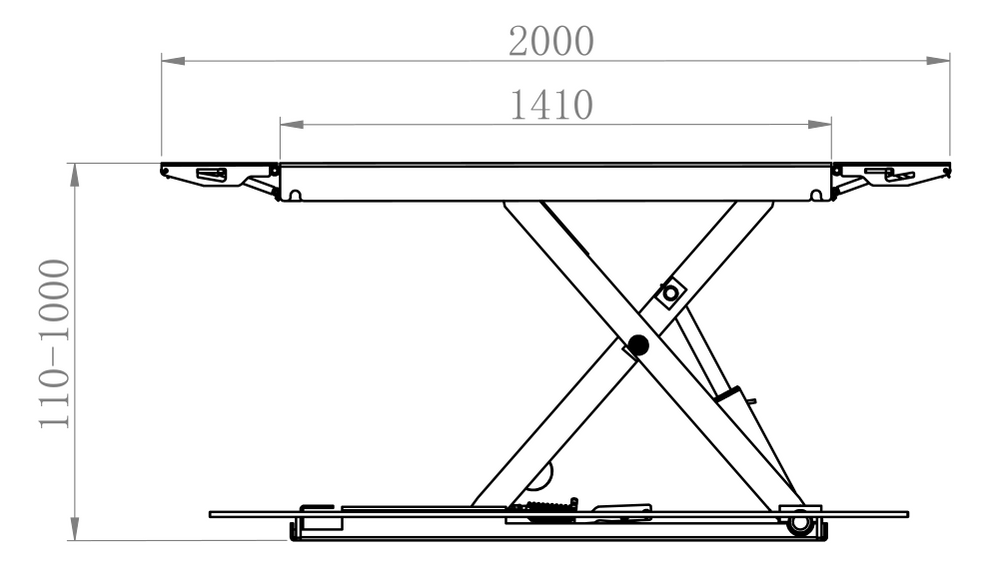

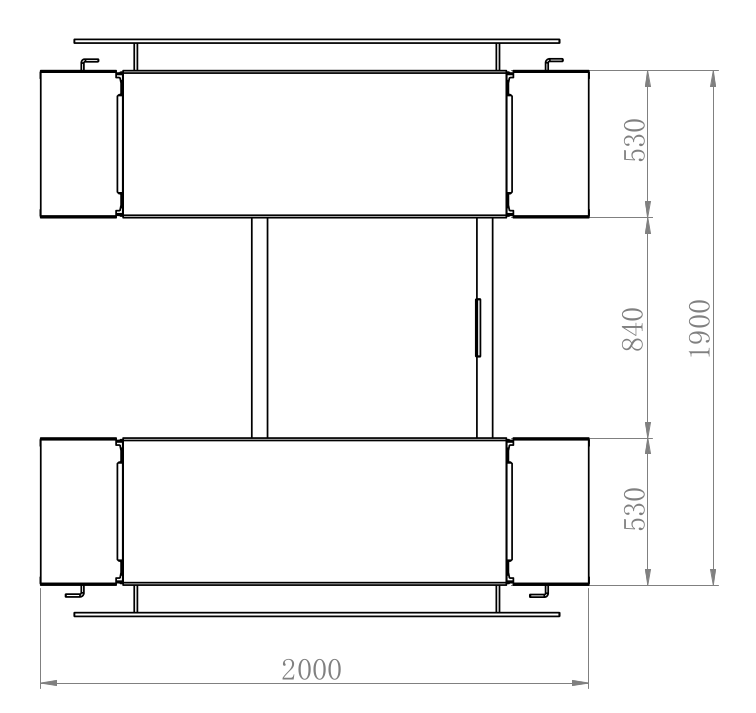

Line Drawing
Technical Data
| 300EW | 300EEW | |
|---|---|---|
| Lifting capacity | 3500kg | 3500kg |
| Total platform width | 1900mm | 1900mm |
| Lifting time | 30s | 30s |
| Motor power | 2.2KW | 2.2KW |
| Lifting height | 1000mm | 1000mm |
| Power requirements | 220V/380V | 220V/380V |
| Minimum height | 110mm | 110mm |
| Gross weight | 600kg | 600kg |
| Platform length | 1410mm | 1410mm |
| Platform width | 530mm | 530mm |
| Package size | 2000*1530*230mm | 2000*1530*230mm |
| Accessory size | 1150*530*430mm | 1150*530*430mm |
| Unlock pattern | Pneumatic unlocking | Electric unlocking |
Double cylinder drive, mechanical synchronized structure, ensuring platform synchronization;
Pneumatic unlocking, convenient and durable, Electric unlocking optional;
The labor-saving movable mechanism design, easy to move, is available as optional;
With the strengthen arm design, and the lifting is more stable;
All connecting shafts are equipped with grease injection holes to ensure smooth movement in operation;
Effectively preventing the lift from overturning;
The foot guard rail can be optional;
24V safe control to ensure the safety in use;
