LIFT LINE SERIES
BRIGHT PI 400
BRIGHT PI 400
Under-ground
small scissor lift
4000
KG
L 2085mm W 540

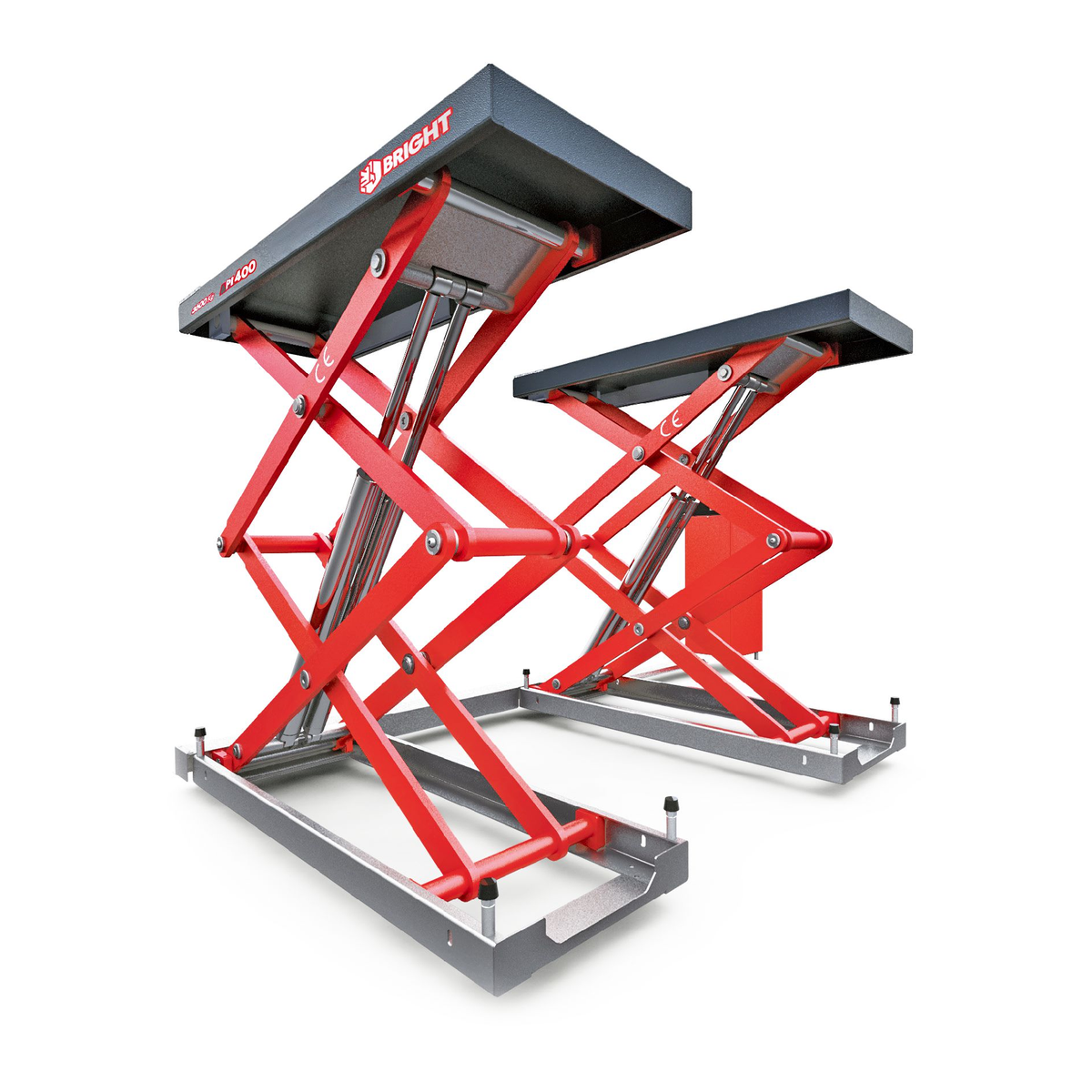

UNDERGROUND SMALL SCISSOR LIFT 4T
PI 400
1
Technical Data
Lifting capacity
4000kg
Lifting time
50s
Lowering time
50s
Motor power
3kW
Lifting height
2020mm
Minimum height
290mm
Total width
1880mm
Total weight
840kg
Package size (main body)
1550×650×760mm
Package size (control box)
1140×440×500mm
Global design patent.
Full load lifting from zero position. The lift is designed for easy installation and easy maintenance.
Nylon slide pads, long life-used, Maintenance free for its life time.
Each lift passes the test of 115% dynamic load and 150% static load, sae and reliable.
Bright’s lift is equipped with product liability insurance.
