LIFT LINE SERIES

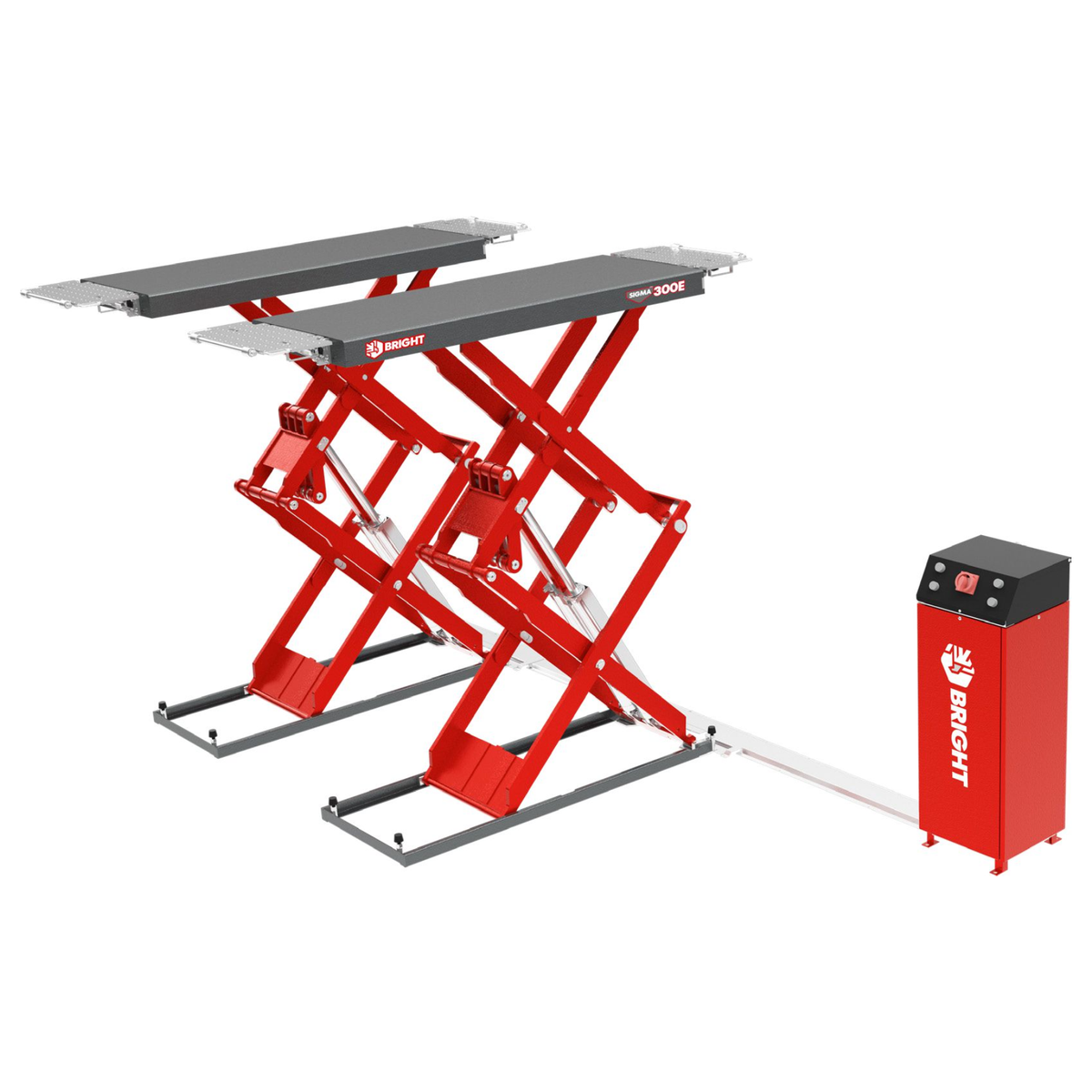

BRIGHT SIGMA 300E
BRIGHT SIGMA 300E
Ultra-thin
scissor lift
3000
KG
L 2128mm W 620
ULTRA THIN SCISSOR LIFT 3T WITH MECHANICAL LOCK STRUCTURE
SIGMA 300E
1
Technical Data
Lifting capacity
3000kg
Maximum lifting height
1930mm
Minimum height
105mm
Platform length
1540mm-2128mm
Platform width
620mm
Platform spacing
808mm
Lift time
45s
Motor power
2.2KW
Rated oil pressure / System pressure
230bar
Whole machine weight
850KG
Package size
1700*800*420mm
Surface installation
Widened platform is suitable for more models
The oil cylinder comes standard with built-in explosion-proof valve
The control system adopts computer intelligent control
One-button leveling mode is easy to operate
Passed 115% dynamic load and 150% static load test
